Navigation System (UEW) Wiring Schematics

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

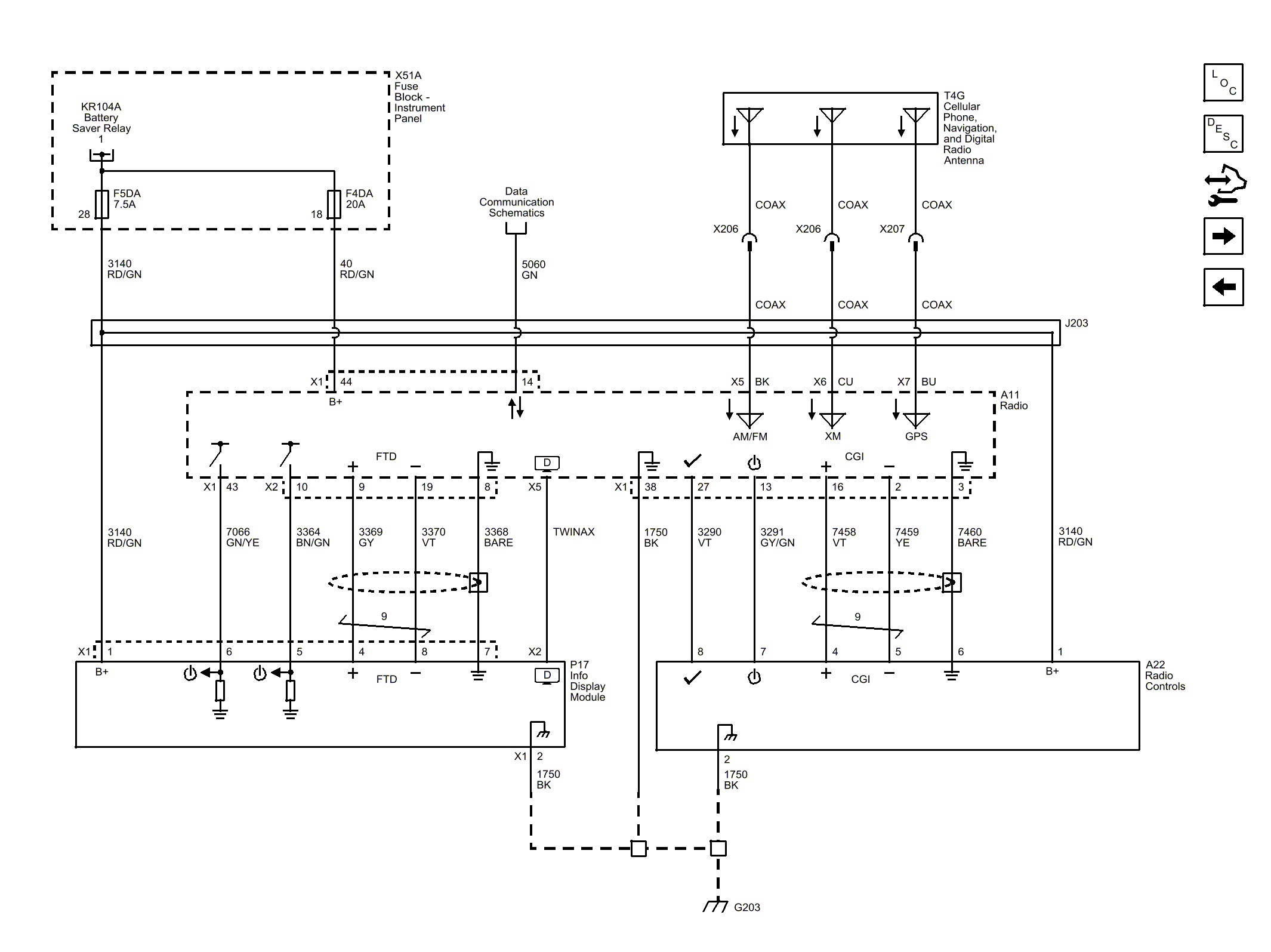

Fig 1: Navigation System (UEW) Wiring Schematic
GM3250286Courtesy of GENERAL MOTORS COMPANY
