Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

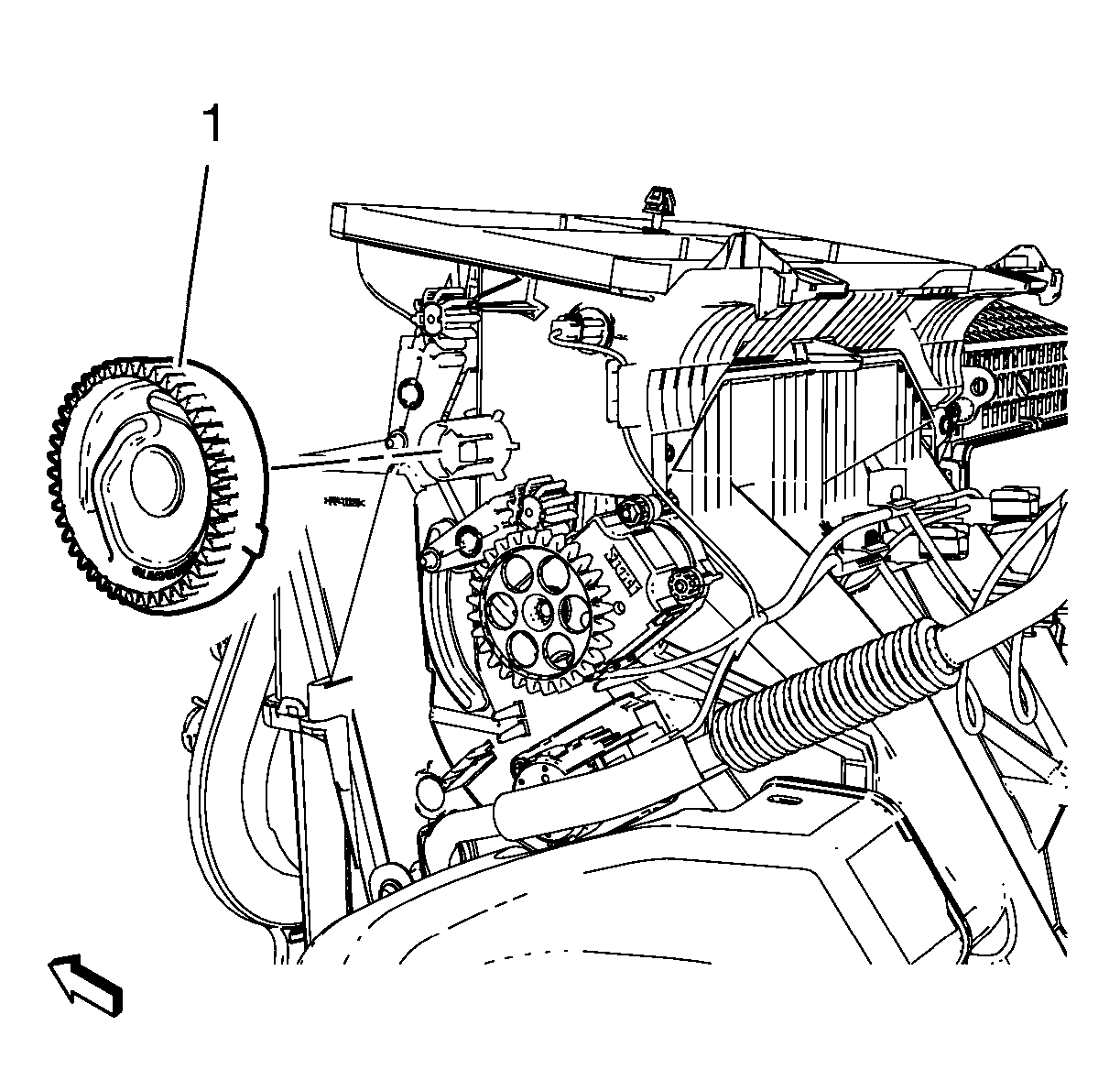

    Fig 1: Mode Control Cam
    GM2027962Courtesy of GENERAL MOTORS CORP.
    NOTE: The mode control cam can only be fitted in one position.
  1. Install mode control cam (1).

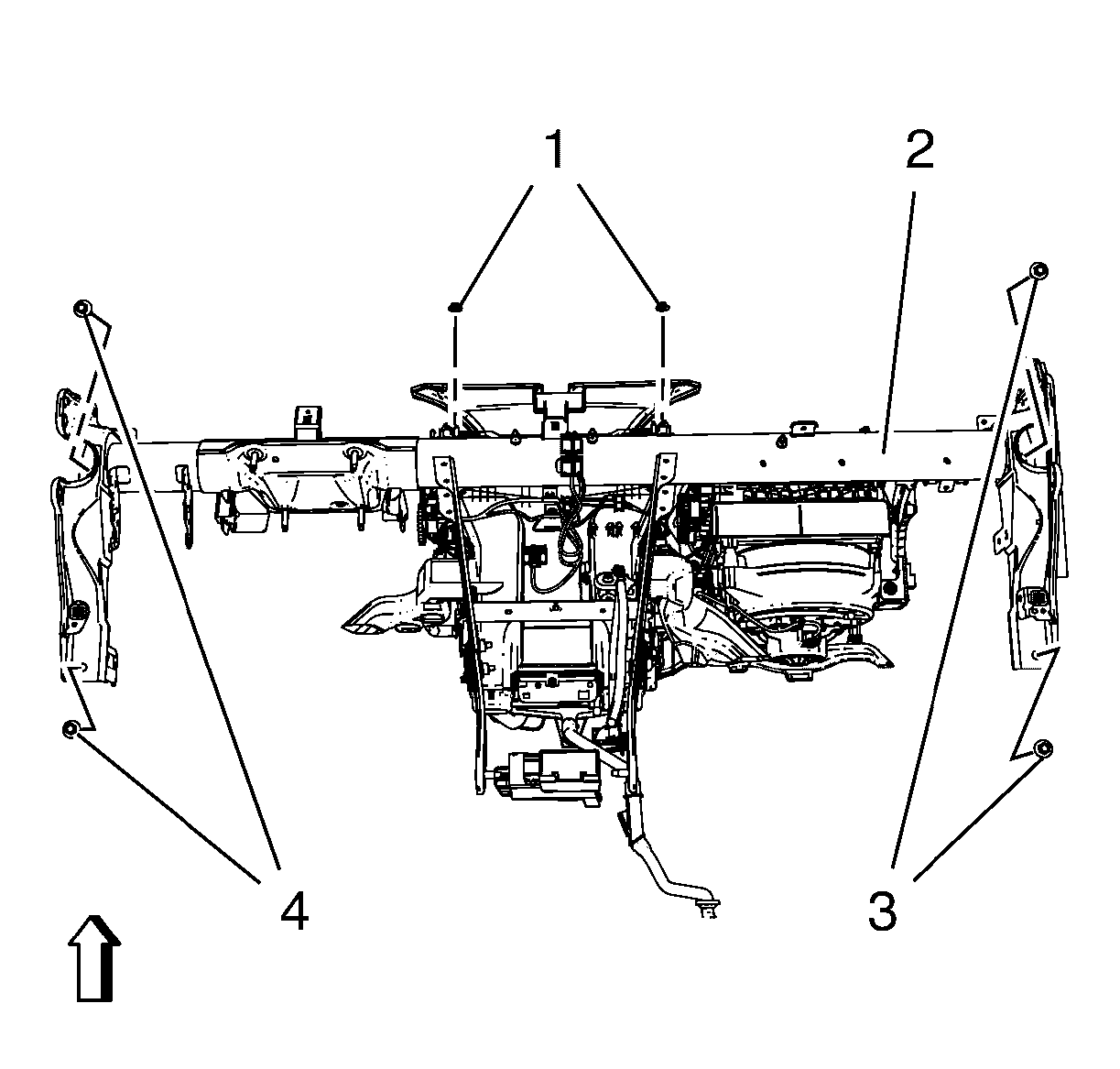

    2. Fig 2: Instrument Panel Tie Bar, Bolts And Nuts
    GM2027821Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install instrument panel tie bar (2).
    • Install 4 instrument panel tie bar bolts (3, 4) and tighten to 22 N.m (17 lb ft).
    • Install 2 instrument panel tie bar nuts (1) and tighten to 9 N.m (80 lb in).

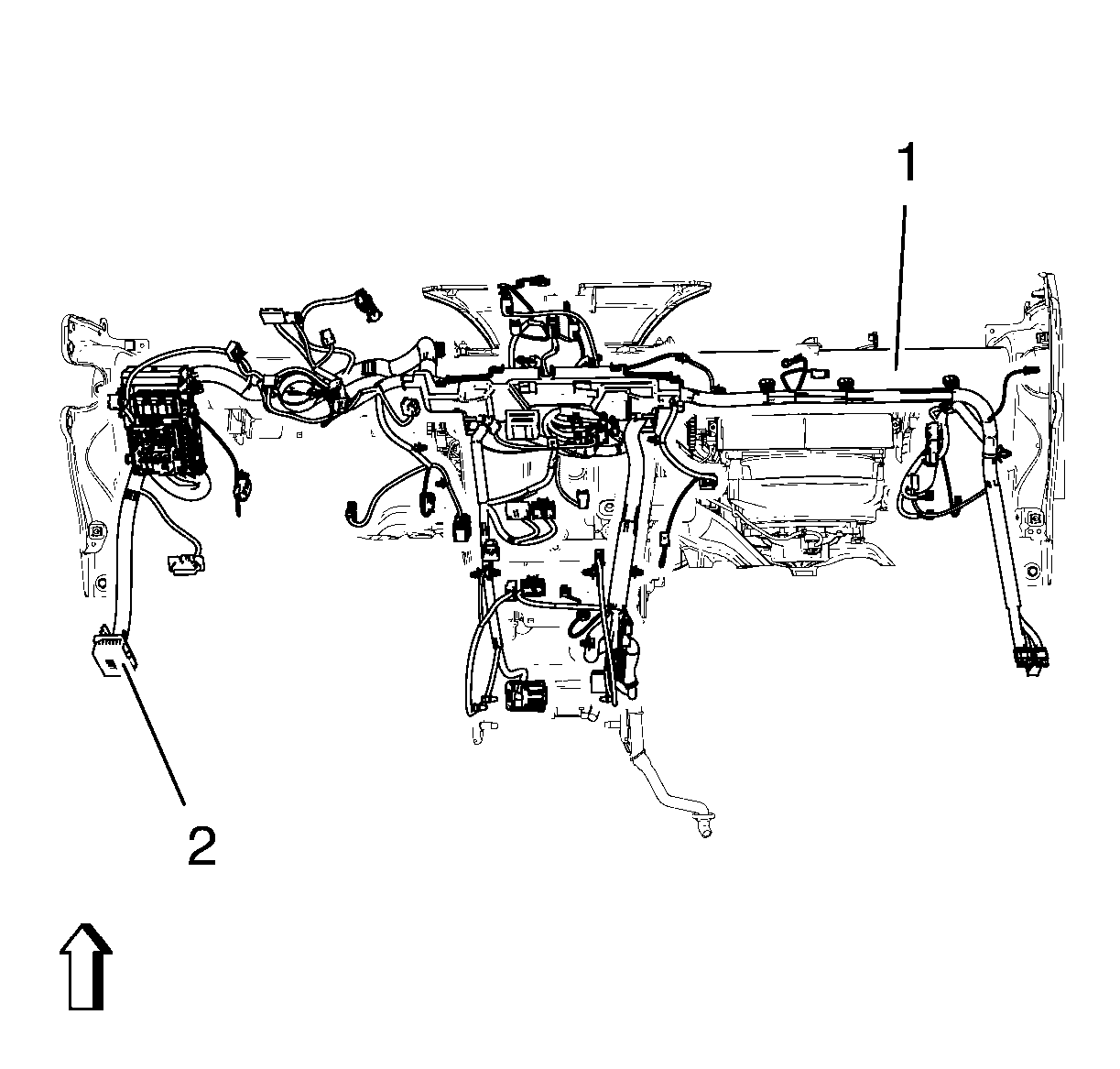

    3. Fig 3: Instrument Panel Wiring Harness And Instrument Panel Tie Bar
    GM2027818Courtesy of GENERAL MOTORS CORP.
  3. Install instrument panel wiring harness (2) from instrument panel tie bar (1).

    Connect electrical connectors.

  4. Install instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
