Release Systems Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

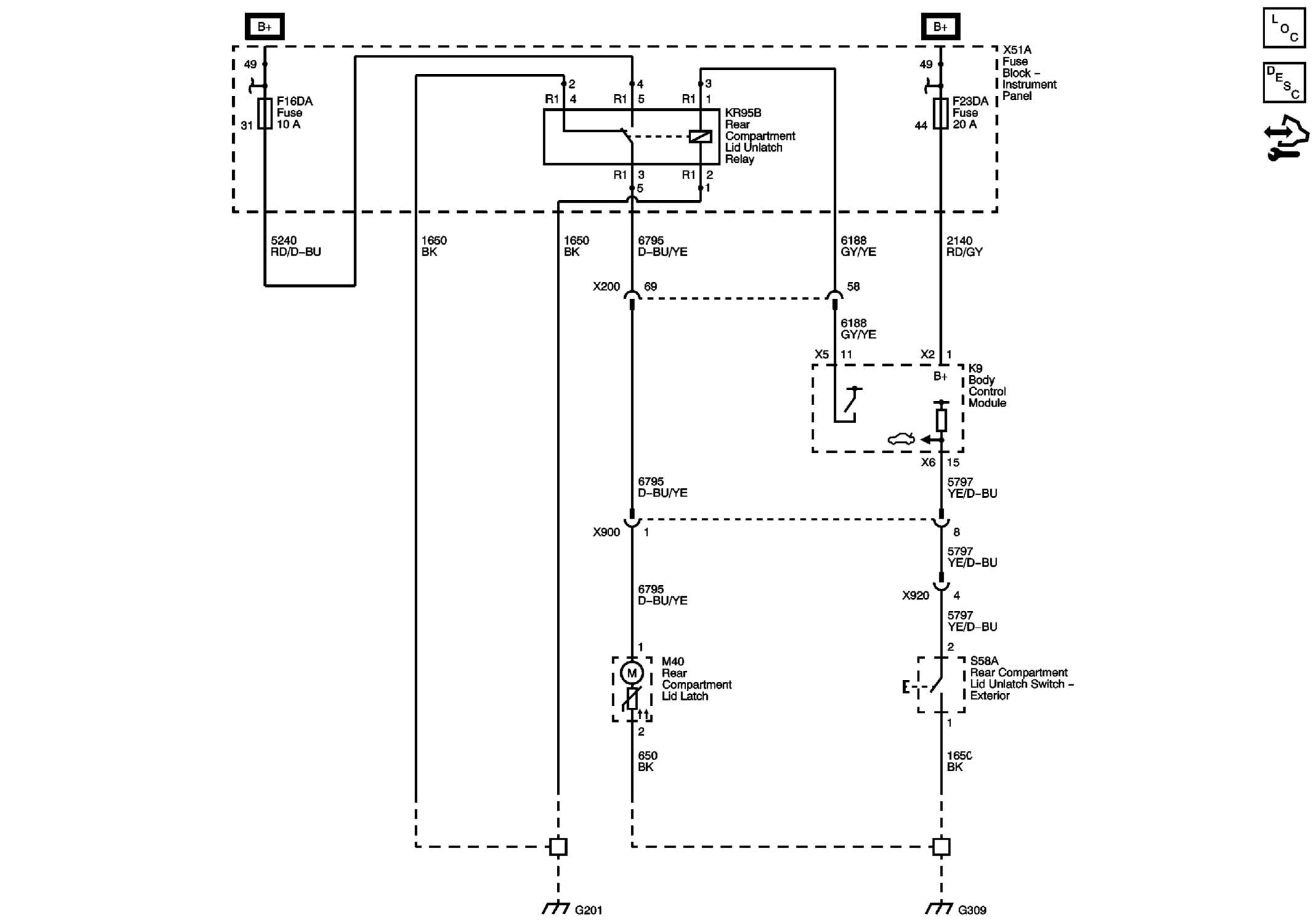

Fig 1: Trunk Release Systems Schematics
GM2458117Courtesy of GENERAL MOTORS CORP.
