Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

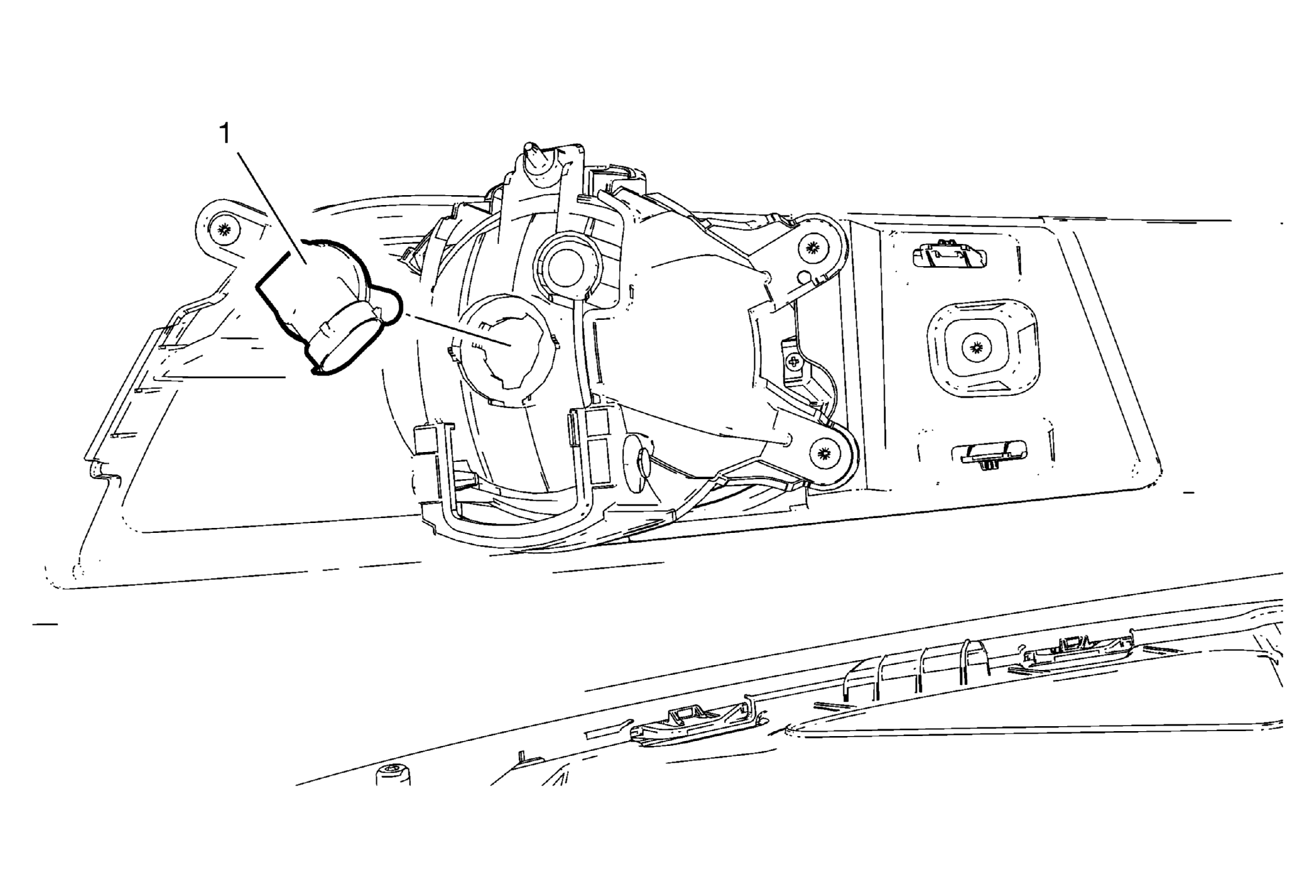

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the Front Bumper Fascia Opening Lower Cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise to remove from the lamp housing. Disconnect electrical connectors.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the Front Bumper Fascia Opening Lower Cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Rotate the bulb socket counterclockwise to remove from the lamp housing.
Disconnect electrical connectors.
