Trunk Release
Trunk Release

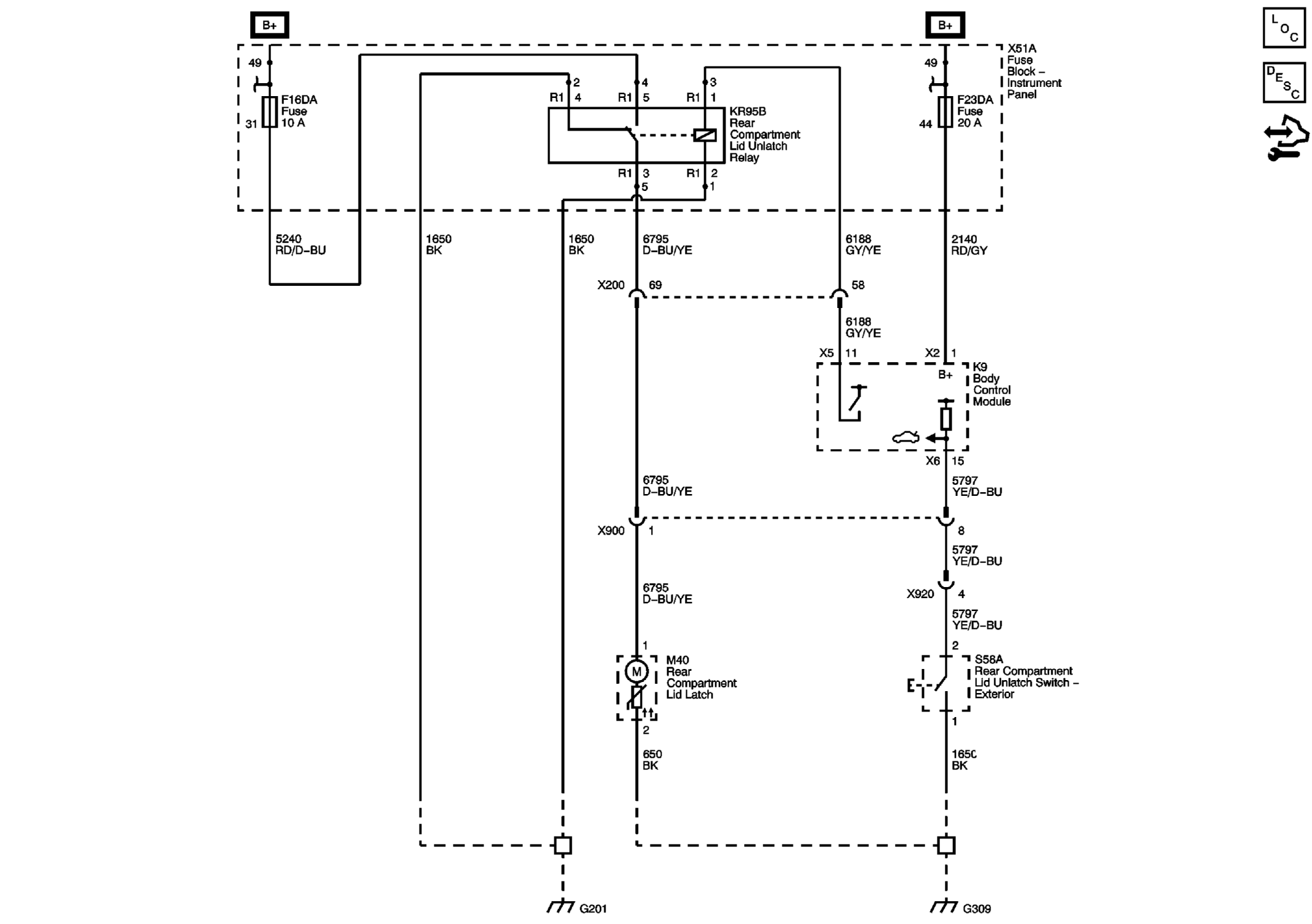

Fig 1: Trunk Release Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
