Door Handle Switches And References (ATH)

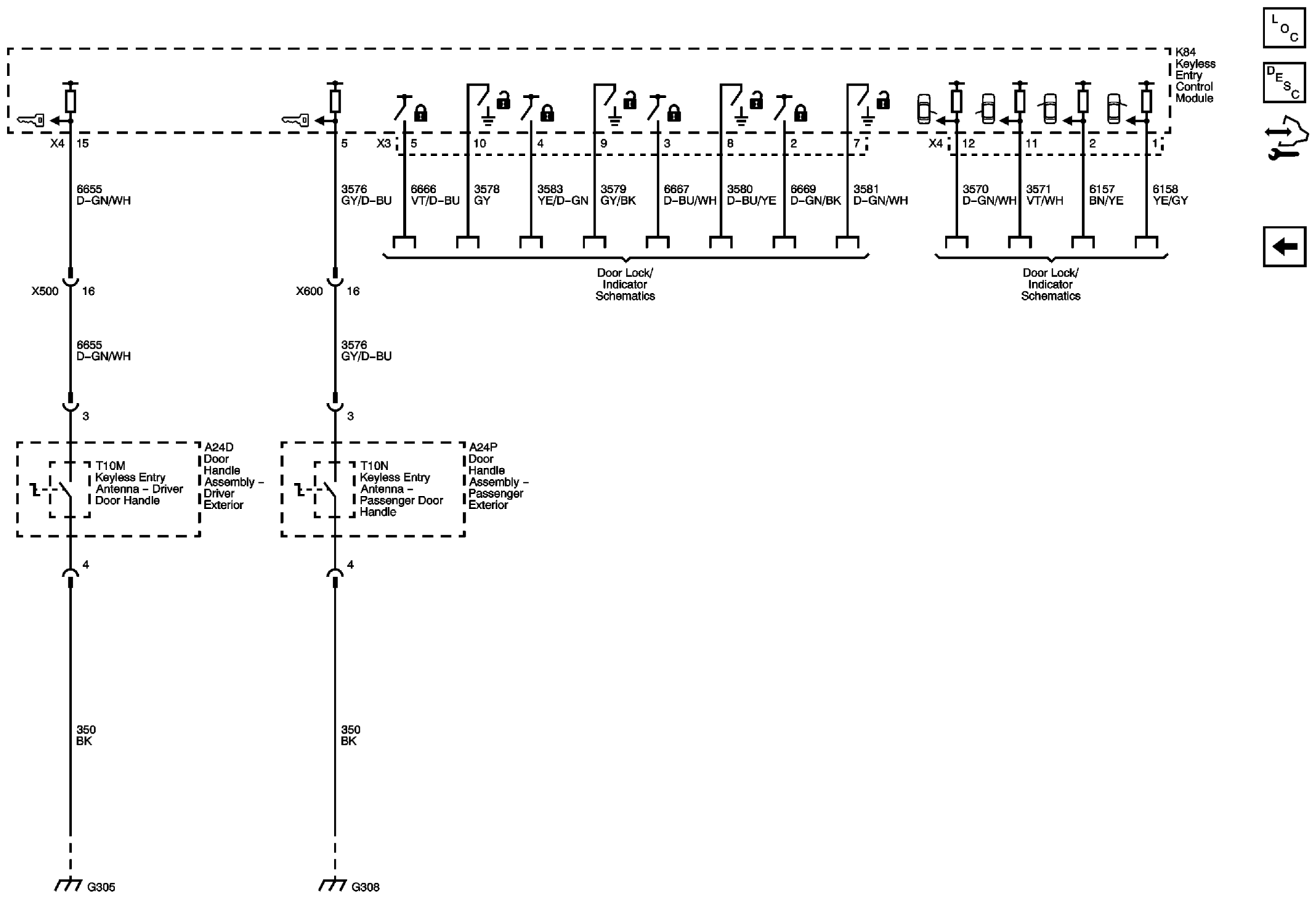

Fig 1: Door Handle Switches And References (ATH) Wiring Schematic

GM2760041

Courtesy of GENERAL MOTORS COMPANY
