Power, Ground, Serial Data, Microphone And Display
Power, Ground, Serial Data, Microphone And Display

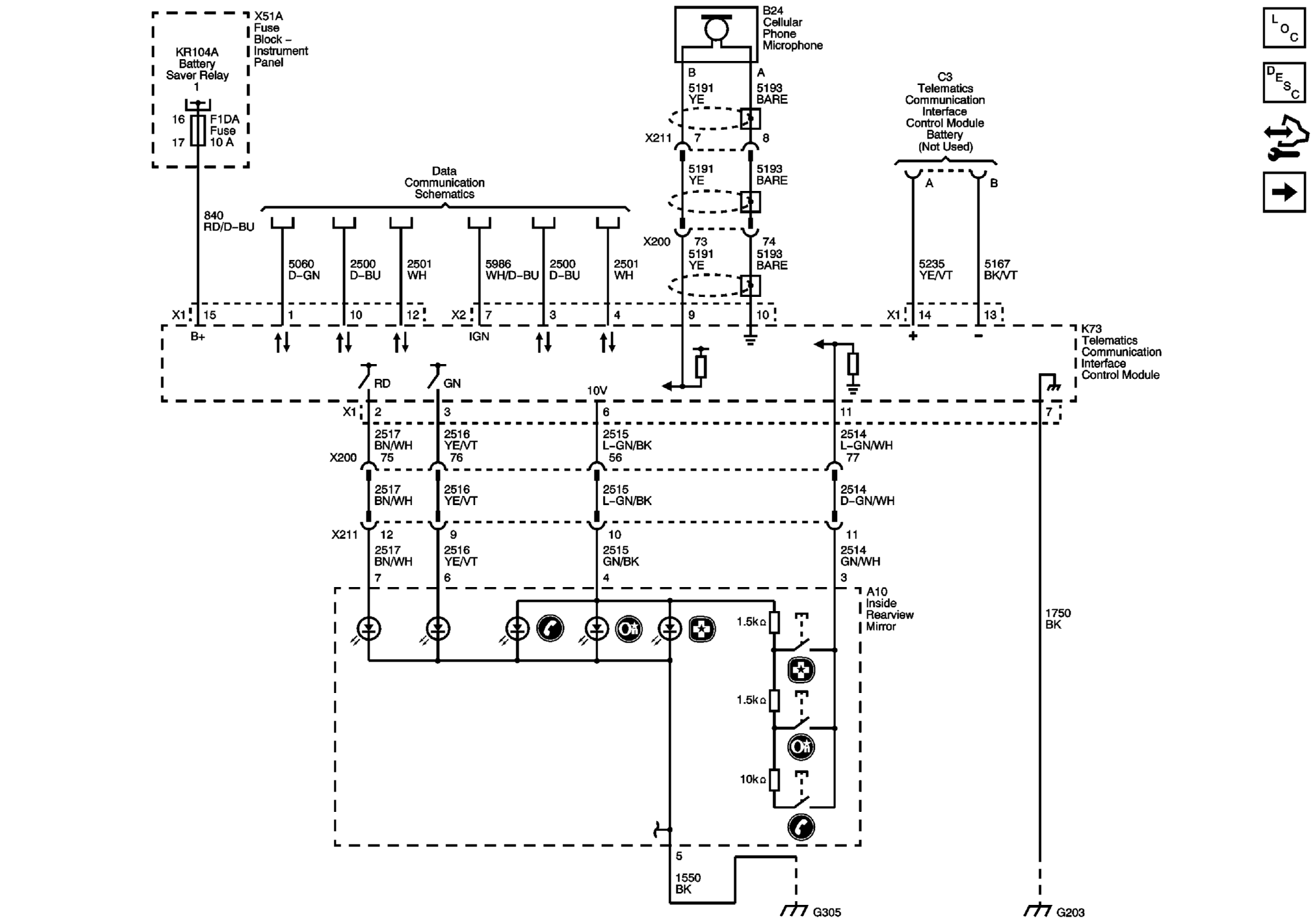

Fig 1: Power, Ground, Serial Data, Microphone And Display Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
