Power Steering Pump Pulley Replacement (LS9)

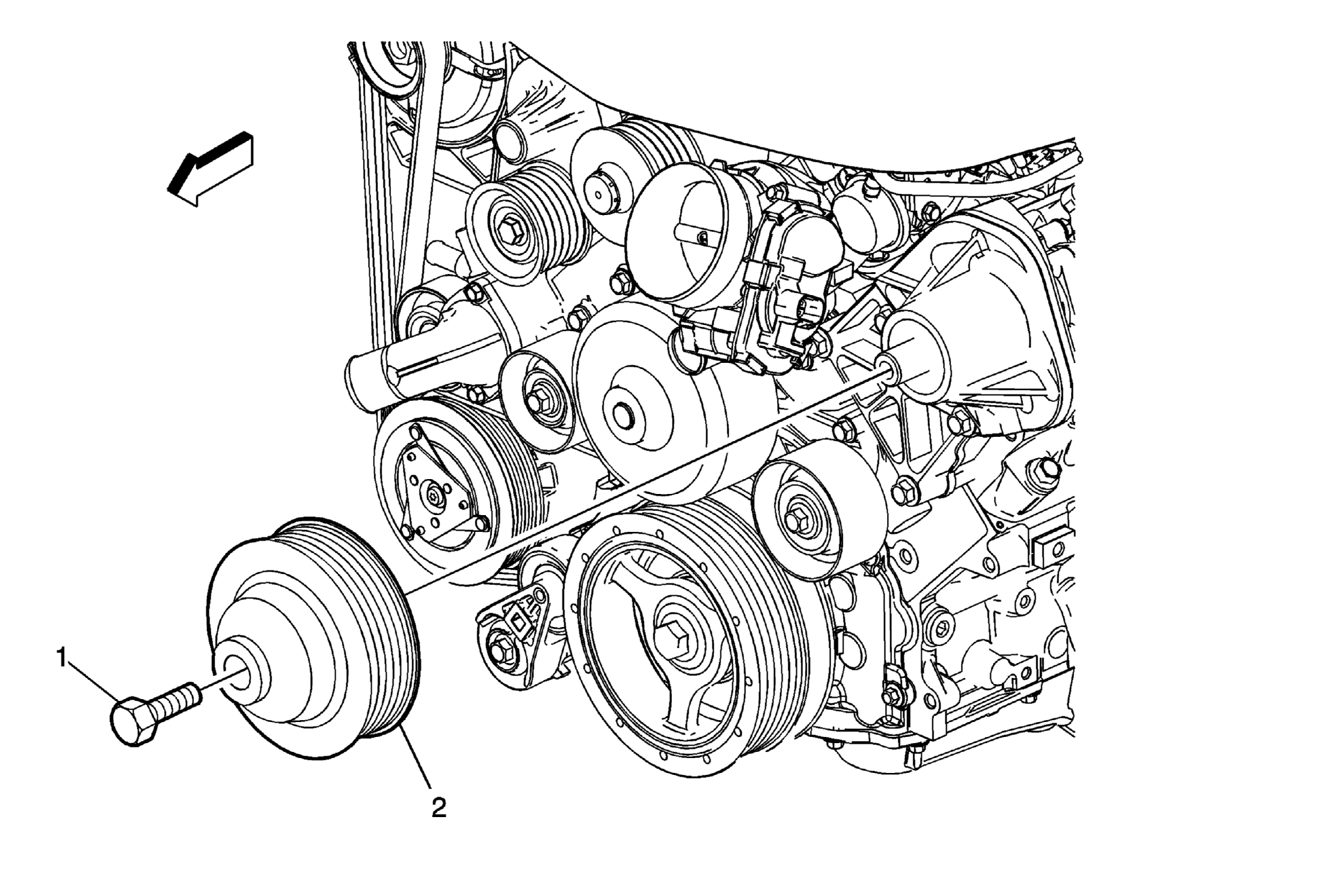

Fig 1: View Of Power Steering Pump Pulley (LS9)
GM2146236Courtesy of GENERAL MOTORS COMPANY
Power Steering Pump Pulley Replacement (LS9)

Callout Component Name
1 Power Steering Pump Pulley Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
2 Power Steering Pump Pulley
