Installation Procedure

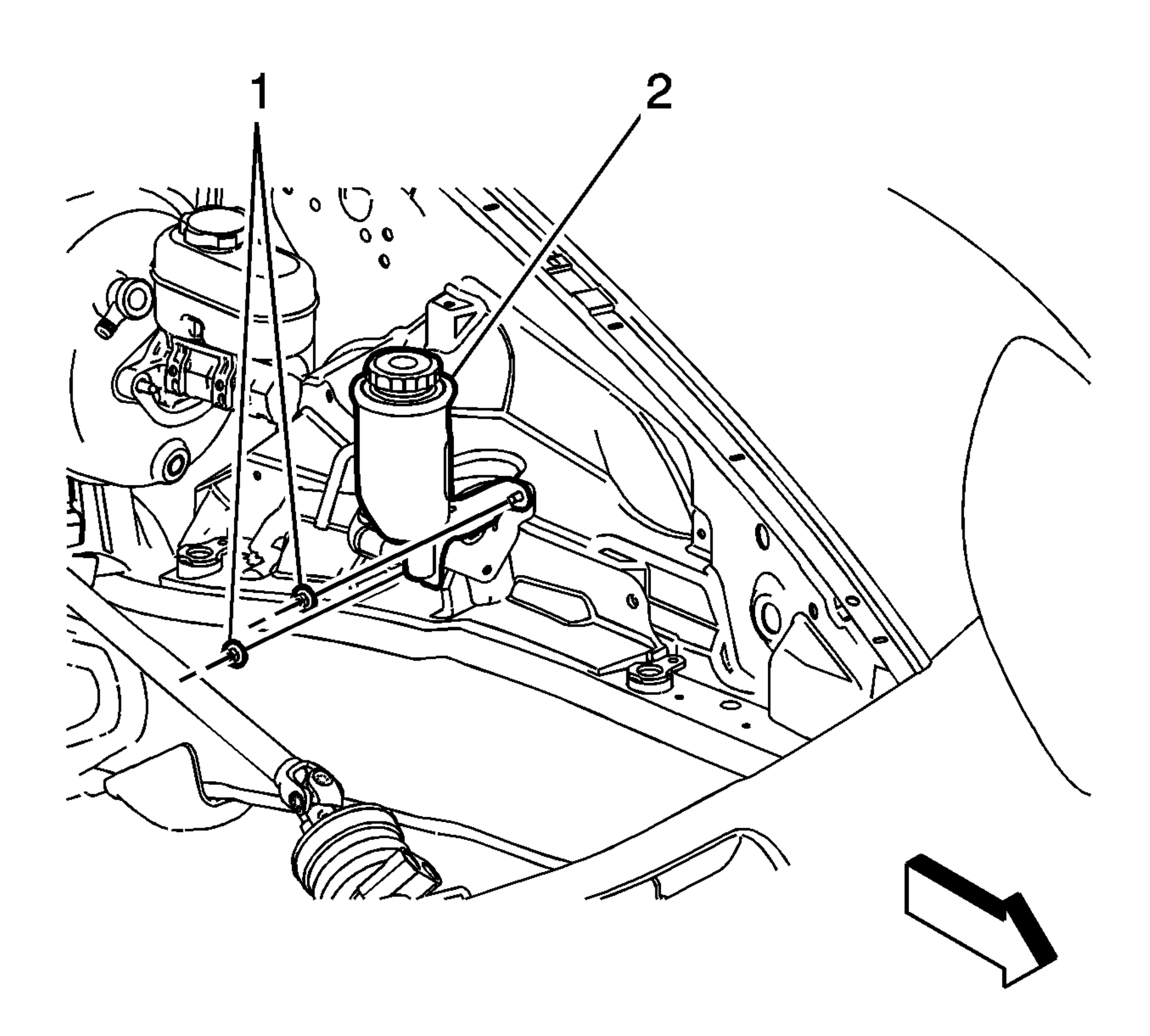

    Fig 1: Identifying Power Steering Fluid Reservoir & Nuts
    GM2132662Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the remote power steering fluid reservoir (2) to the vehicle.
  2. Install the remote power steering fluid reservoir nuts (1) and tighten to 9 N.m (80 lb in).

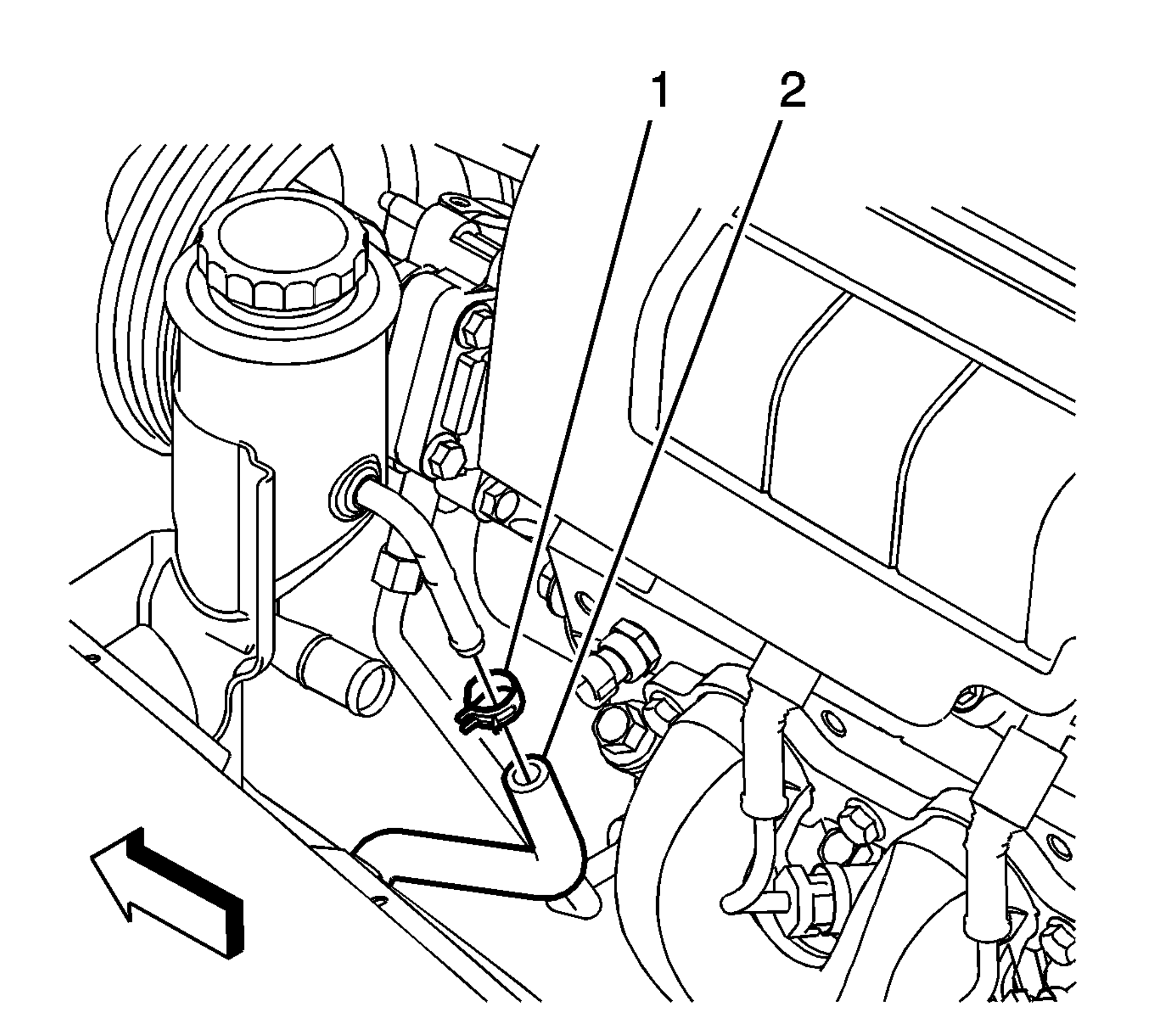

    3. Fig 2: Identifying Power Steering Fluid Cooler Hose & Clamp
    GM2132666Courtesy of GENERAL MOTORS COMPANY
  3. Compress the power steering fluid cooler hose clamp (1).
  4. Connect the power steering fluid cooler hose (2) to the remote power steering fluid reservoir and release the clamp.

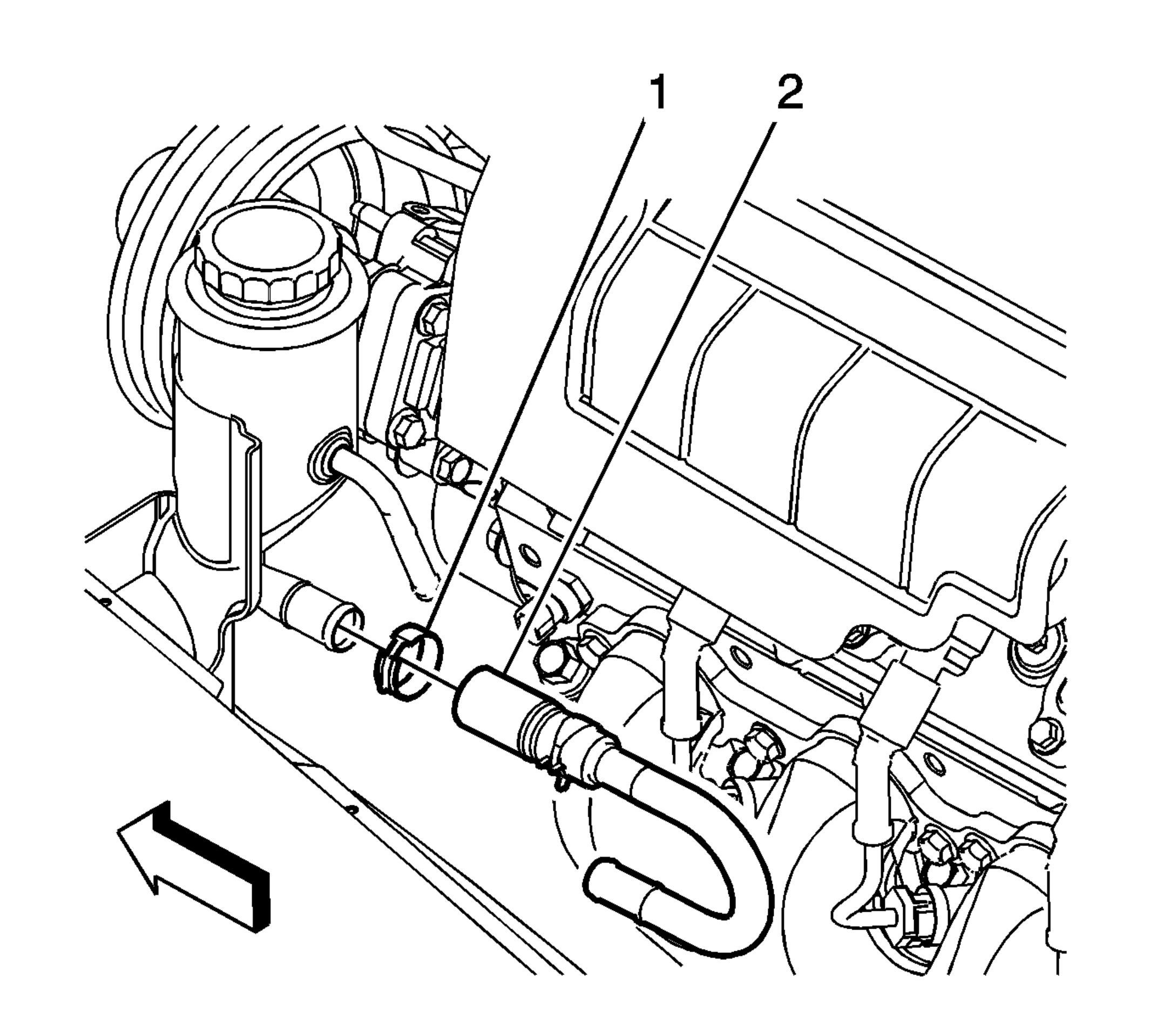

    5. Fig 3: Identifying Power Steering Gear Inlet Hose & Clamp
    GM2132664Courtesy of GENERAL MOTORS COMPANY
  5. Compress the power steering gear inlet hose clamp (1).
  6. Connect the power steering gear inlet hose (2) to the remote power steering fluid reservoir and release the clamp.
  7. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  8. Fill and bleed the power steering fluid system. Refer to Power Steering System Bleeding .
