Mobile Telephone Microphone Replacement

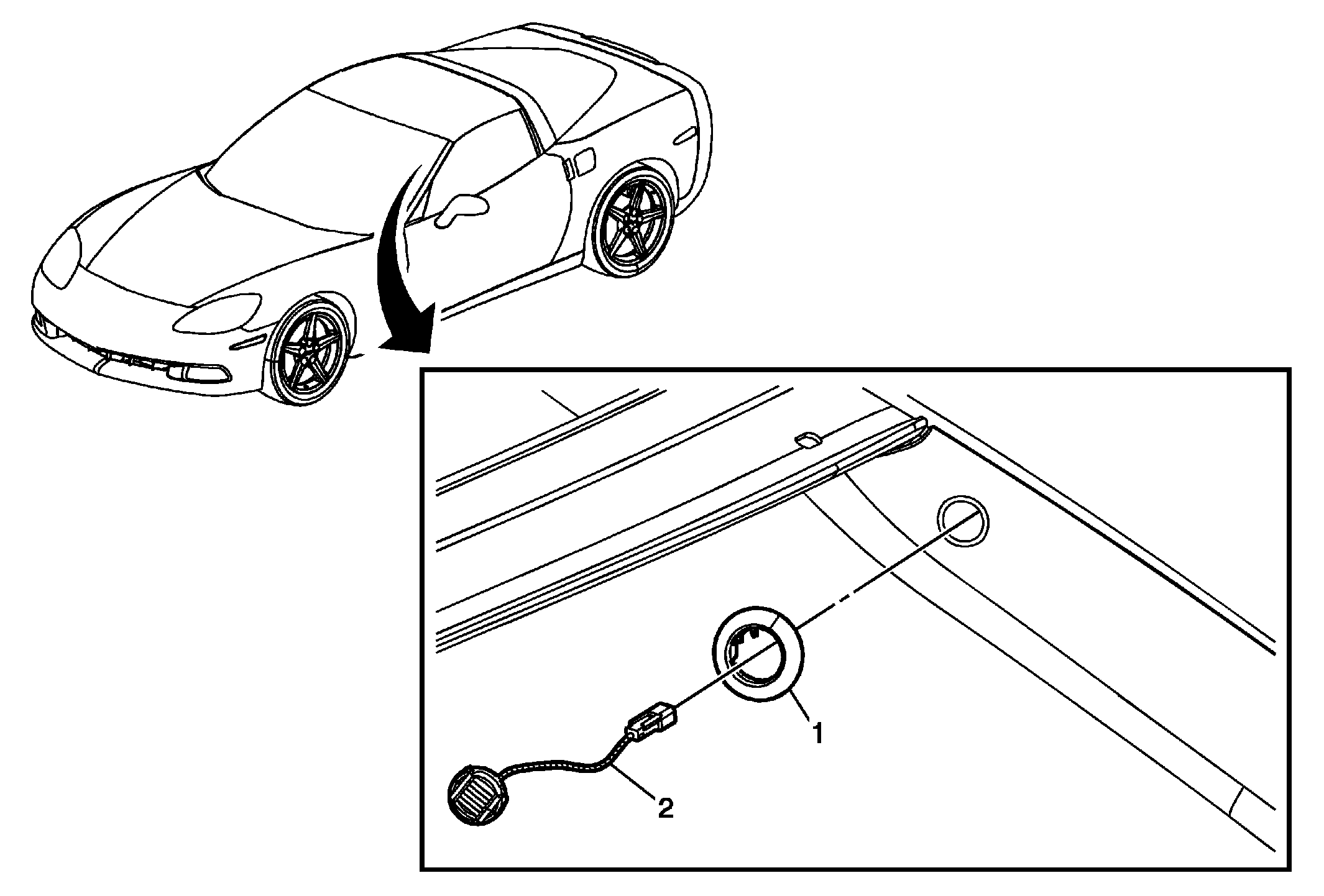

Fig 1: View Of Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Mobile Telephone Microphone Replacement

Callout	Component Name
Preliminary Procedure  Remove the driver side windshield garnish molding. Refer to Windshield Side Garnish Molding Replacement .
1	Mobile Telephone Microphone Bezel Procedure  Use flat blade tool to pry bezel from molding.
2	Mobile Telephone Microphone Assembly Procedure  Unsnap microphone from bezel.
