Removal Procedure

  1. Vent the cargo fuel tank. Refer to Compressed Natural Gas Tank Venting .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

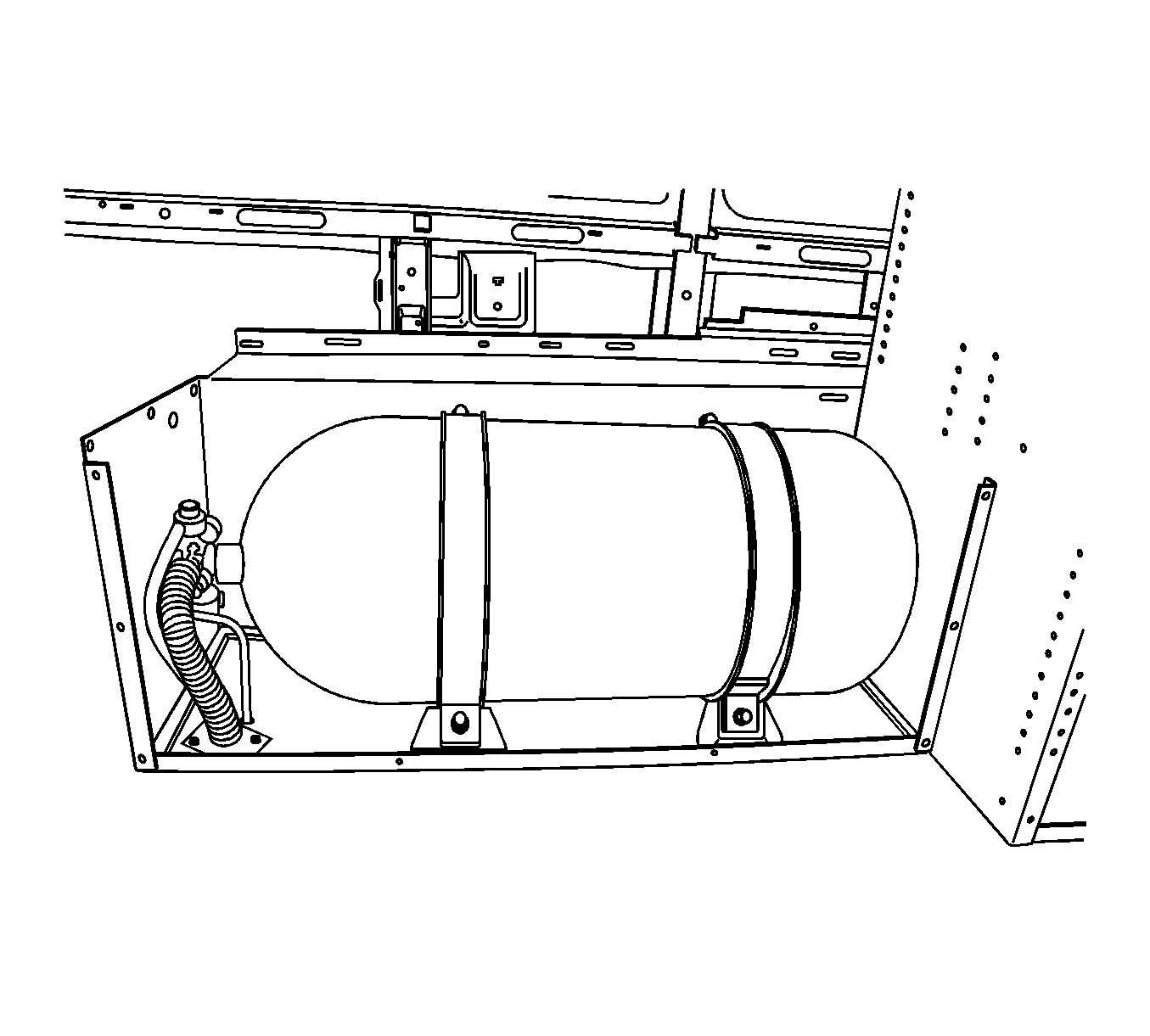

    3. Fig 1: Cargo Fuel Tank
    GM2563763Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the fuel outlet line from the high pressure lock-off (HPL) solenoid.
  4. Disconnect the HPL vent lines.
    5. Fig 2: High Pressure Lock-Off Solenoid Electrical Connector
    GM2563764Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the electrical connector at the high pressure lock-off solenoid.

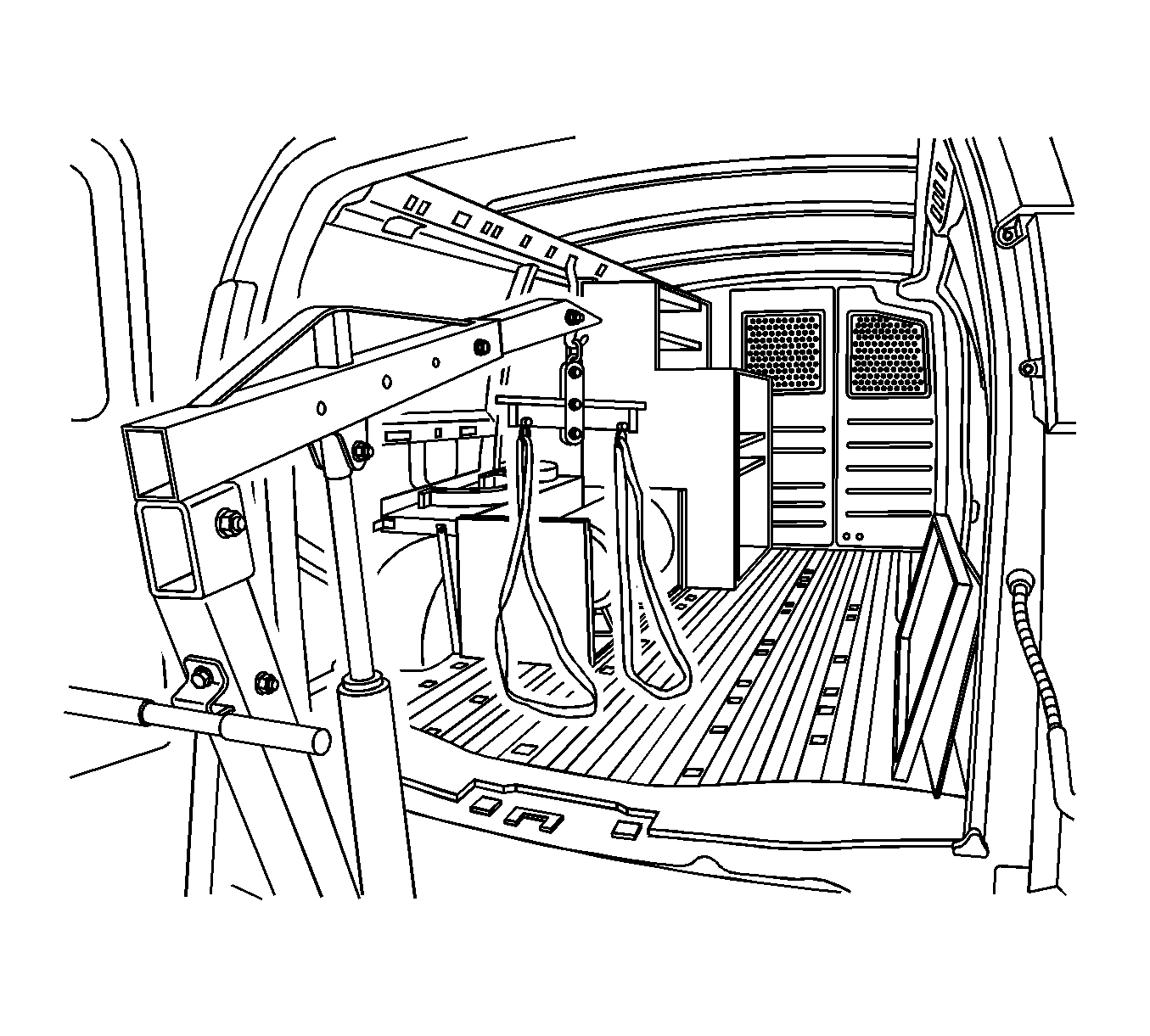

    6. Fig 3: Cargo Fuel Tank And Engine Hoist
    GM2563766Courtesy of GENERAL MOTORS COMPANY
  6. Remove all of the tank strap retaining nuts and bolts (4).
  7. Support the tank assembly with the J-45529  tool using an engine hoist.
  8. Remove the tank from the vehicle.
