Installation Procedure

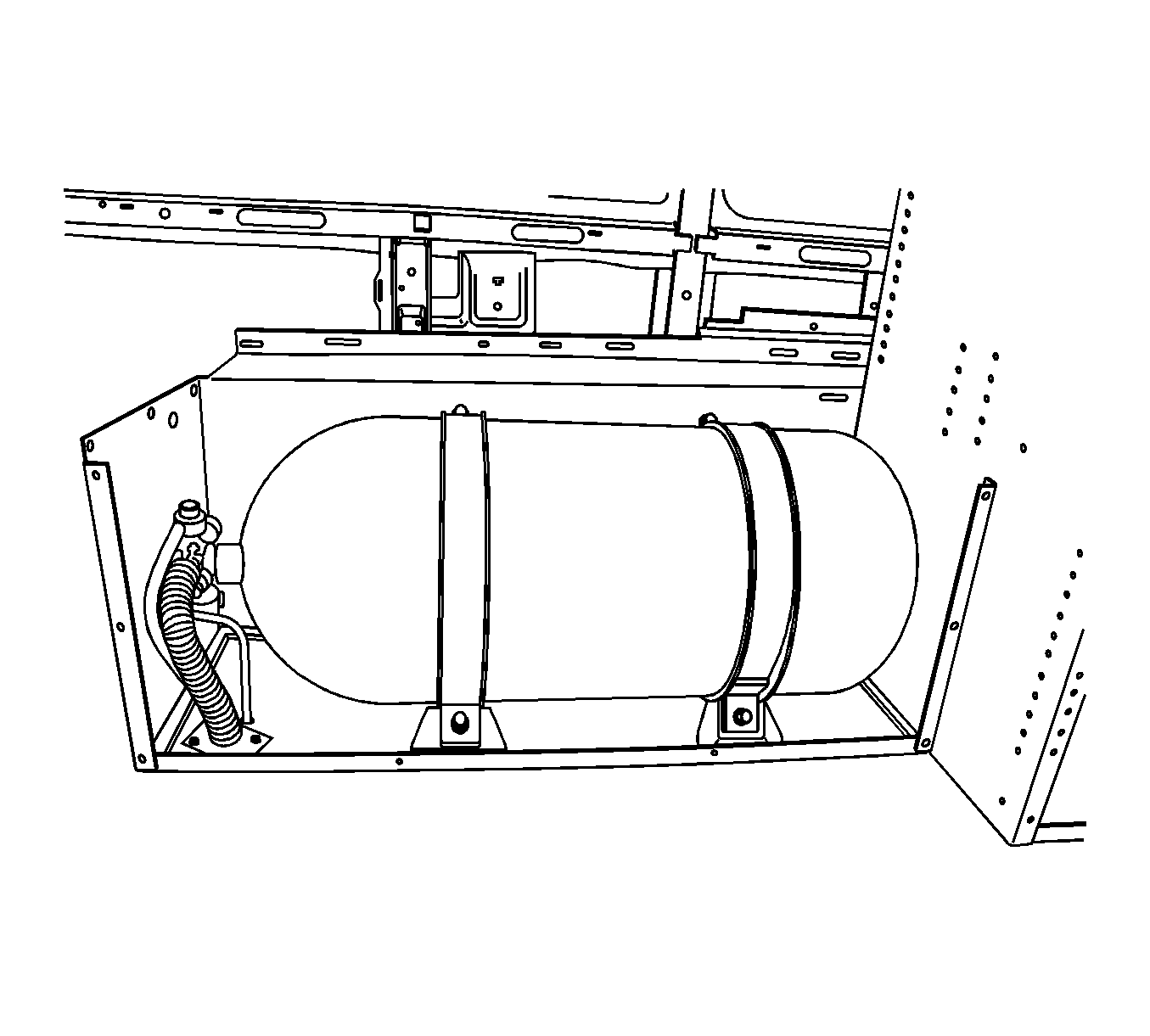

    Fig 1: Cargo Fuel Tank Enclosure
    GM2564713Courtesy of GENERAL MOTORS COMPANY
  1. Reinstall the top and front cargo tank enclosure panels.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten the bolts to 15 N.m (10 lb ft).
