Installation Procedure

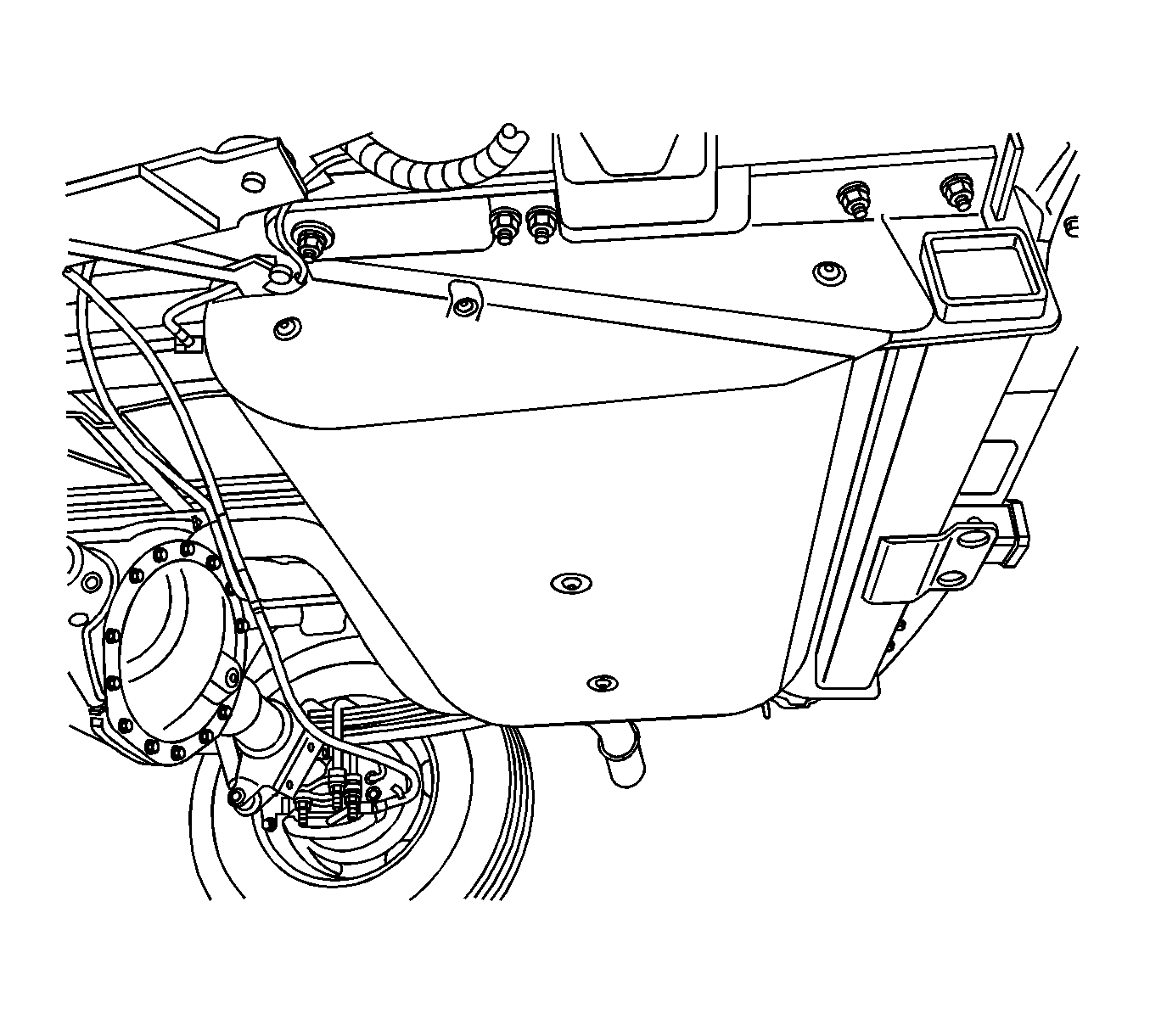

    Fig 1: Tank Shield And Bolts
    GM2564414Courtesy of GENERAL MOTORS COMPANY
  1. Position the shield around the tank frame.
    2. CAUTION:

    Refer to Fastener Caution .

  2. While an assistant holds the shield in place, loosely install the shield retaining bolts. Tighten the bolts to 20 N.m (14 lb ft).
  3. Lower the vehicle.
