Air Cleaner Element Replacement

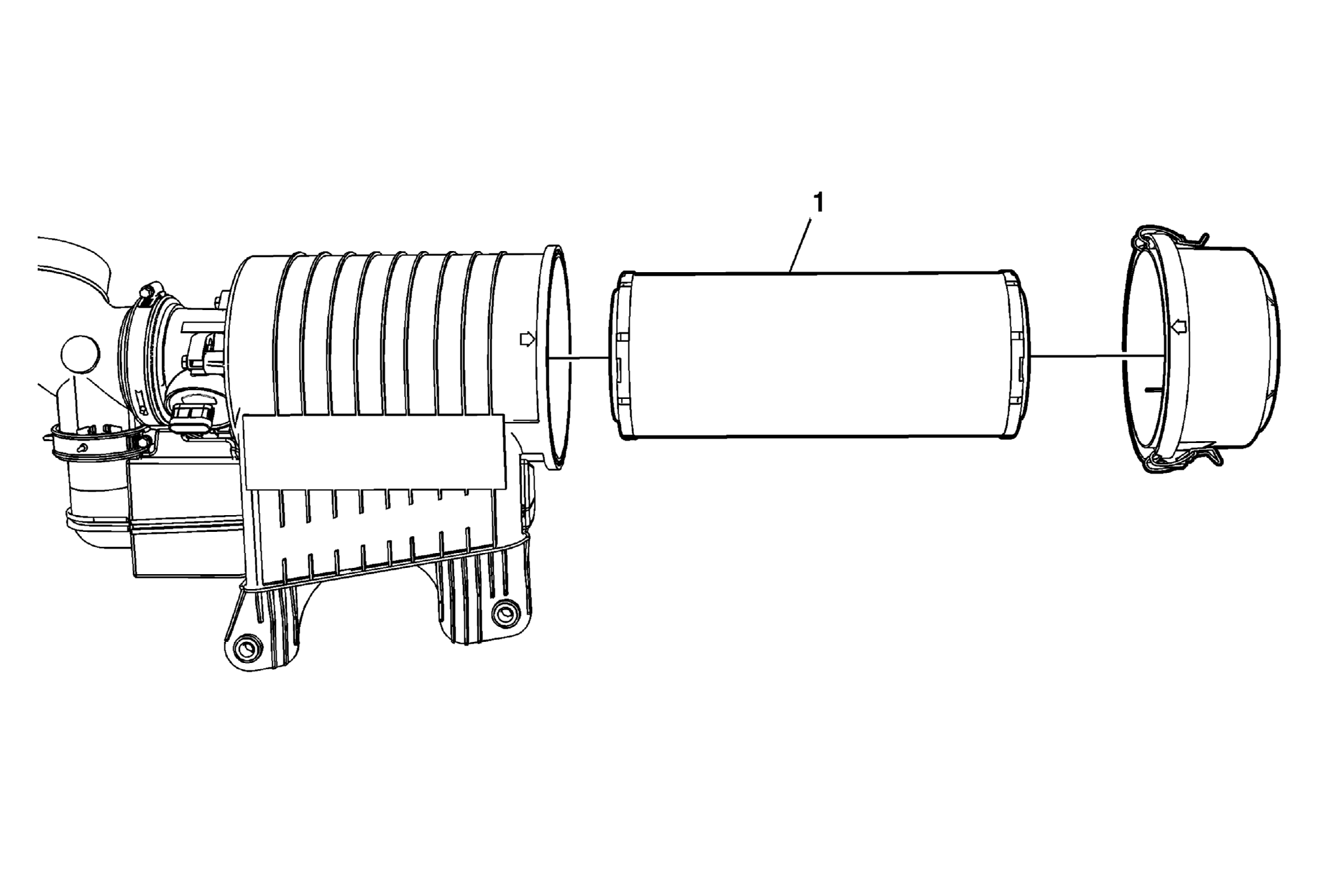

Fig 1: View Of Air Cleaner Element
GM2292435Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
1 Air Cleaner Element
Procedure
Release the retaining clips and remove the air cleaner housing.
