Water in Fuel Indicator Sensor Replacement

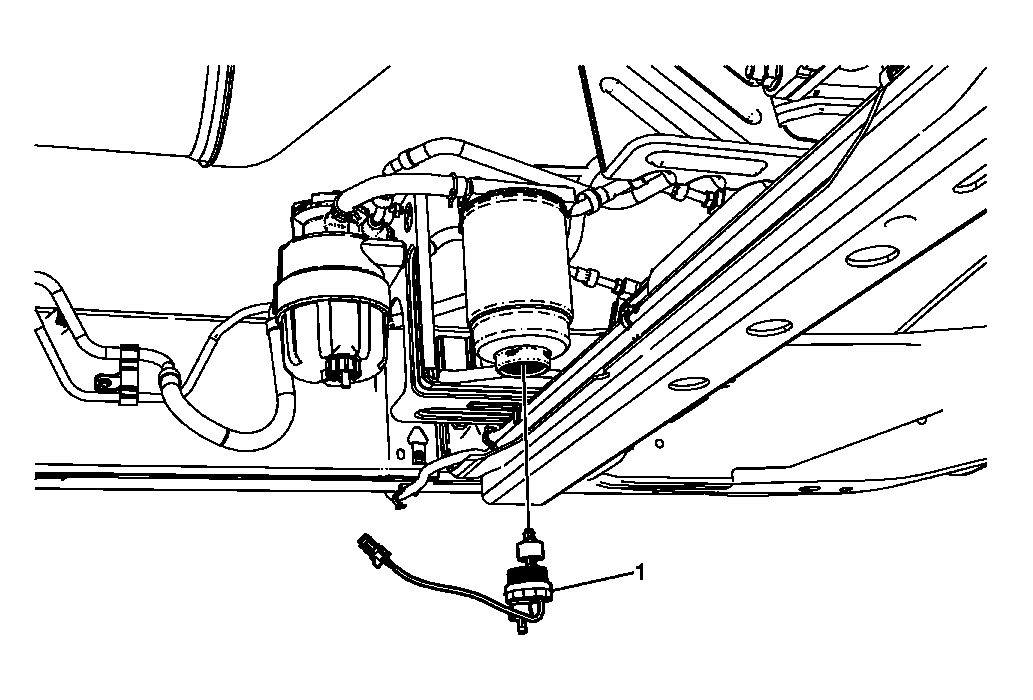

Fig 1: Identifying Water in Fuel Indicator Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Water in Fuel Indicator Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the rubber hoses. Disconnect the electrical connector. Prime the fuel system. Refer to Fuel System Priming . Tighten 25 N.m (18 lb ft)

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Water in Fuel Indicator Sensor

CAUTION:

Procedure

Tighten
25 N.m (18 lb ft)
