Exhaust Gas Recirculation Valve Replacement

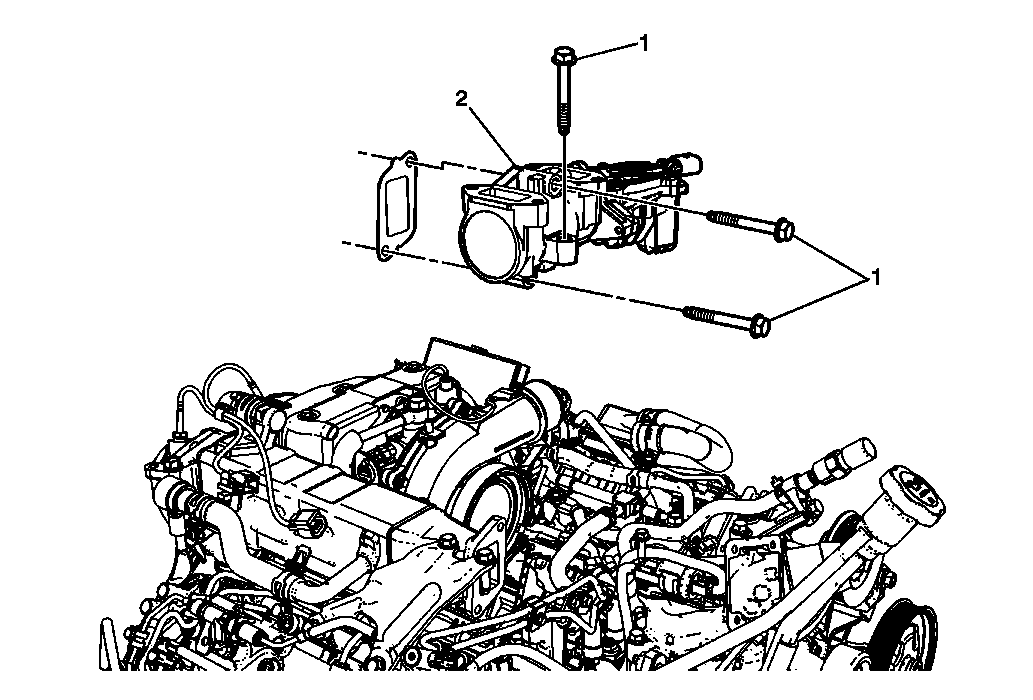

Fig 1: View Of Exhaust Gas Recirculation Valve & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold tube. Refer to Intake Manifold Tube Replacement .
1	Exhaust Gas Recirculation Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Exhaust Gas Recirculation Valve Procedure Use a NEW gasket. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold tube. Refer to Intake Manifold Tube Replacement .

Exhaust Gas Recirculation Fastener (Qty: 3)

CAUTION:

Tighten
25 N.m (18 lb ft)

Exhaust Gas Recirculation Valve

Procedure
