Ignition Switch Lamp

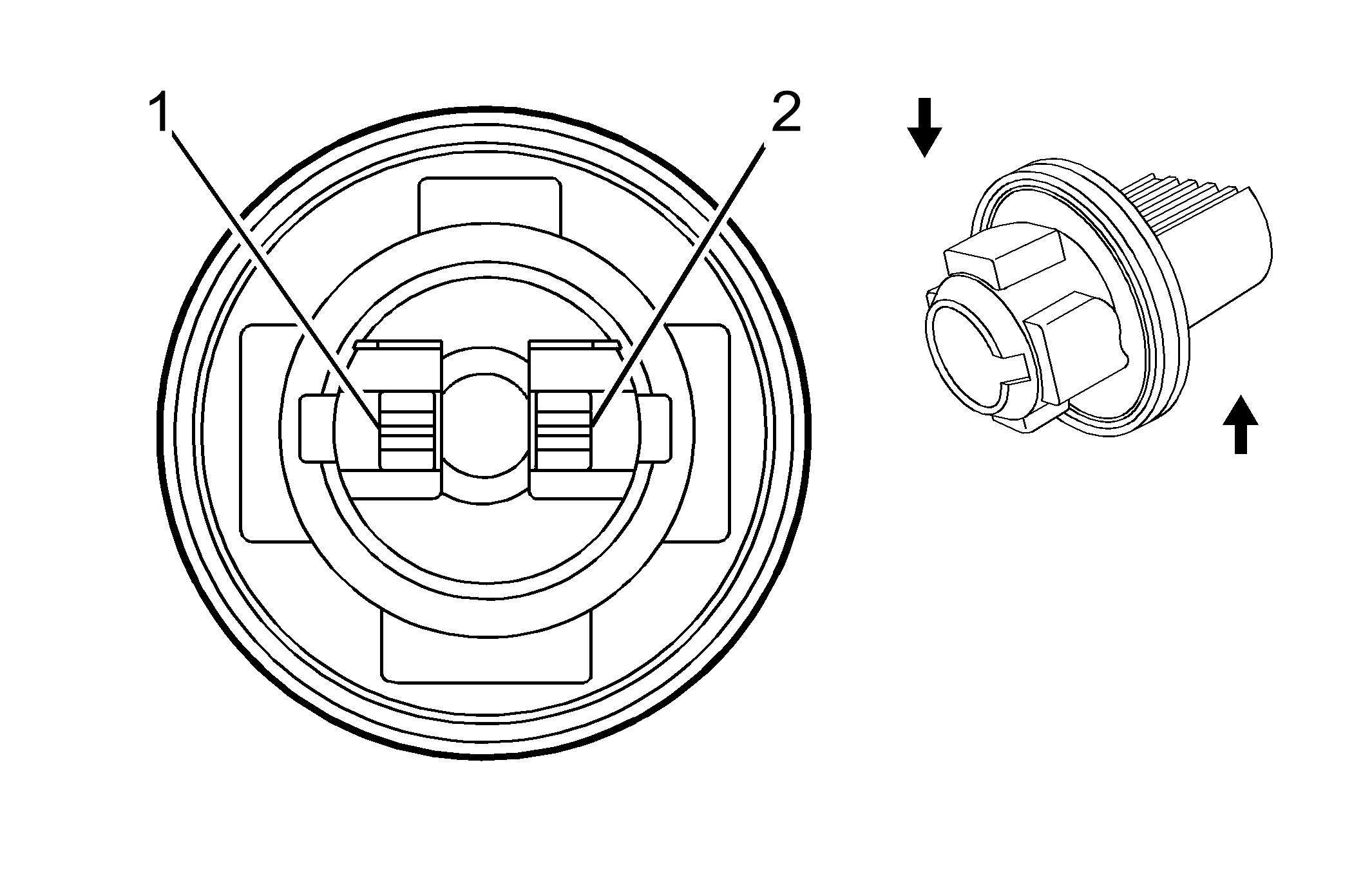

GM1860067Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Ignition Switch
  • OEM Connector: 1356111
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
Ignition Switch Lamp

Pin Wire Circuit Function
1 0.35 TN 690 Accessory Voltage
2 0.35 GY/BK 350 Ground
