Powertrain Component Views
>>
Top Engine Components (LFW)

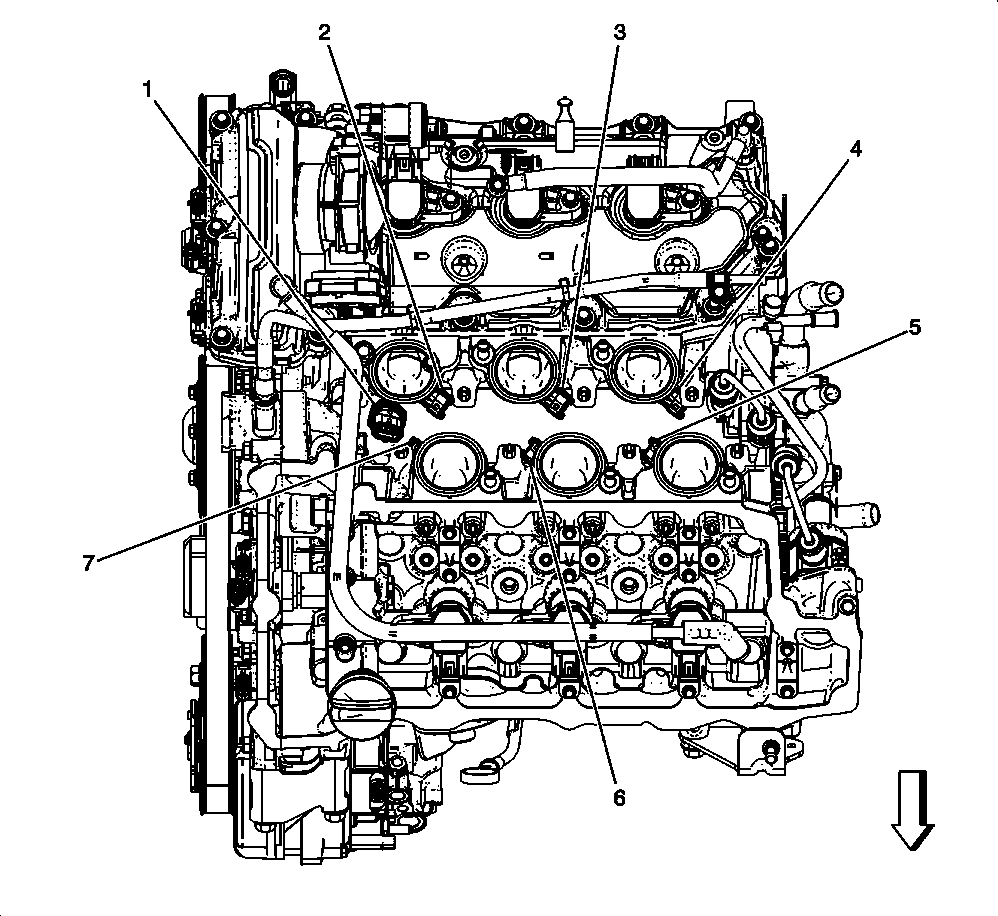

Top Engine Components (LFW)
Courtesy of GENERAL MOTORS COMPANY
Top Engine Components (LFW)
Component Name
Callout
Fuel Rail Pressure Sensor
1
Fuel Injector 1
2
Fuel Injector 3
3
Fuel Injector 5
4
Fuel Injector 6
5
Fuel Injector 4
6
Fuel Injector 2
7
Courtesy of GENERAL MOTORS COMPANY
