Subsystem References (3 of 3) Wiring Schematics

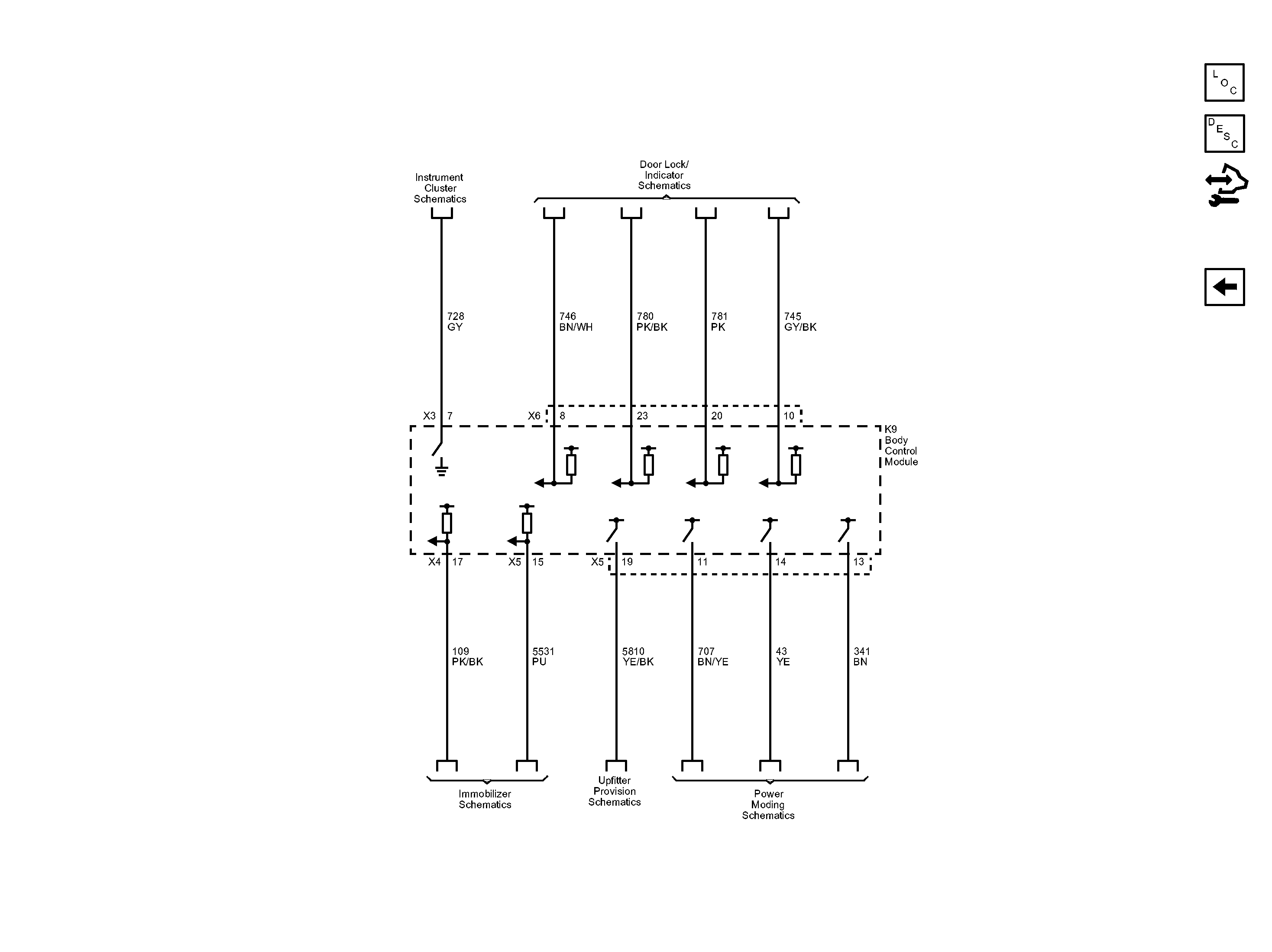

Fig 1: Subsystem References (3 of 3) Wiring Schematic

GM2662718

Courtesy of GENERAL MOTORS COMPANY
