Subsystem References (2 of 3) Wiring Schematics

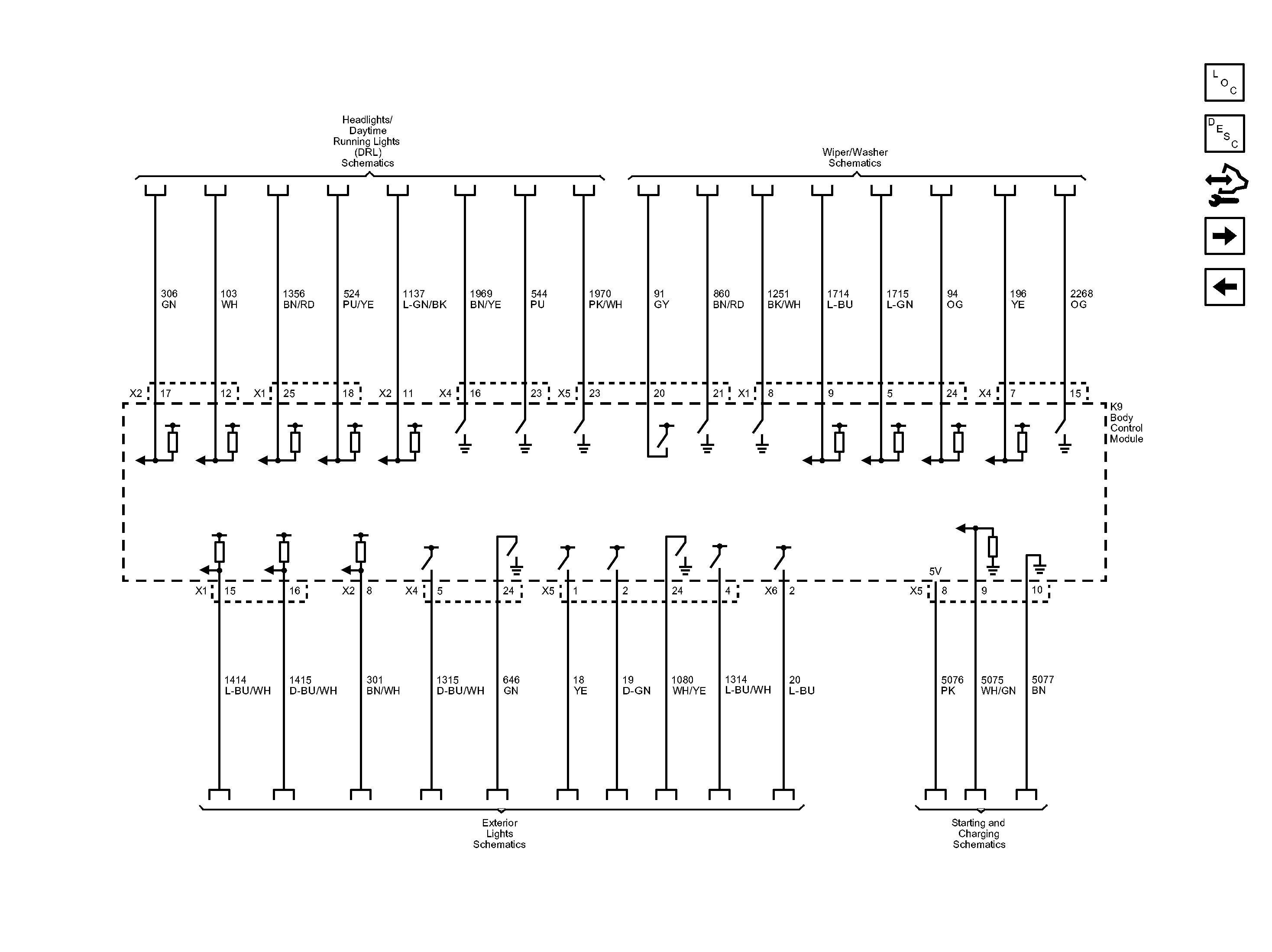

Fig 1: Subsystem References (2 of 3) Wiring Schematic

GM2662717

Courtesy of GENERAL MOTORS COMPANY
