Module Power, Ground, Serial Data, and Traction Control Wiring Schematics

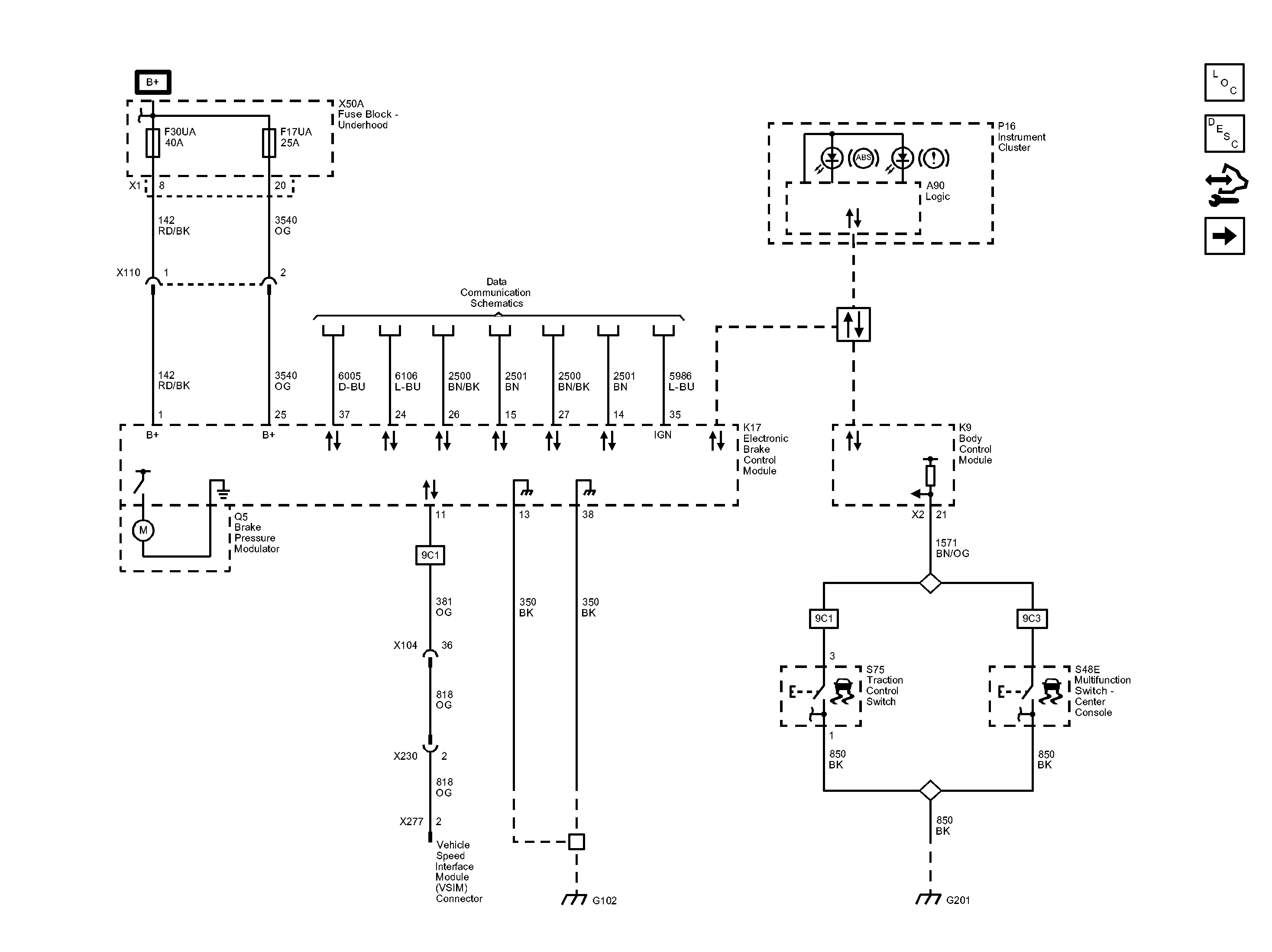

Fig 1: Module Power, Ground, Serial Data, and Traction Control Wiring Schematics

GM2662631

Courtesy of GENERAL MOTORS COMPANY
