Charge Air Bypass Regulator Solenoid Valve Replacement

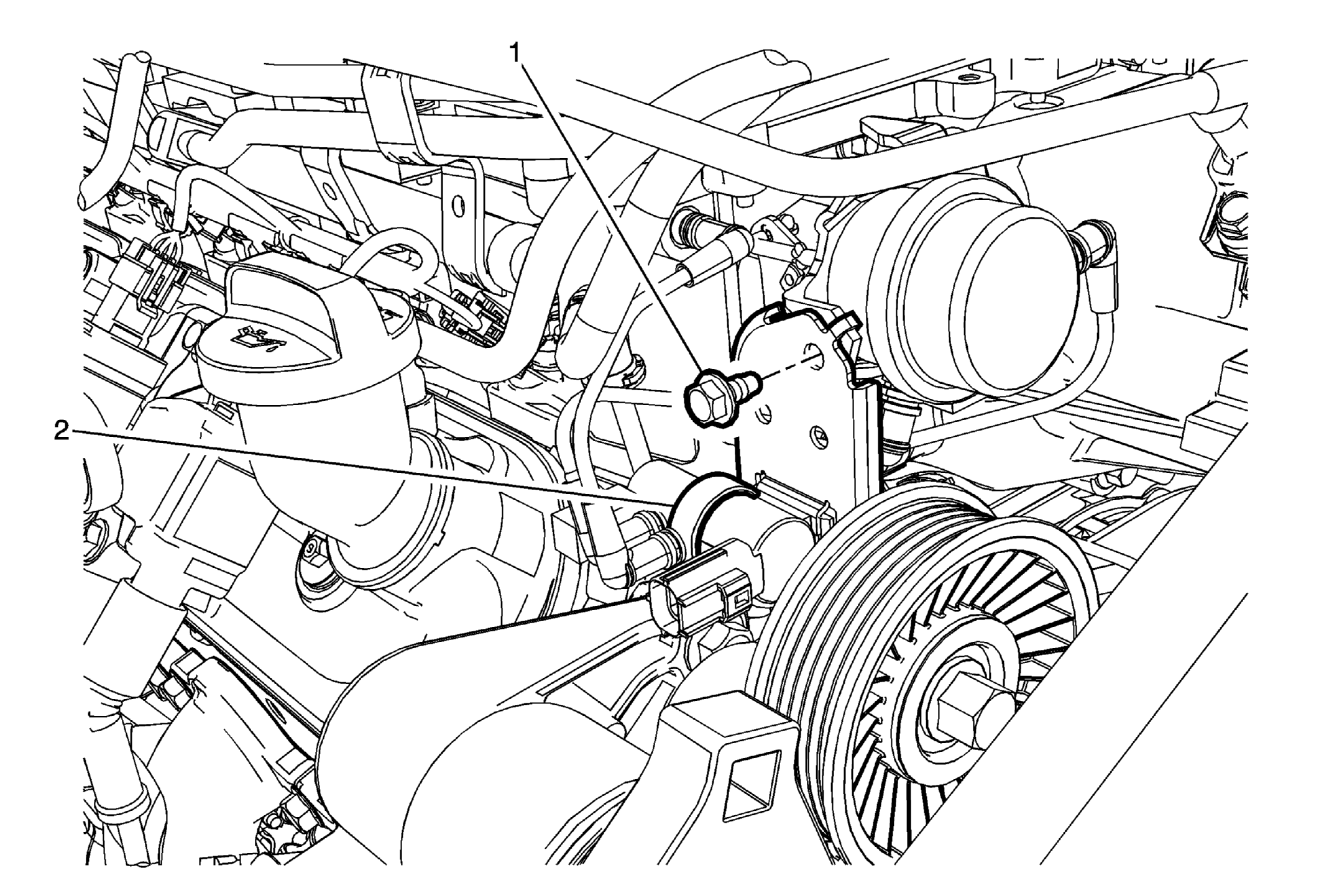

Fig 1: Charge Air Bypass Regulator Solenoid Valve & Fastener
GM2712182Courtesy of GENERAL MOTORS COMPANY
Charge Air Bypass Regulator Solenoid Valve Replacement

Callout Component Name
Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1 Charge Air Bypass Regulator Solenoid Valve Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Charge Air Bypass Regulator Solenoid Valve

Procedure

  1. Disconnect the electrical wiring harness connector from the charge air bypass regulator solenoid valve.
  2. Disconnect the vacuum lines from the charge air bypass regulator solenoid valve.
