Power Steering Wiring Schematics: NV9

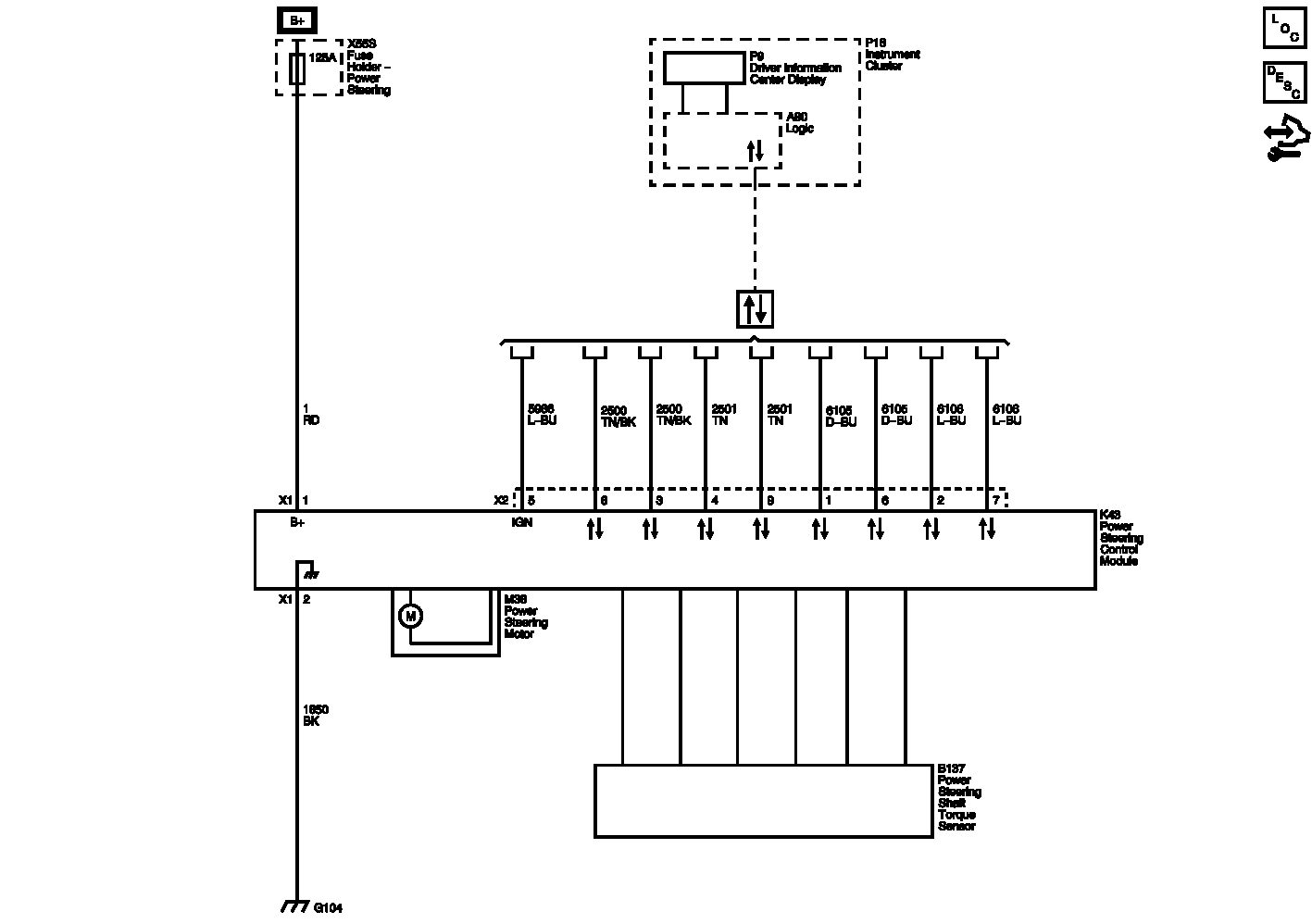

Fig 1: NV9 Wiring Schematic

GM2684523

Courtesy of GENERAL MOTORS COMPANY
