Power Steering Pump Bracket Replacement (L99, LS3)

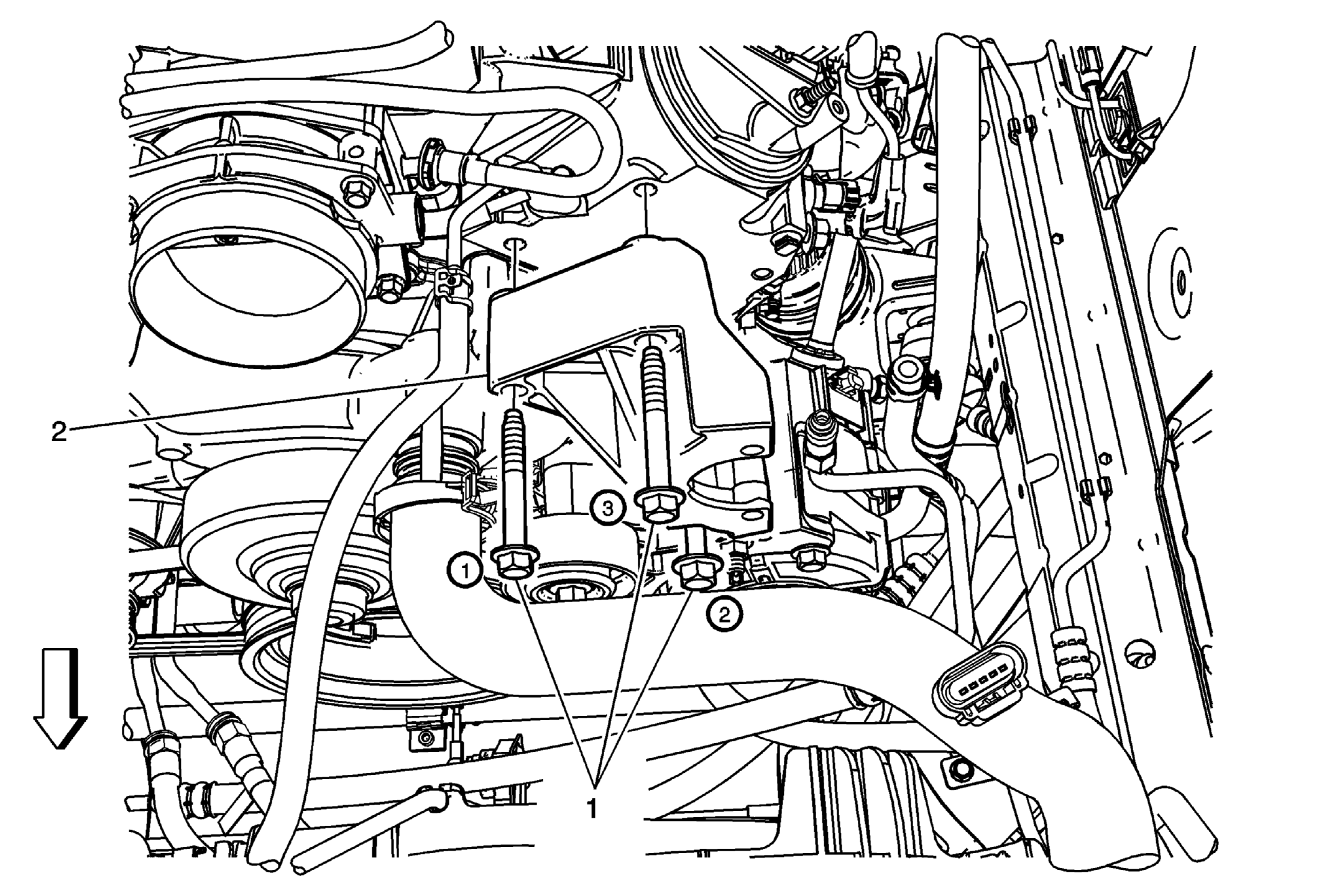

Fig 1: Power Steering Pump Bracket And Bolts (V8)
GM2210574Courtesy of GENERAL MOTORS COMPANY
Power Steering Pump Bracket Replacement (L99, LS3)

Callout Component Name

Preliminary Procedures

  1. Remove the engine cover. Refer to Engine Cover Replacement .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (L99 or LS3) , Air Cleaner Assembly Replacement (LSA) .
  3. Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (L99 or LS3) , Air Cleaner Resonator and Outlet Duct Replacement (LSA) .
  4. Disconnect the accessory drive belt from the power steering pump pulley only. Refer to Drive Belt Replacement - Accessory (Except LSA) , Drive Belt Replacement - Accessory (LSA) .
  5. Disconnect the power steering pump from the power steering pump bracket. Access the power steering pump bolts through the holes in the pulley. DO NOT disconnect the power steering hoses. Refer to Power Steering Pump Replacement (L99, LS3) , Power Steering Pump Replacement (LFX) .
1 Power Steering Pump Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Procedure
Tighten the bolts in sequence.
Tighten
50 N.m (37 lb ft)
2 Power Steering Pump Bracket
