Front of the Engine Compartment Components (TR7)

Front of the Engine Compartment Components (TR7)

Component Name Callout
K28 Headlamp Leveling Control Module 1
M29L Headlamp Leveling Actuator - Left 2
M29R Headlamp Leveling Actuator - Right 3

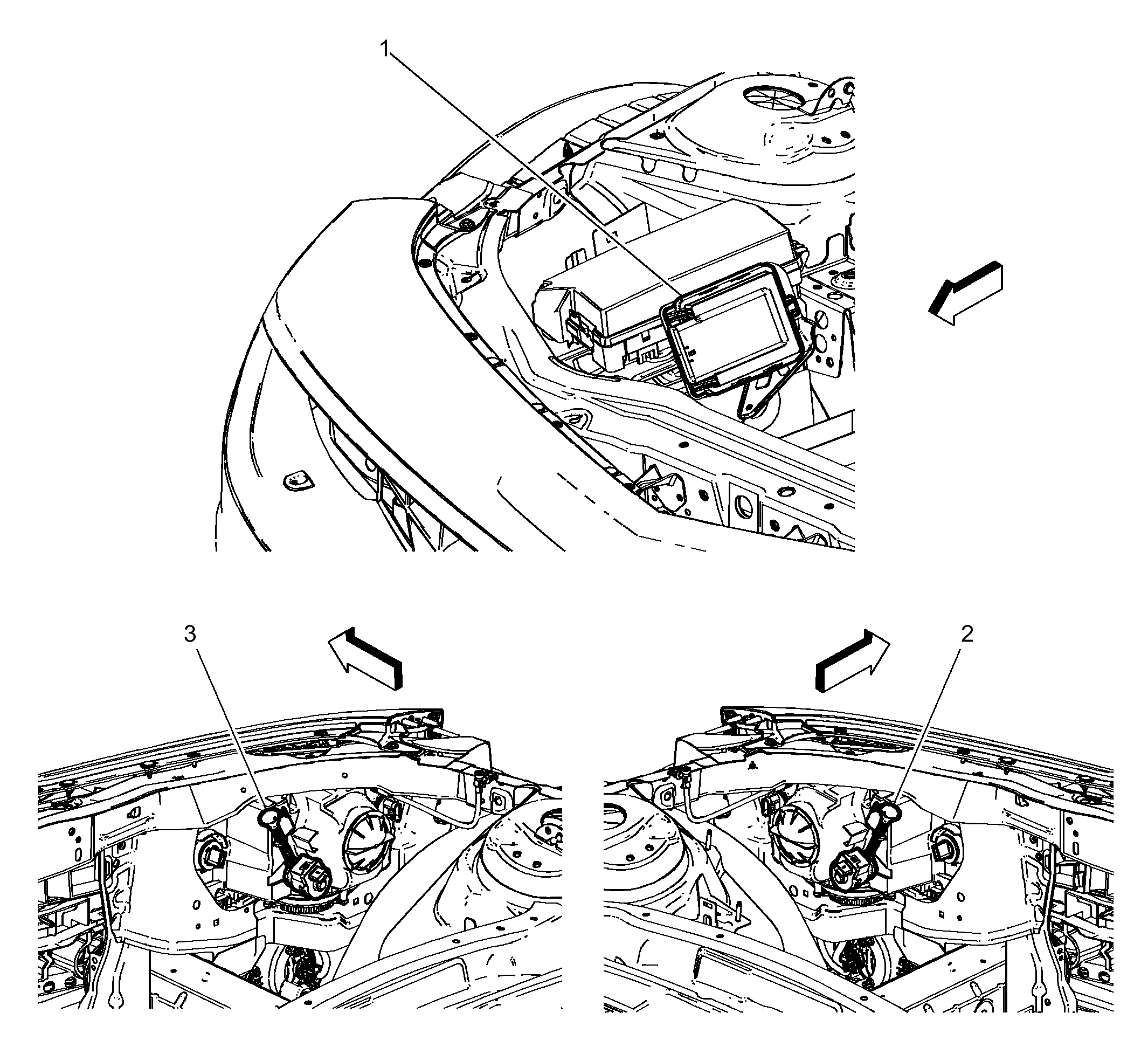

Fig 1: Front of the Engine Compartment Components (TR7)
GM2535672Courtesy of GENERAL MOTORS COMPANY
