Installation Procedure

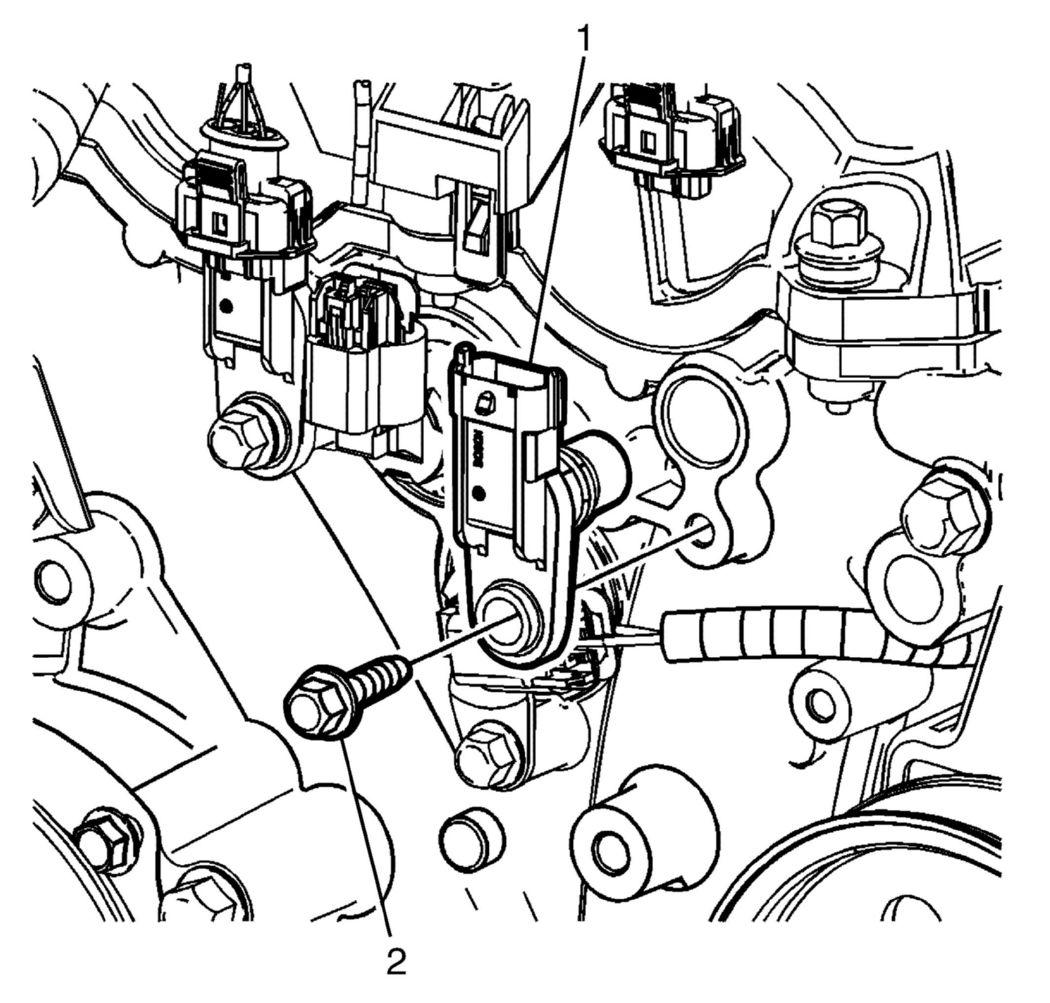

    Fig 1: Identifying CMP Sensor To Engine Front Cover Retaining Bolt
    GM1949774Courtesy of GENERAL MOTORS COMPANY
  1. Install the CMP sensor (1) to the engine.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CMP sensor (1) to engine front cover retaining bolt (2) and tighten to 10 Y (89 lb in).

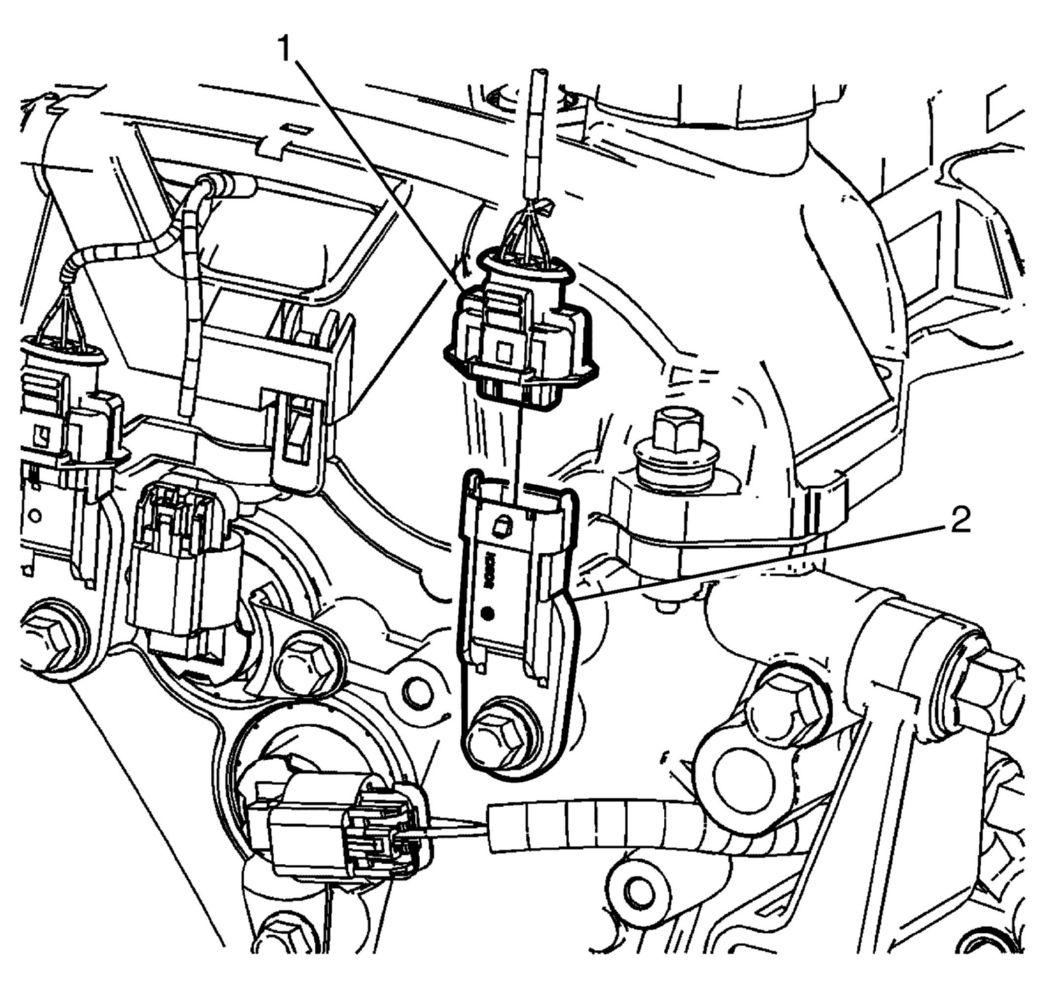

    3. Fig 2: Identifying CMP Sensor & Electrical Connector
    GM1949771Courtesy of GENERAL MOTORS COMPANY
  3. Install the CMP sensor electrical connector (1) to the CMP sensor (2).
  4. Install the power steering fluid reservoir. Refer to Power Steering Fluid Reservoir Replacement (LFX) .
  5. Install the intake manifold. Refer to Intake Manifold Replacement .
  6. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
