Installation Procedure

  1. If you are installing a new ignition lock cylinder, code the lock cylinder. Refer to Lock Cylinder Coding - Ignition .

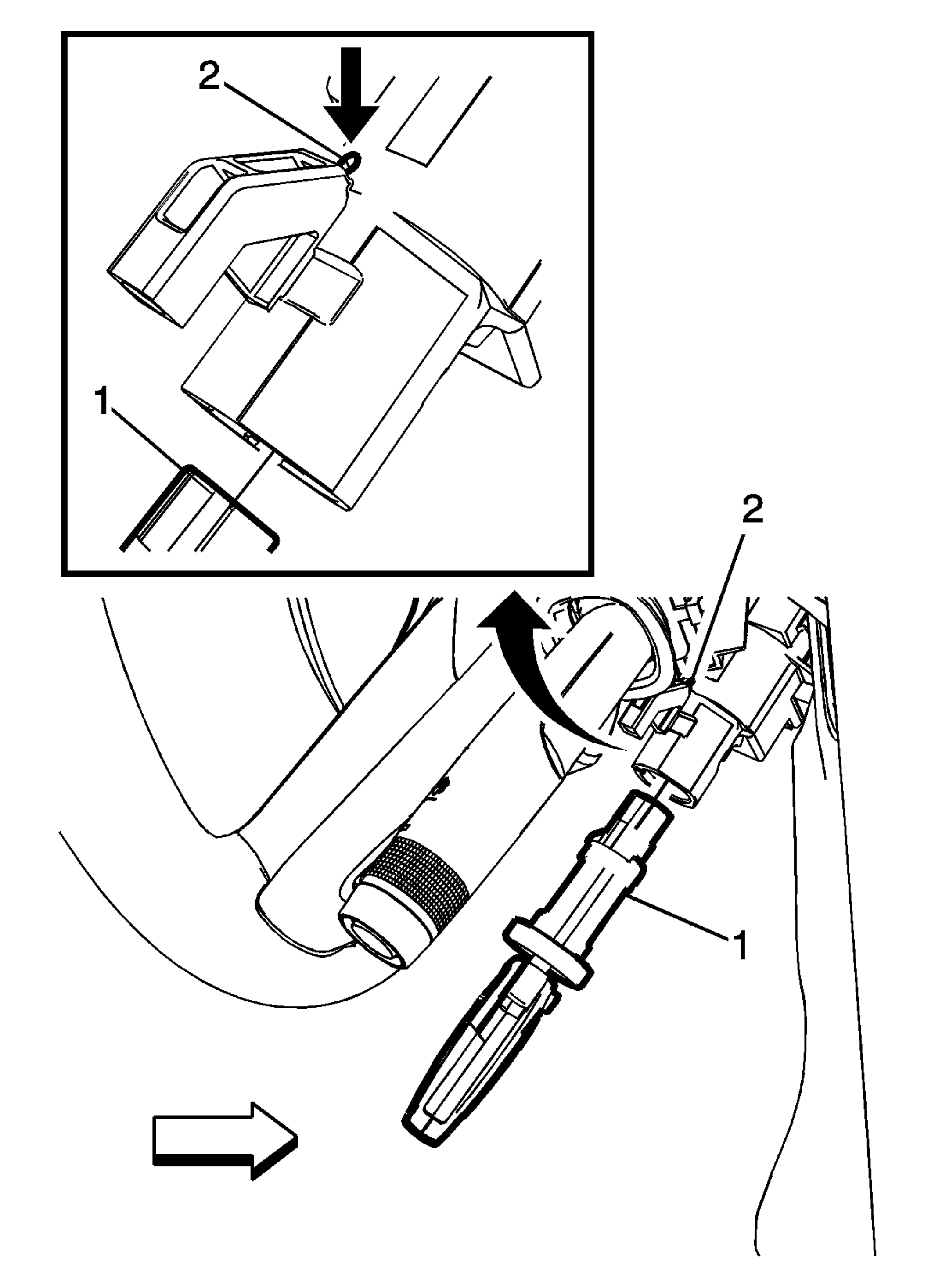

    2. Fig 1: View Of Ignition Lock Cylinder
    GM2222983Courtesy of GENERAL MOTORS COMPANY
  2. Turn the key to the RUN position and insert ignition lock cylinder (1) into the ignition and start switch housing.
  3. Turn the key to the LOCK position and remove the key from the ignition lock cylinder.
  4. Install the steering column shroud. Refer to Steering Column Shroud Replacement .
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
