Home >> Chevrolet >> 2012 >> Camaro LS, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Secondary And Configurable Customer Control System >> Wiring Schematics >> Steering Wheel Secondary/Configurable Control Wiring Schematics >> Steering Wheel

Steering Wheel

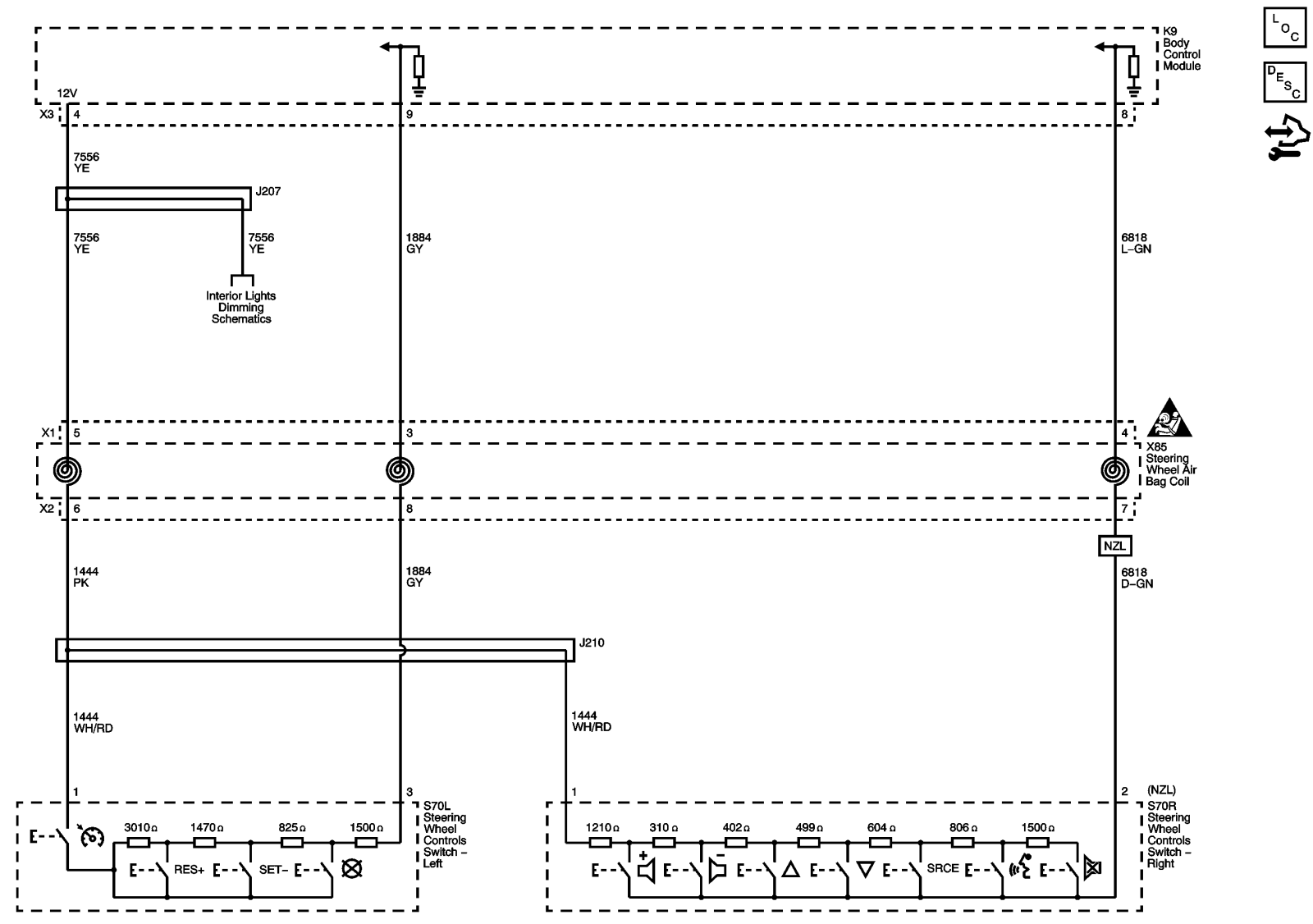

Fig 1: Steering Wheel Wiring Schematic

GM2626115

Courtesy of GENERAL MOTORS COMPANY
