Radio Rear Compartment Speaker Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

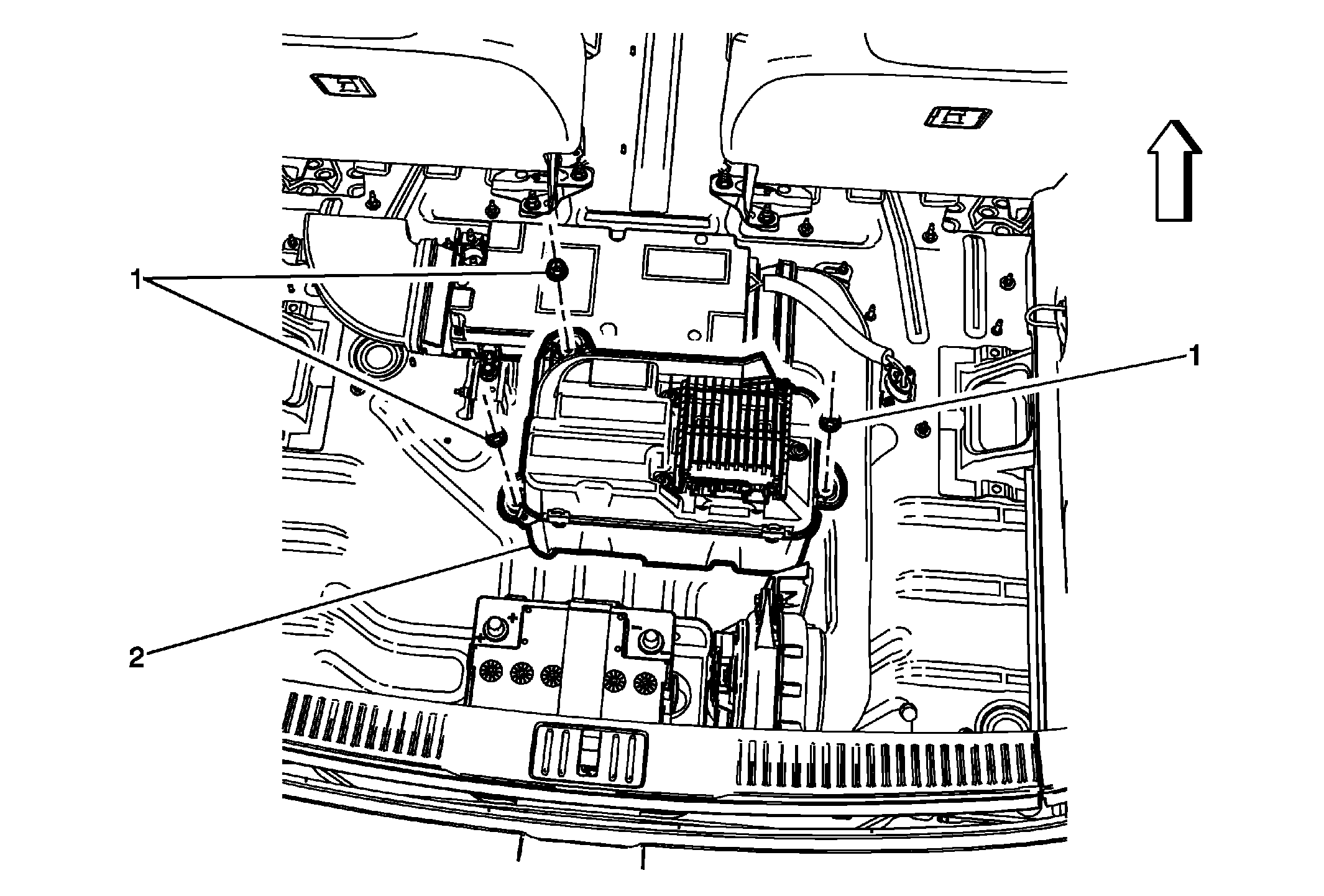

Fig 1: Radio Rear Compartment Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor stowage compartment trim. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .
1	Radio Rear Compartment Speaker Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Radio Rear Compartment Speaker Procedure Unclip wire harnesses. Disconnect the electrical connection. Transfer the amplifier.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor stowage compartment trim. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .

Radio Rear Compartment Speaker Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Radio Rear Compartment Speaker

Procedure

Unclip wire harnesses.
Disconnect the electrical connection.
Transfer the amplifier.
