Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Immobilizer System
>>
Wiring Schematics
>>
Immobilizer Wiring Schematics
Immobilizer Wiring Schematics

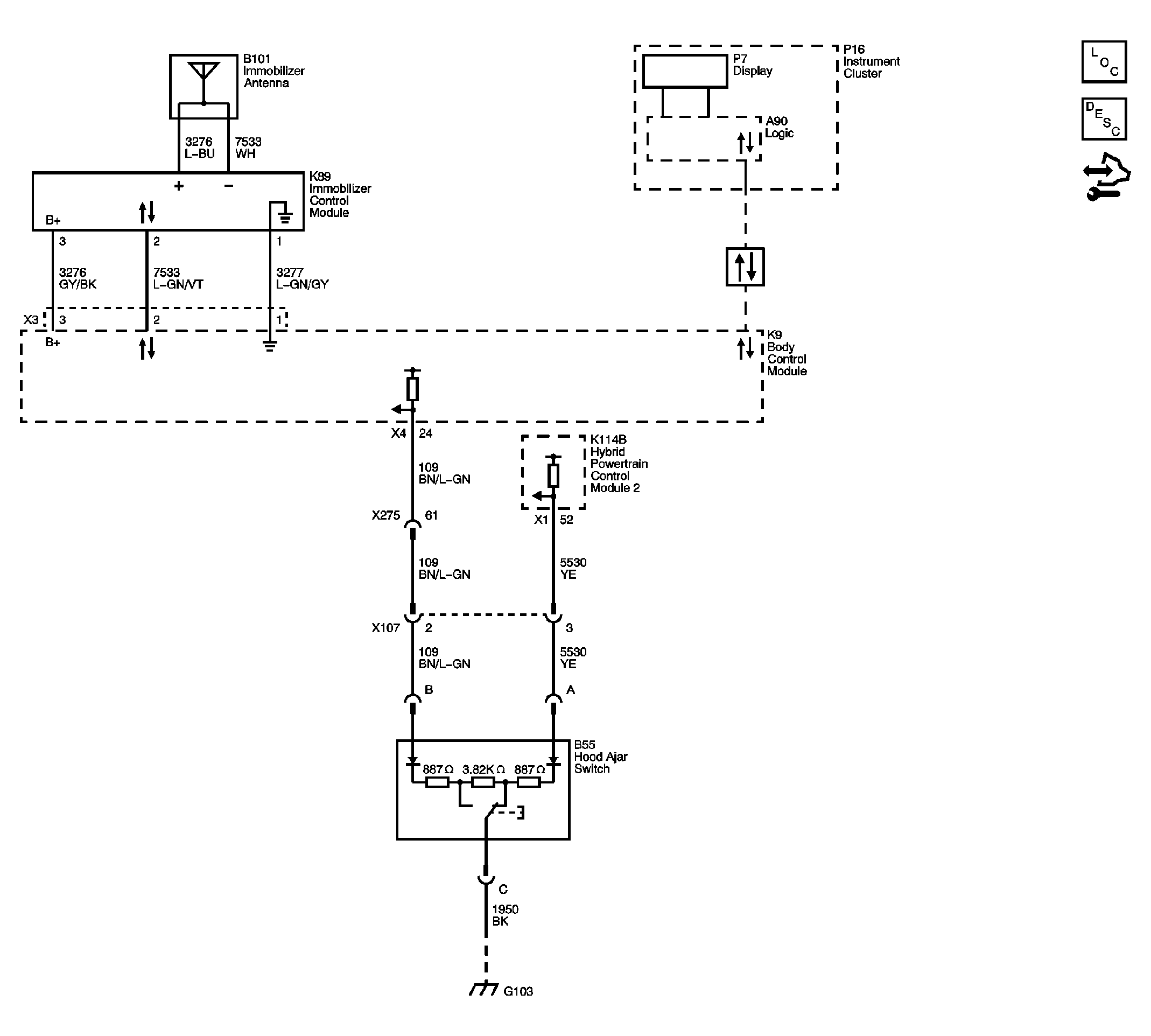

Fig 1: Immobilizer Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
