Immobilizer Wiring Schematics: Immobilizer

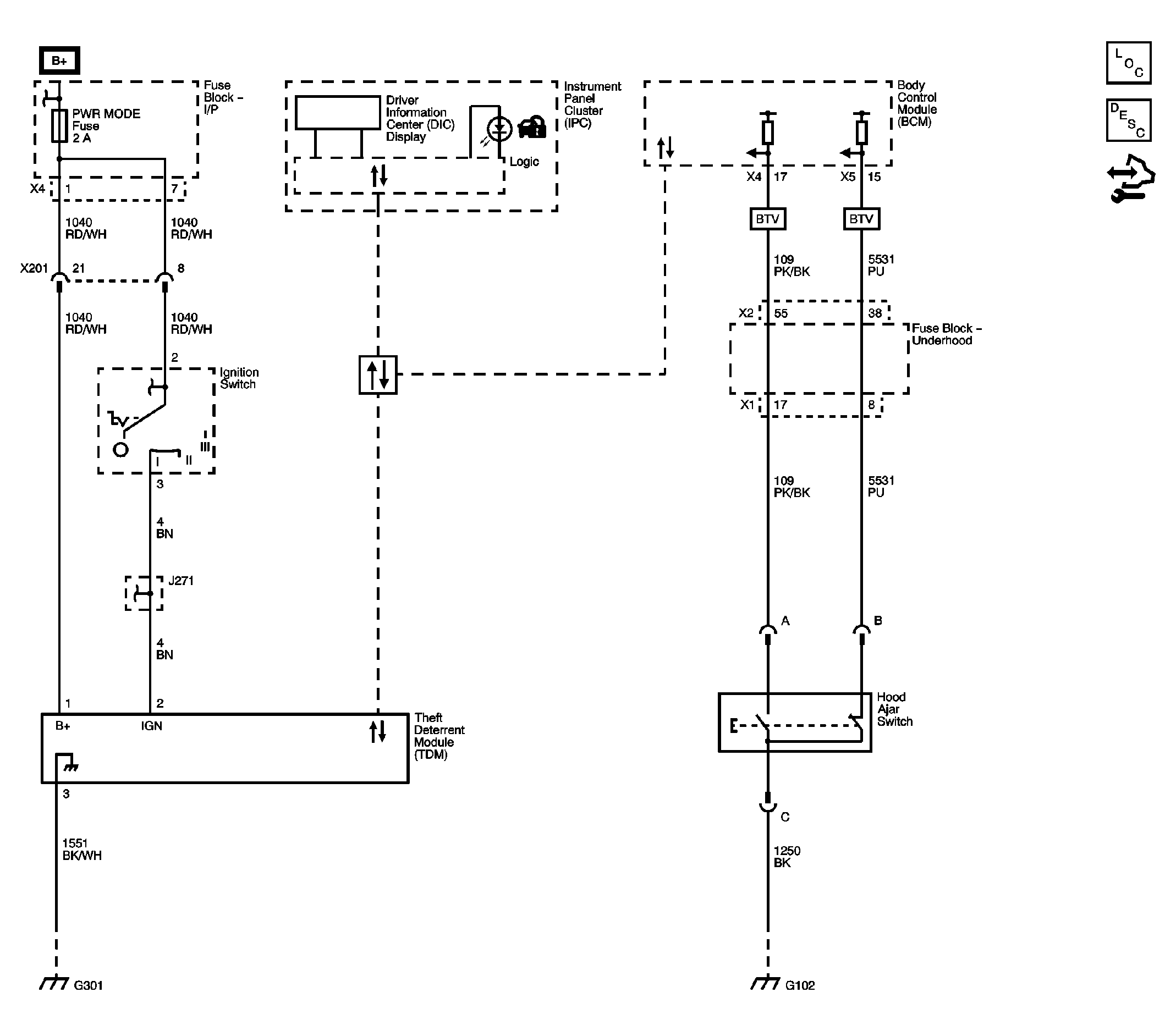

Fig 1: Immobilizer Wiring Schematic

GM2382049

Courtesy of GENERAL MOTORS CORP.
