Home >> Chevrolet >> 2011 >> Traverse LS, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System And Release Systems >> Wiring Schematics >> Release Systems Wiring Schematics >> Tb4

Release Systems Wiring Schematics: Tb4

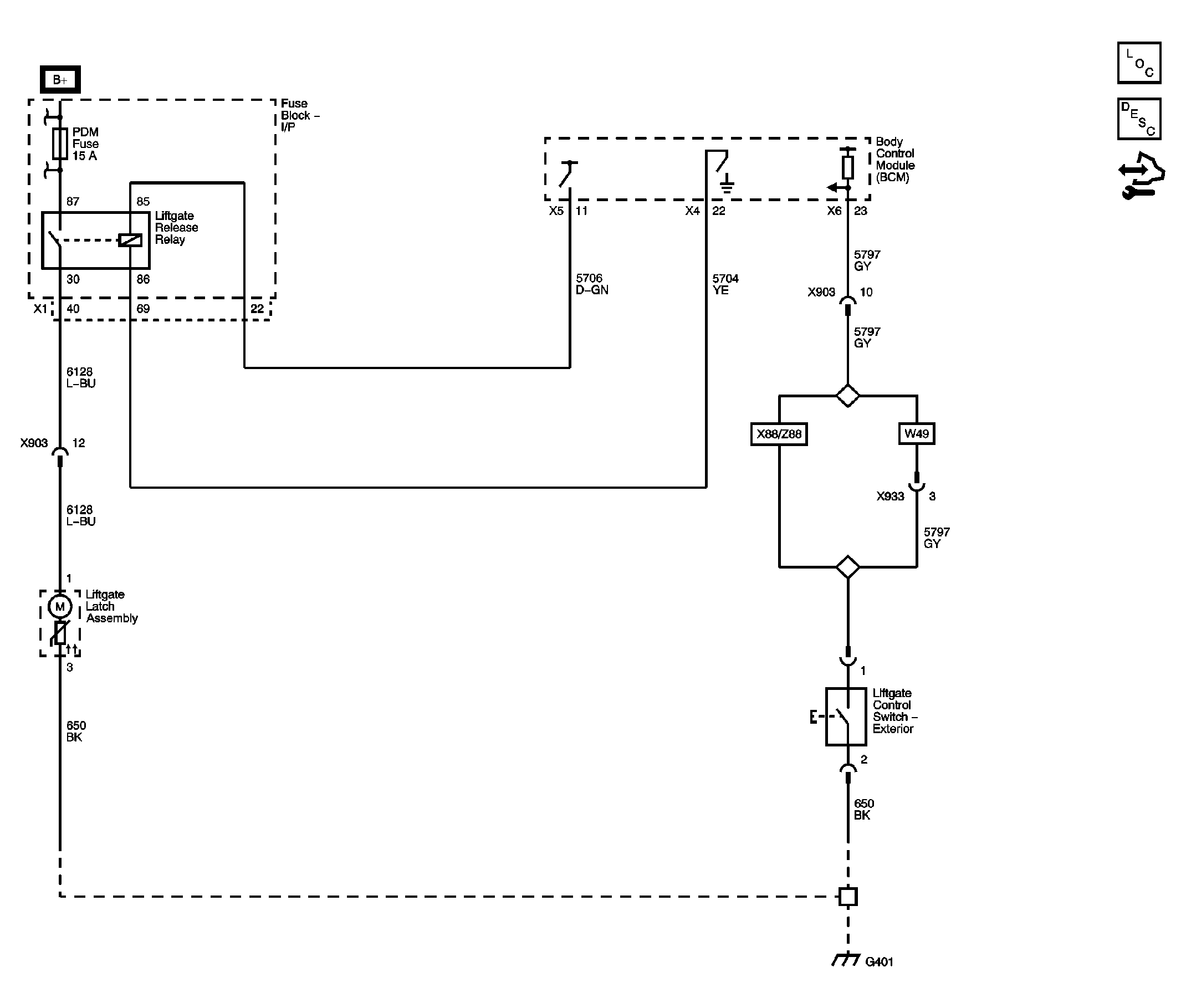

Fig 1: TB4 Wiring Schematic

GM2381639

Courtesy of GENERAL MOTORS CORP.
