Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator

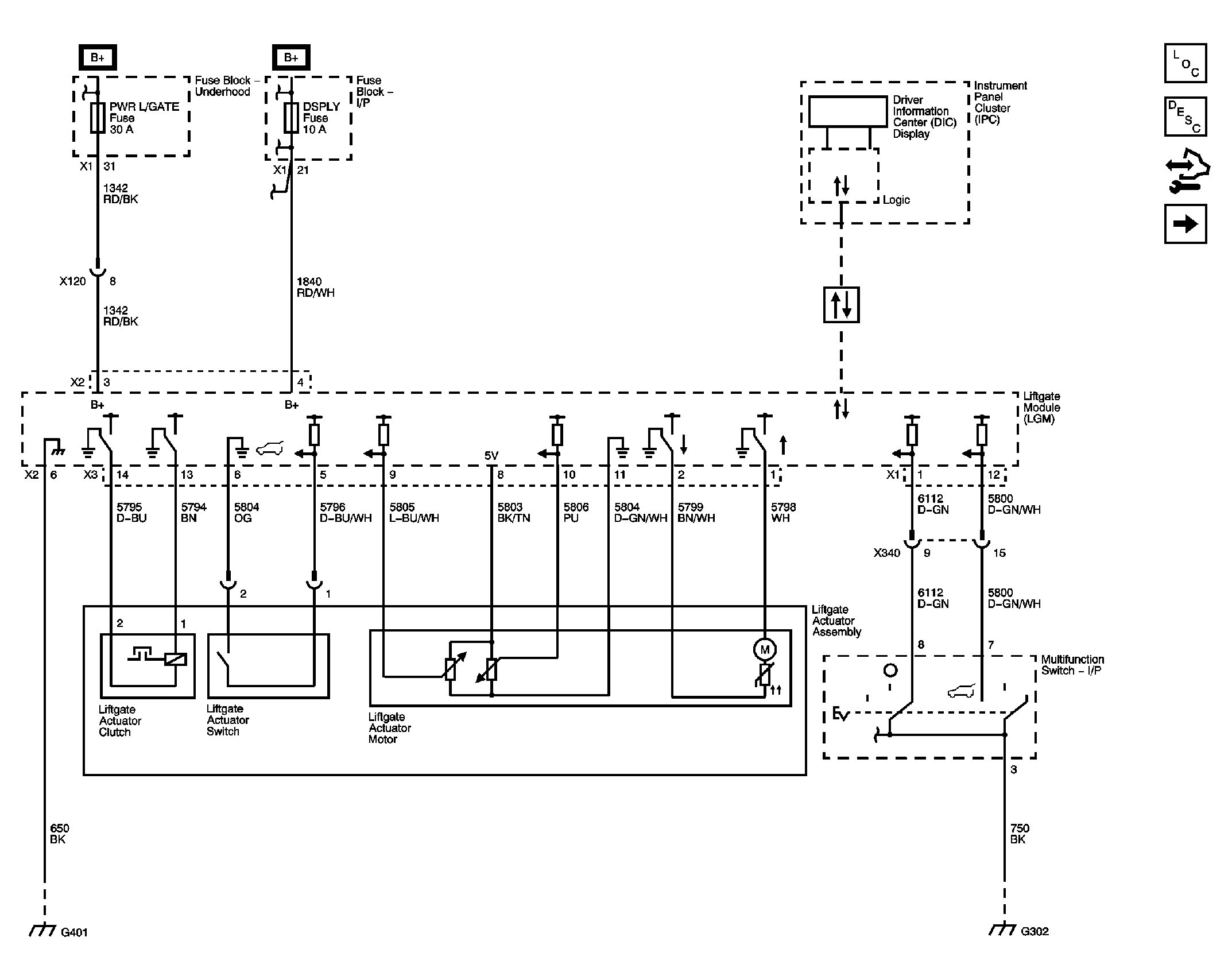

Fig 1: Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator Wiring Schematic
GM2381640Courtesy of GENERAL MOTORS CORP.
