Load Floor Panel Frame Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

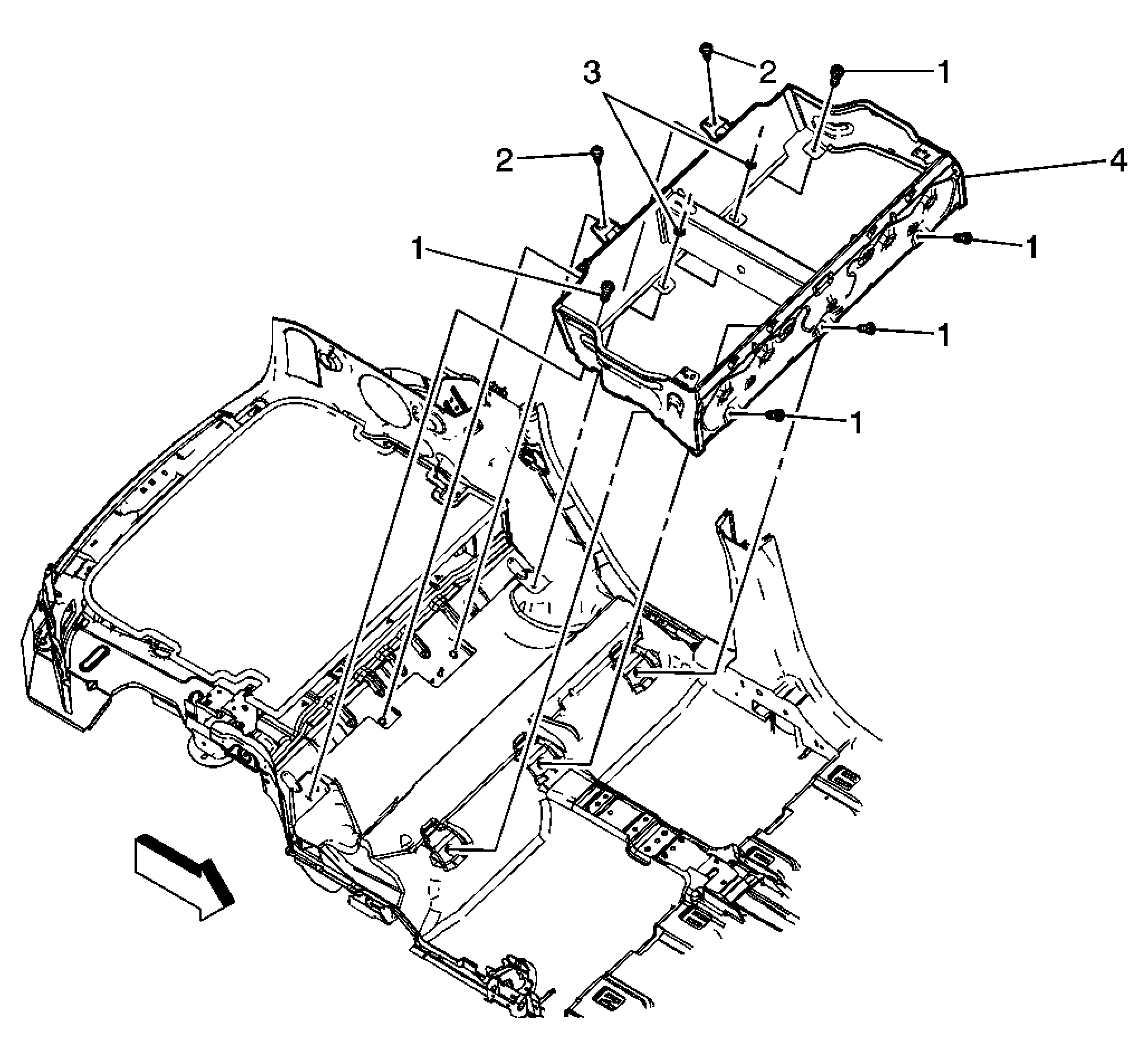

Fig 1: Load Floor Panel Frame
GM1867239Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear compartment floor stowage compartment tray. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement .
1 Rear Compartment Load Floor Panel Frame Retaining Bolt (Qty: 5)
CAUTION: Refer to Fastener Caution .

Tighten:  45 N.m (33 lb in)
2 Rear Compartment Load Floor Panel Frame Retaining Nut (Qty: 2)

Tighten:  45 N.m (33 lb in)
3 Rear Compartment Load Floor Panel Frame Retaining Screw (Qty: 2)

Tighten:  40 N.m (30 lb in)
4 Rear Compartment Load Floor Panel Frame
