Cargo Partition Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

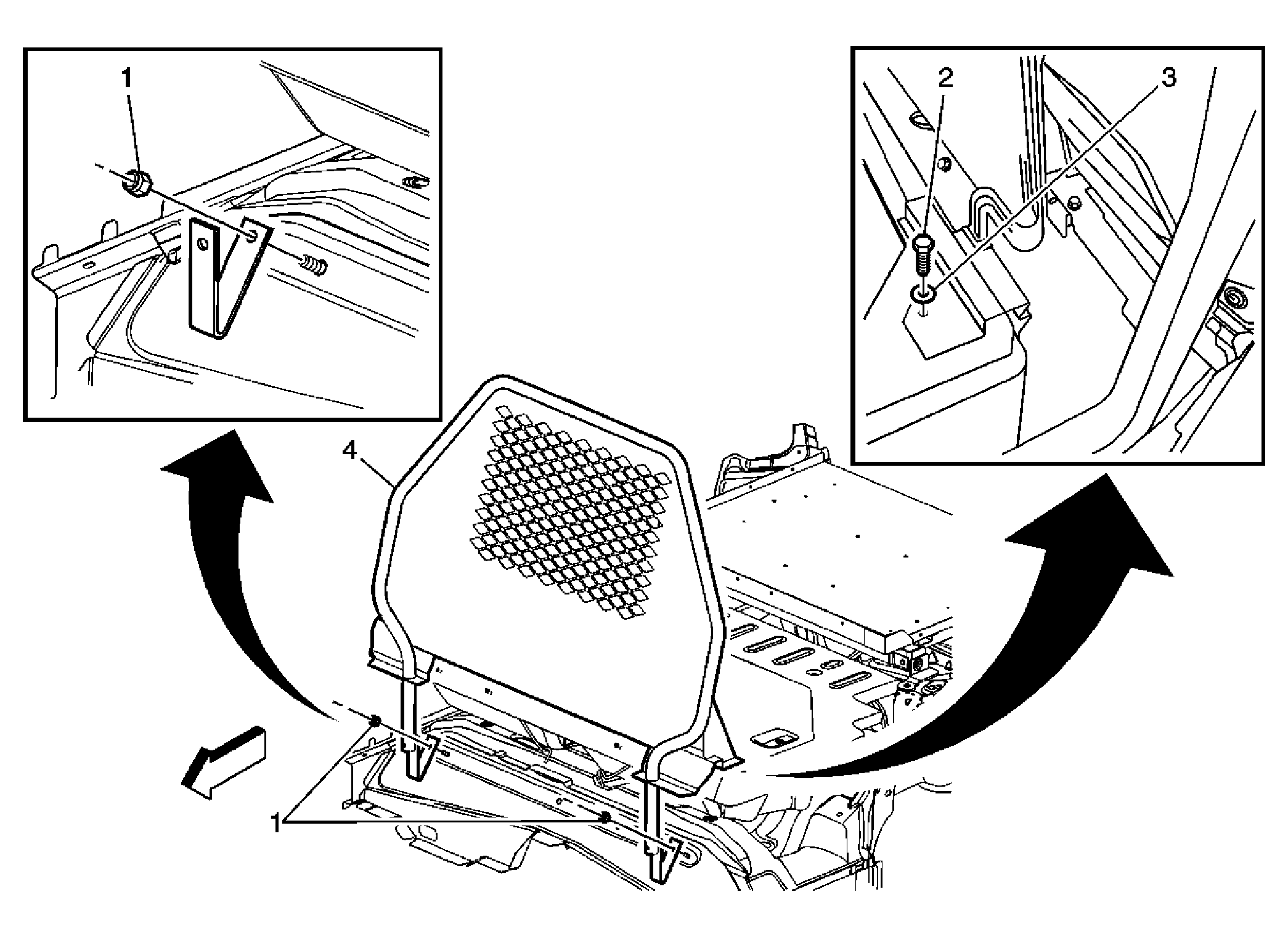

| Callout | Component Name |
|---|---|
| 1 | Cargo Partition Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 45 N.m (33 lb ft) |
| 2 | Cargo Partition Fastener (Qty: 2) Tighten: 24 N.m (18 lb ft) |
| 3 | Cargo Partition Washer (Qty: 2) |
| 4 | Cargo Partition Assembly |
