BCM Power, Ground and Serial Data Wiring Schematics

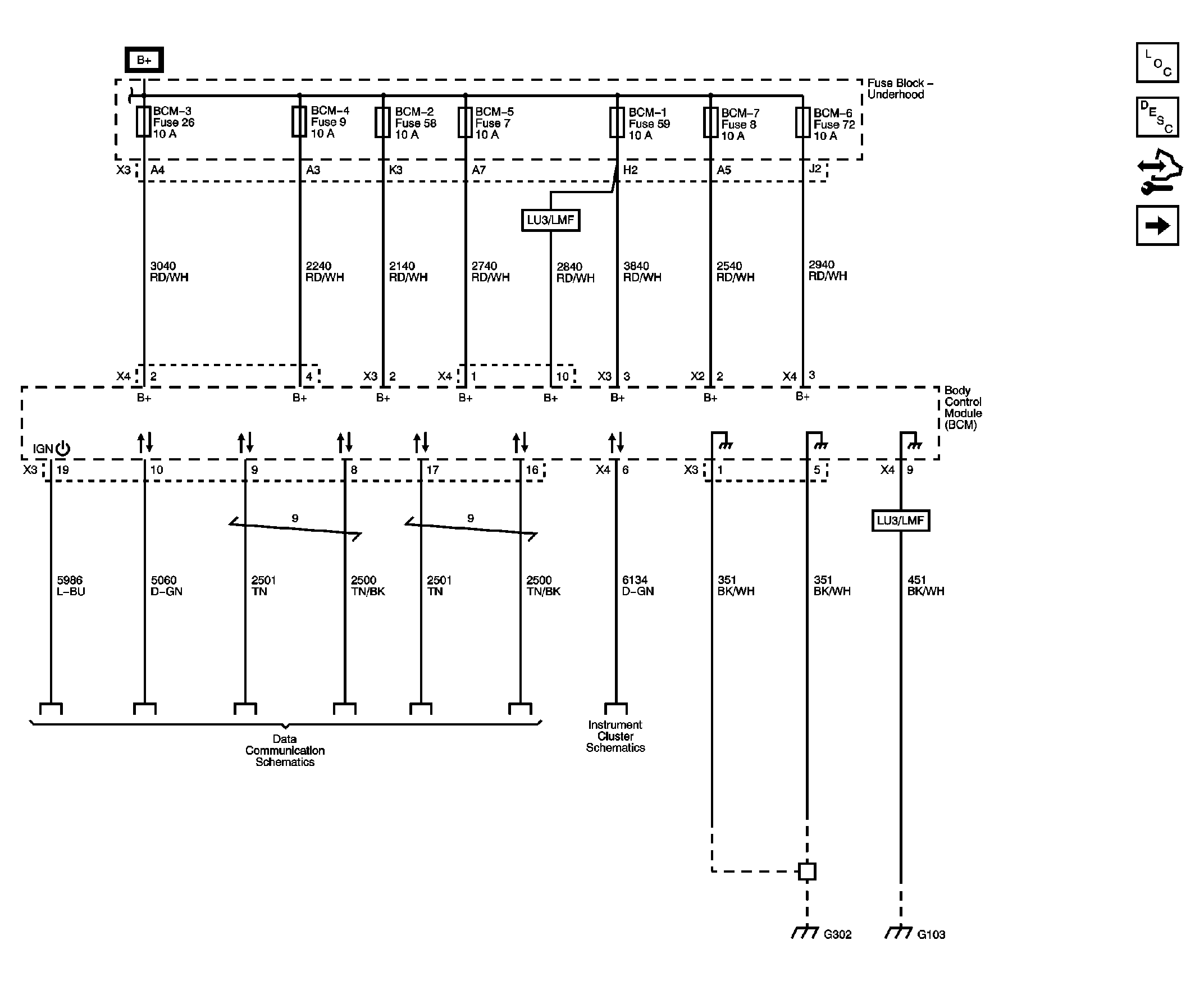

Fig 1: BCM Power, Ground and Serial Data Wiring Schematics

GM2473263

Courtesy of GENERAL MOTORS CORP.
