Power Steering Schematics

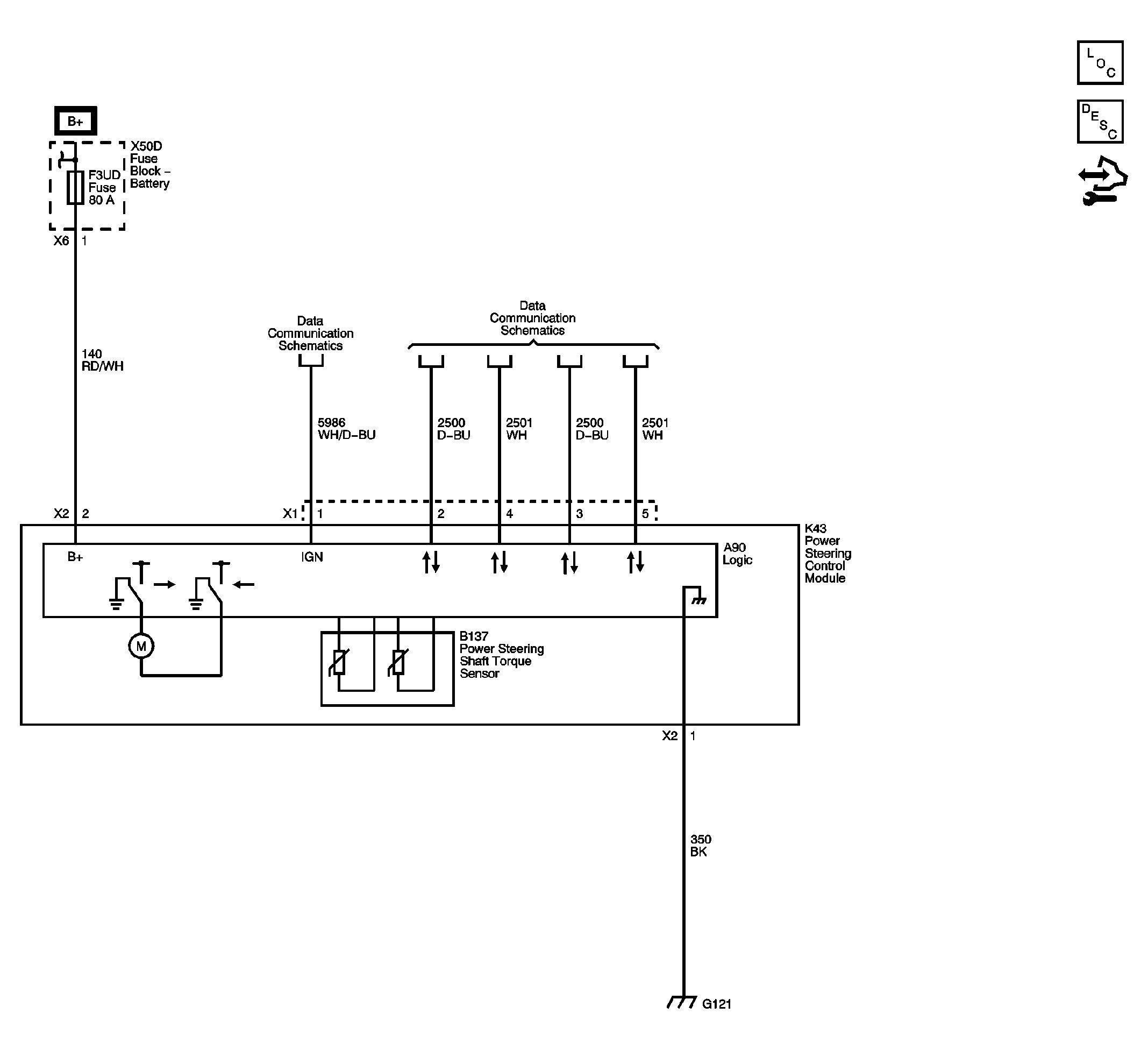

Fig 1: Power Steering Schematics

GM2461684

Courtesy of GENERAL MOTORS CORP.
