Home >> Chevrolet >> 2011 >> Cruze LS, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Wiring Schematics >> Immobilizer System Wiring Schematics

Immobilizer System Wiring Schematics

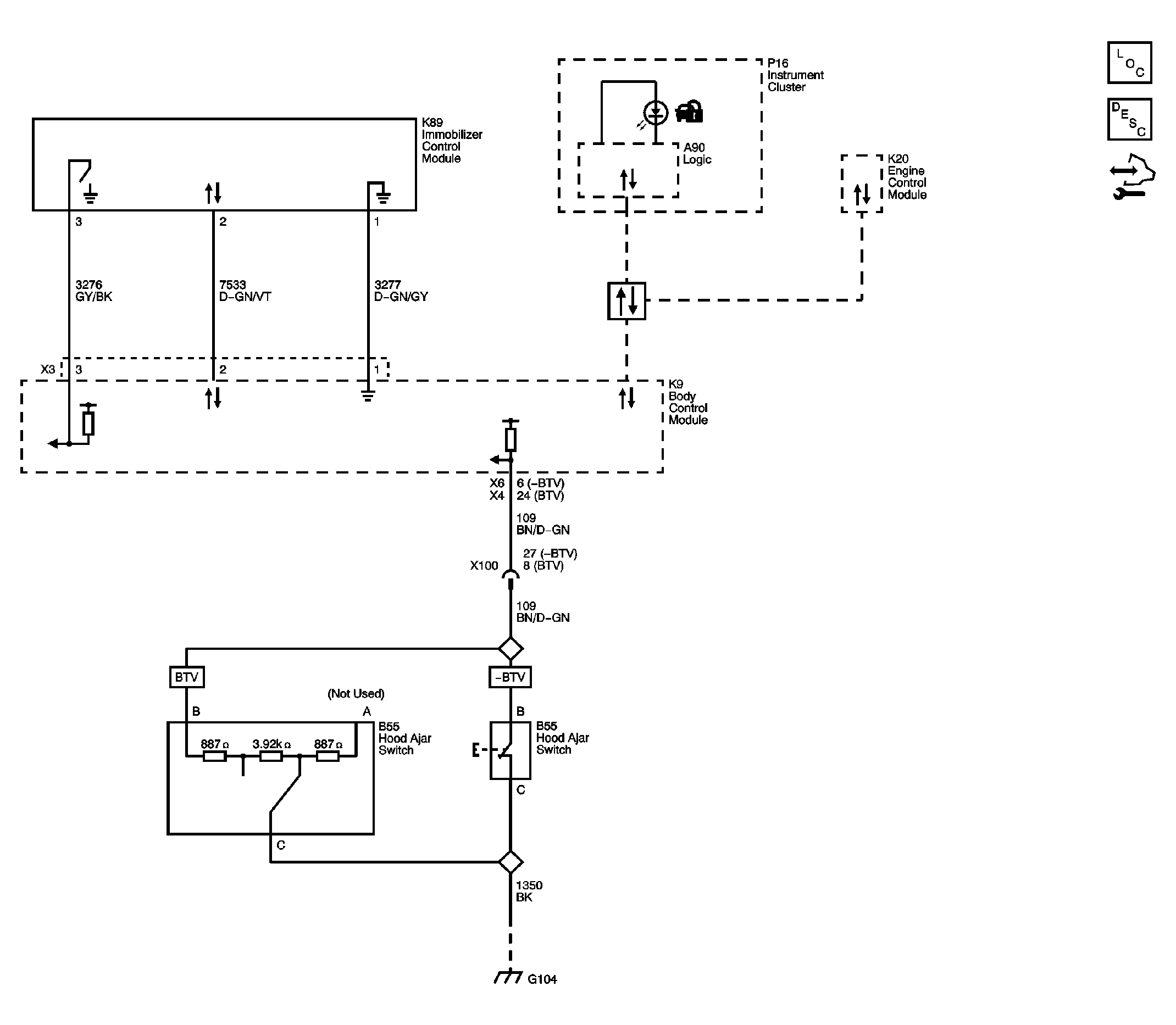

Fig 1: Immobilizer System Wiring Schematic

GM2461663

Courtesy of GENERAL MOTORS CORP.
