Release Systems Wiring Schematics

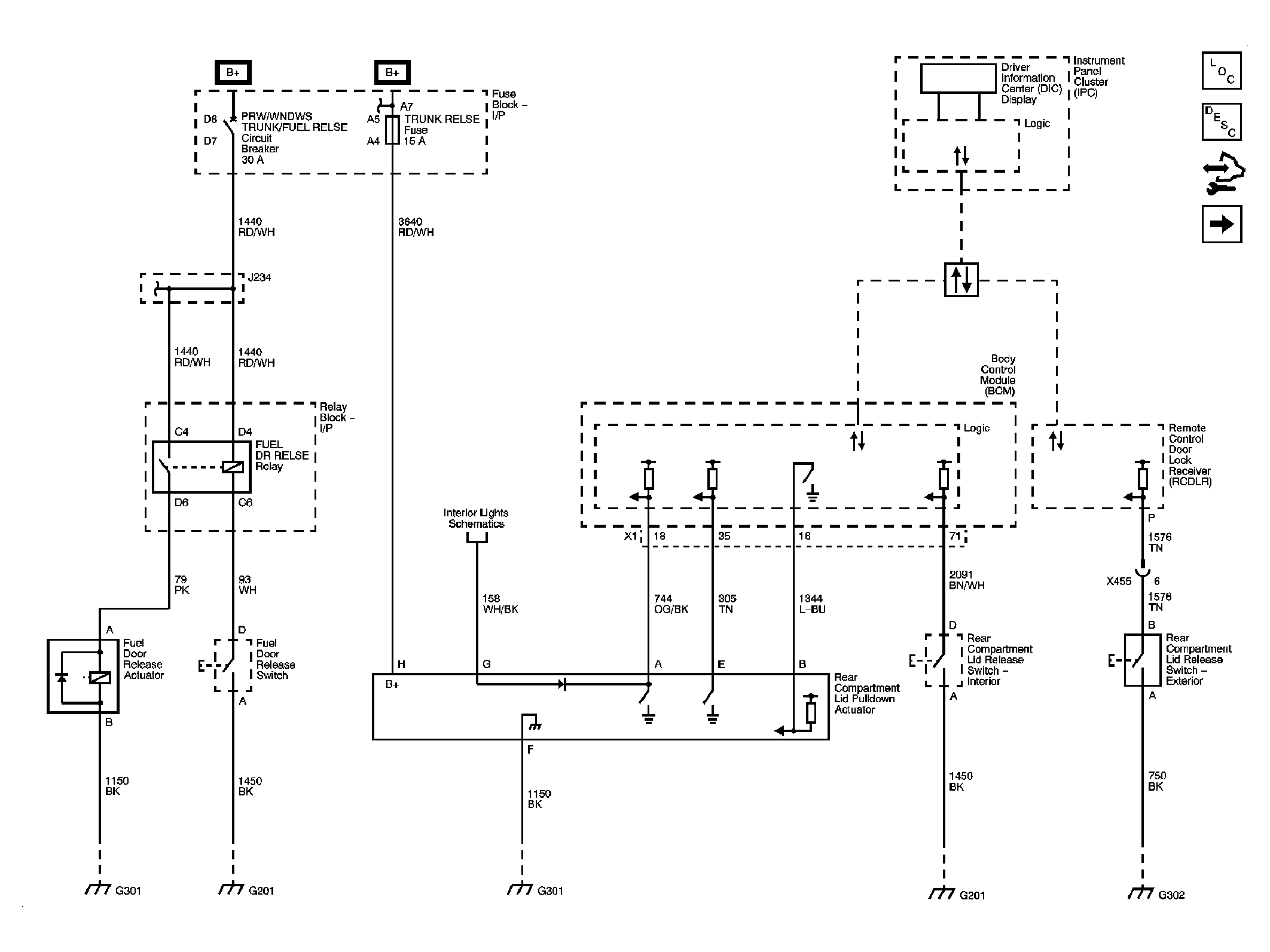

Fig 1: Except C05 or CM7 Wiring Schematic

GM2400404

Courtesy of GENERAL MOTORS CORP.

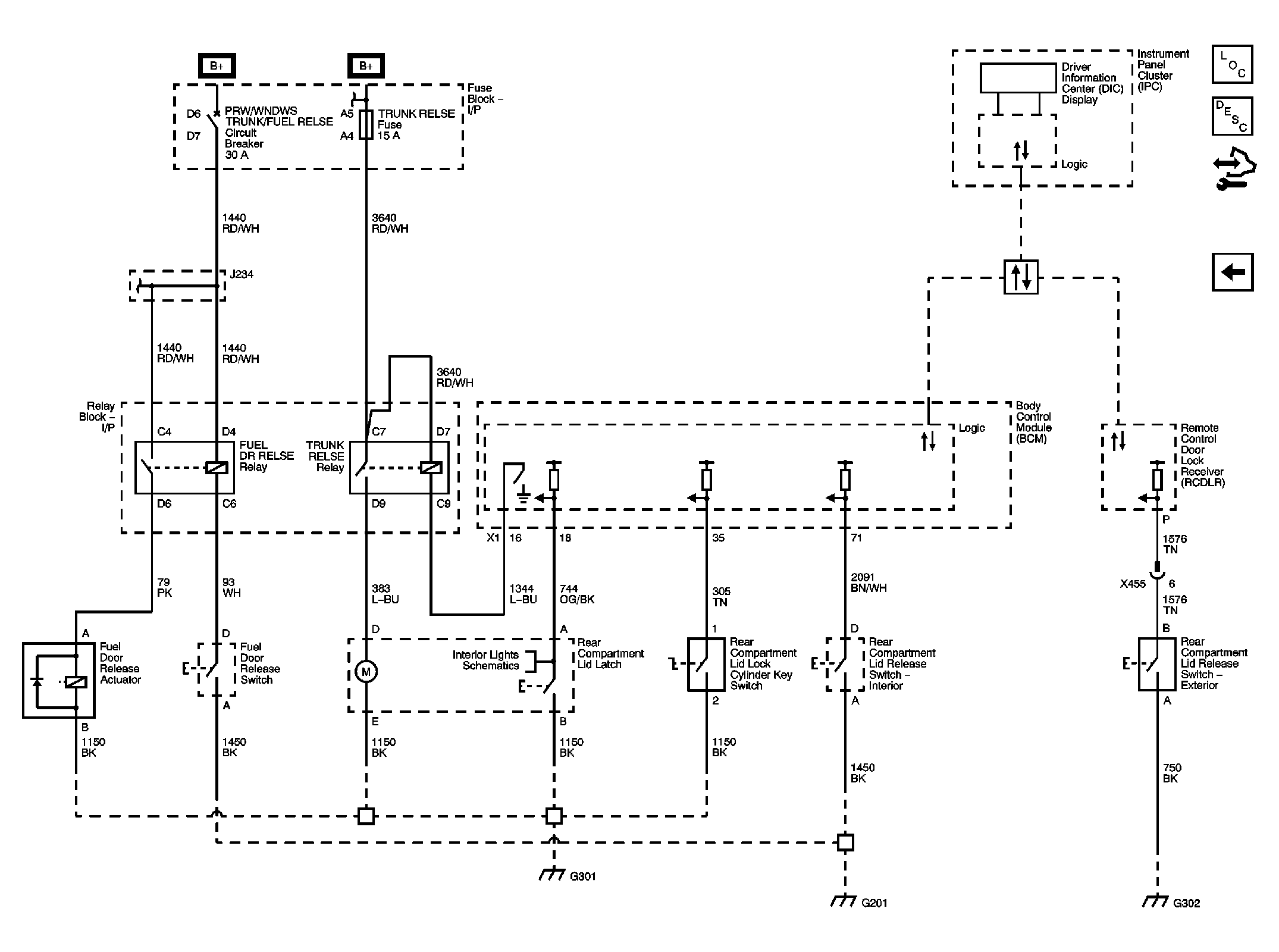

Fig 2: C05 or CM7 Wiring Schematic

GM2400405

Courtesy of GENERAL MOTORS CORP.
