Front of Engine Compartment Components (LGH)

Front of Engine Compartment Components (LGH)

Component Name Callout
Charge Air Cooler Outlet Temperature Sensor 1
Engine Coolant Level Switch 2
Battery 3
Vacuum Pump 4
A/C Low Pressure Switch (C60) 5
X142 6

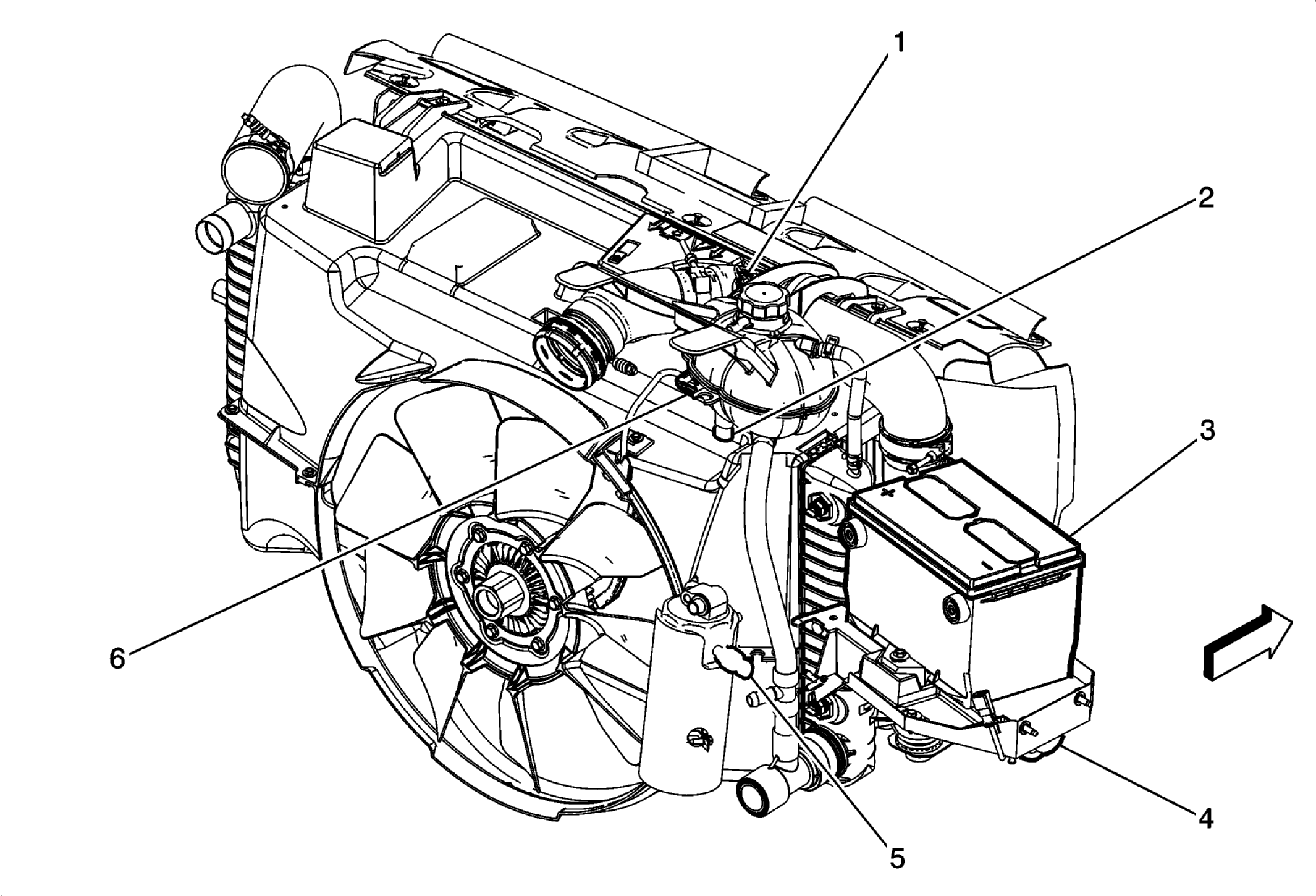

Fig 1: Front Of Engine Compartment (LGH)
GM2406203Courtesy of GENERAL MOTORS CORP.
