Powertrain Expansion Bus (LGH) Wiring Schematics

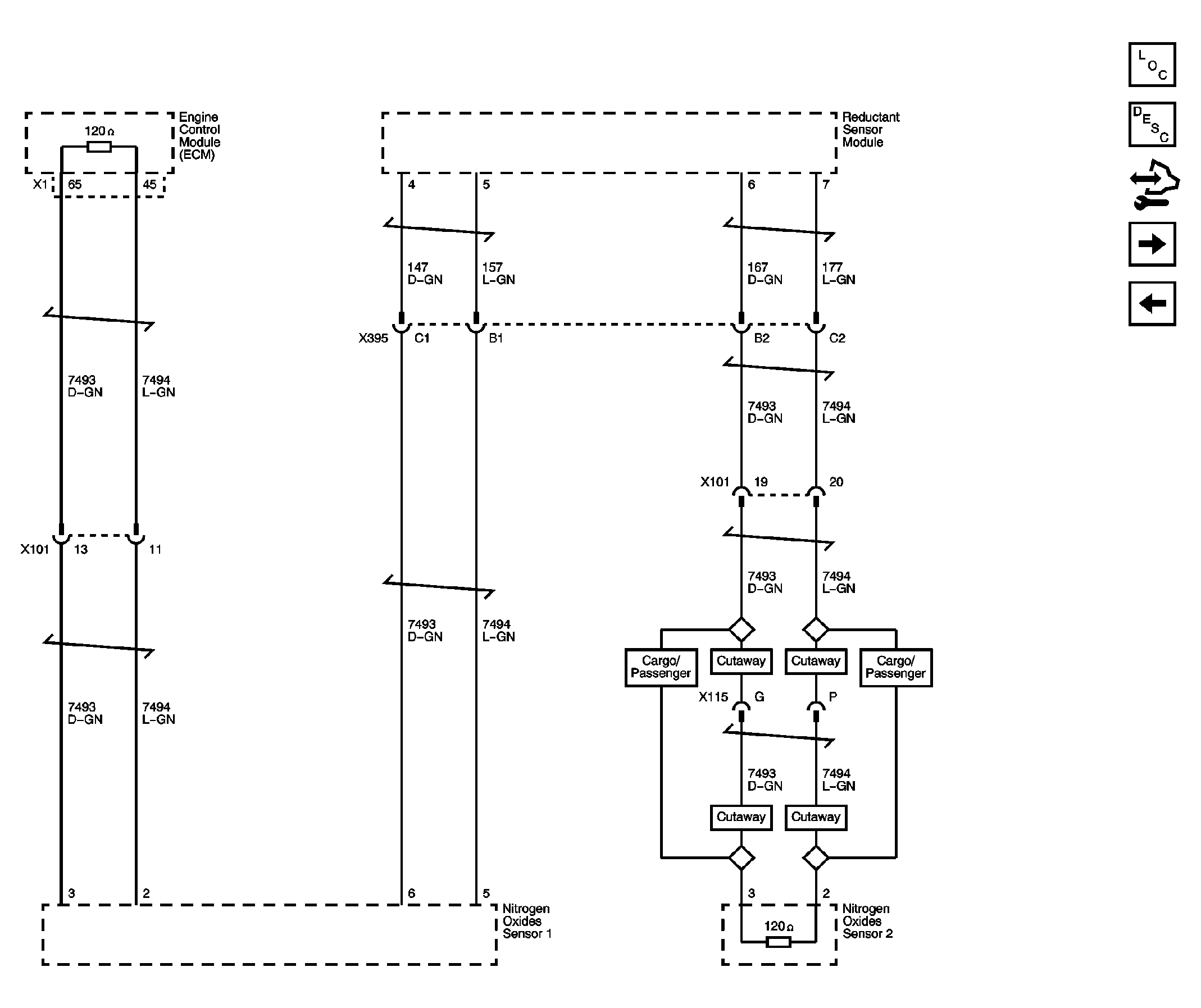

Fig 1: Powertrain Expansion Bus (LGH) Wiring Schematics

GM2473312

Courtesy of GENERAL MOTORS CORP.
