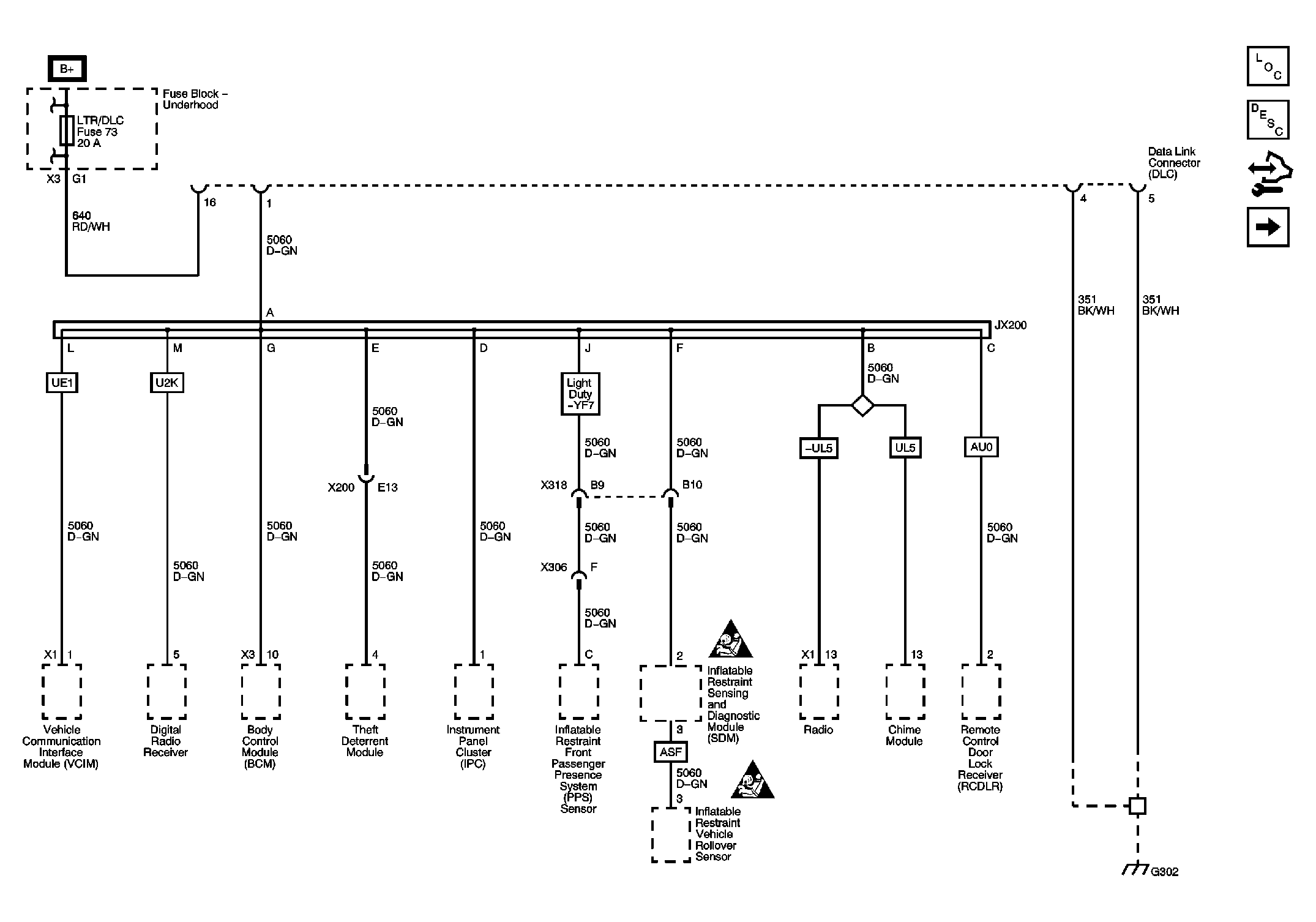

Home >> Chevrolet >> 2011 >> Chevy Express G2500, Van Cargo Extended, 6.6 L >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Low Speed GMLAN Wiring Schematics
