Nitrogen Oxide Sensor Replacement - Position 2
Nitrogen Oxide Sensor Replacement - Position 2

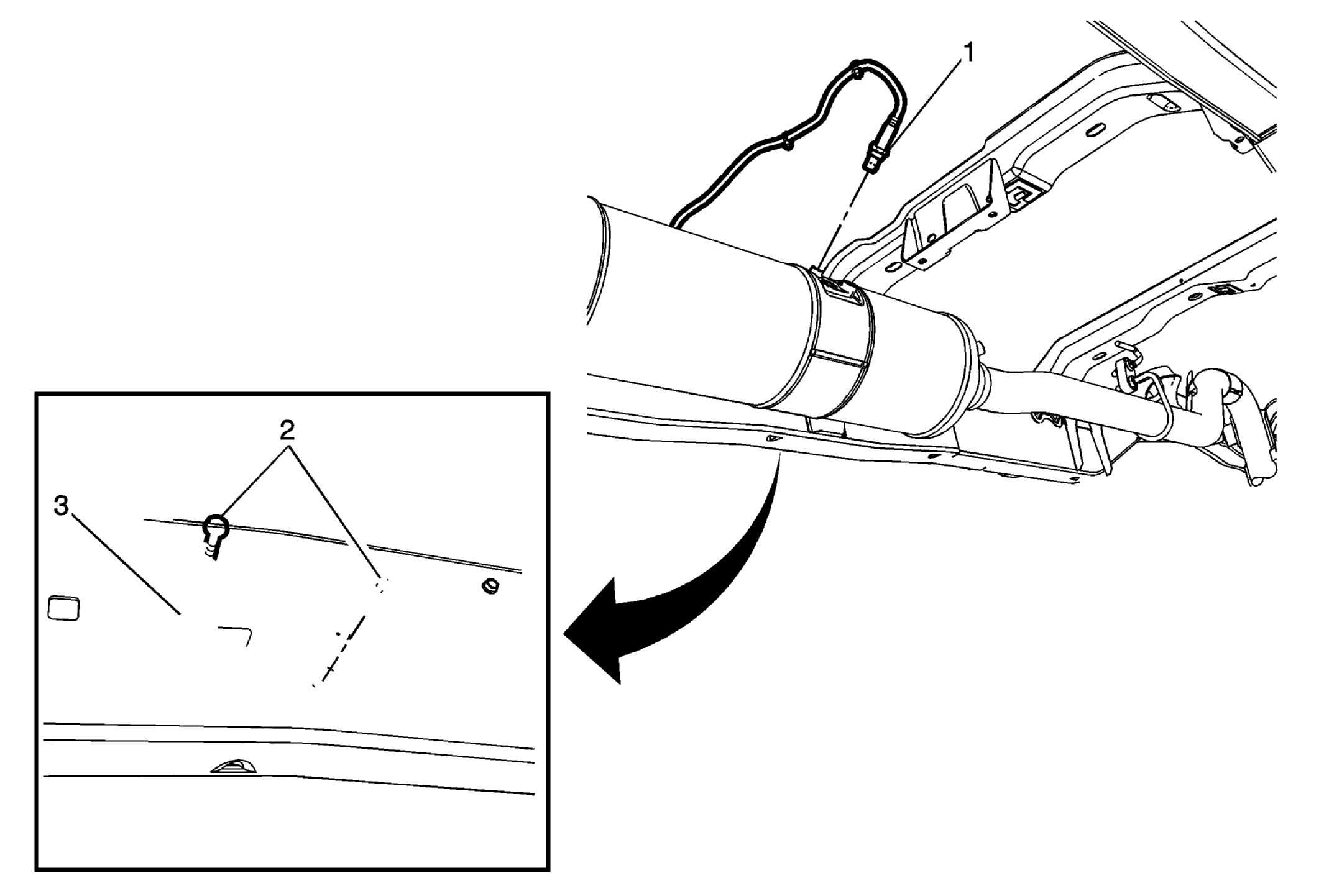

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Nitrogen Oxide Sensor
CAUTION:
Refer to Fastener Caution . Procedure If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 45 N.m (33 lb ft) |
| 2 | Nitrogen Oxide Sensor Module Fastener (Qty: 2) Tighten 10 N.m (89 lb in) |
| 3 | Nitrogen Oxide Sensor Module Procedure Raise the nitrogen oxide sensor and module from the vehicle. |
