Intake Air Temperature (IAT) Sensor 2 Replacement

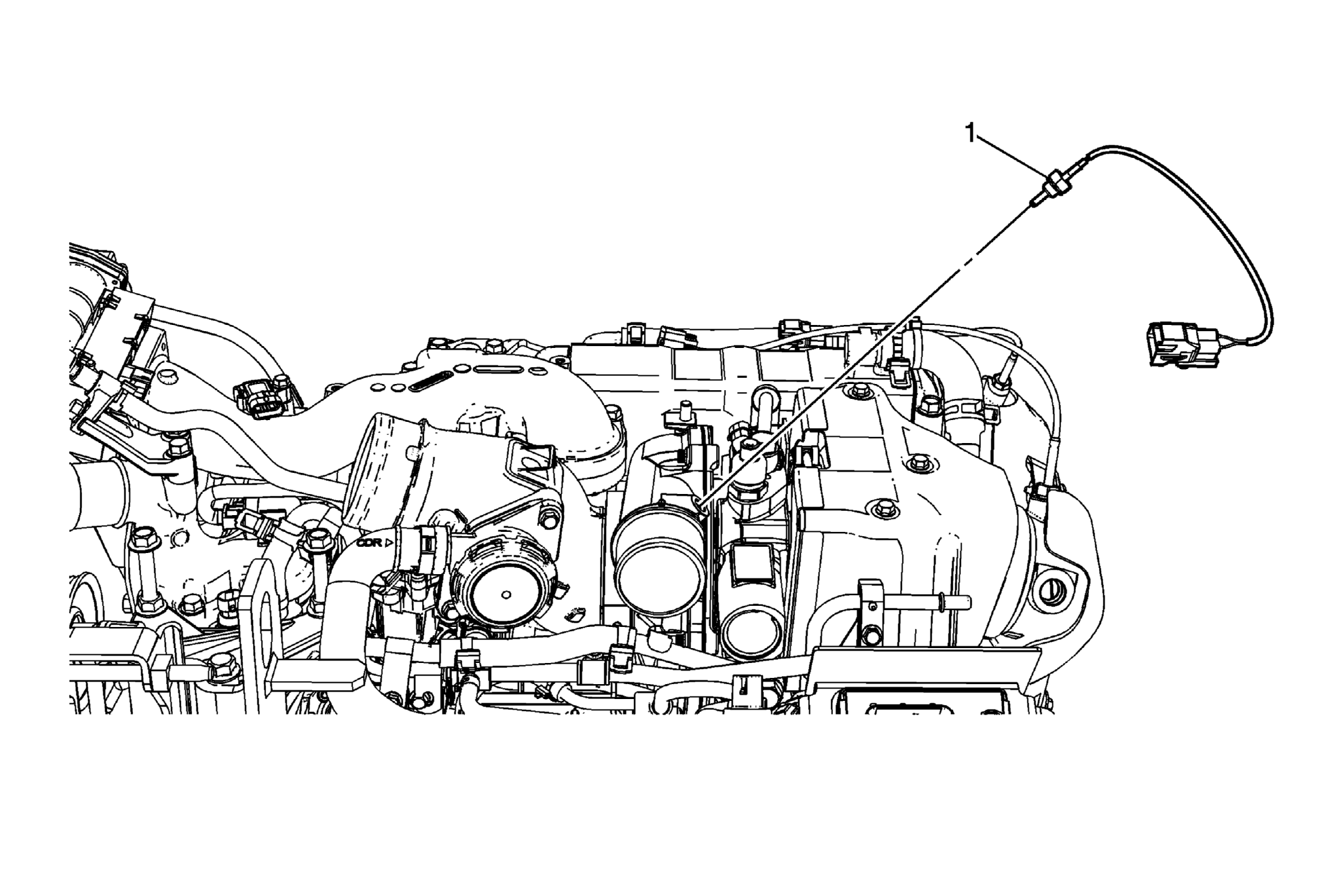

Fig 1: Intake Air Temperature (IAT) Sensor 2

Courtesy of GENERAL MOTORS CORP.

Intake Air Temperature (IAT) Sensor 2 Replacement

Callout	Component Name
Preliminary Procedure  Remove the engine cover. Refer to Engine Cover Replacement .
1	Intake Air Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure  Disconnect the electrical connector. Tighten  25 N.m (18 lb ft)
