Installation Procedure

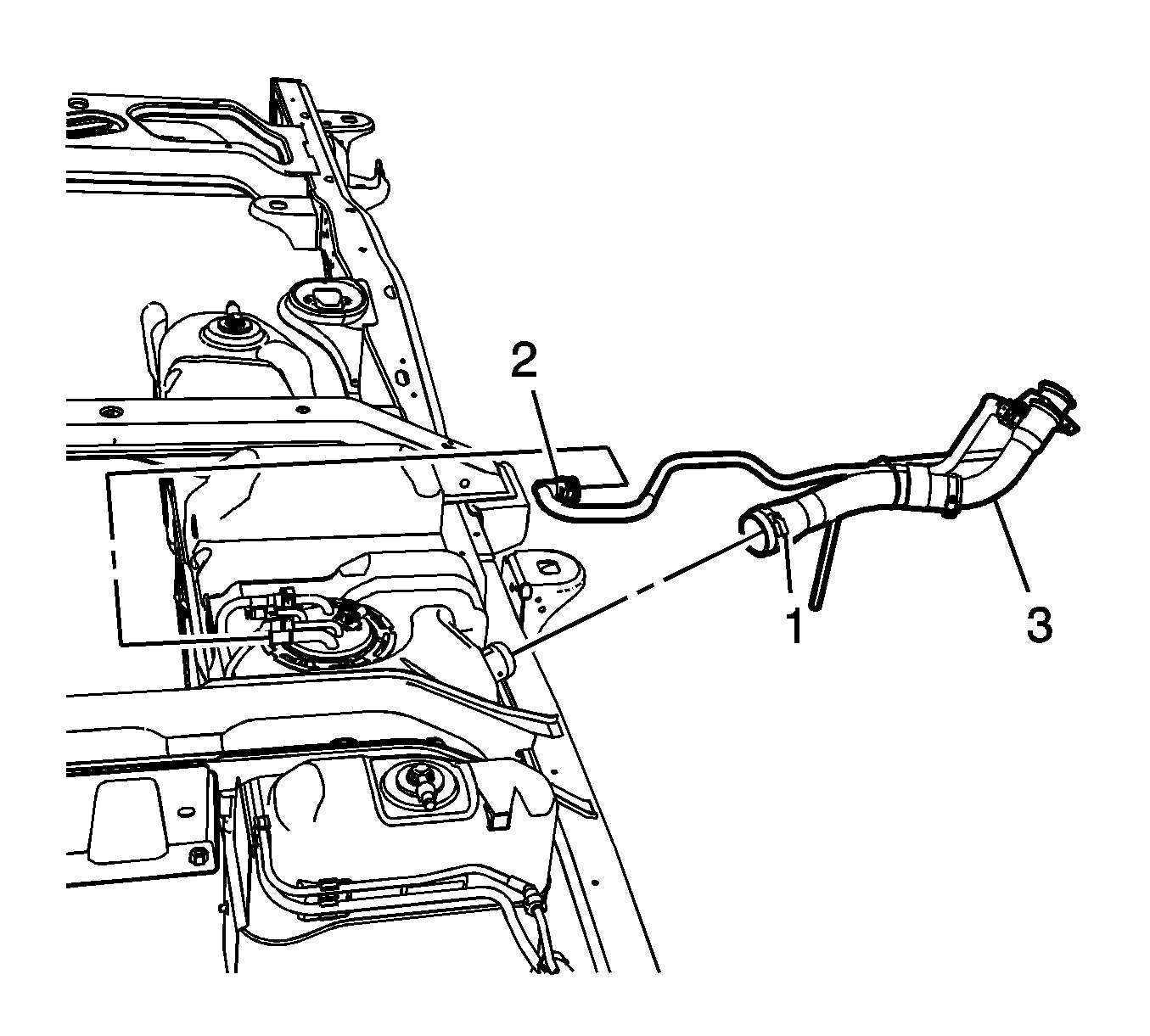

    Fig 1: UEL Tank Filler Hose
    GM2369211Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank filler hose (3).
  2. Connect the vent tube (2) to the fuel sender. Refer to Plastic Collar Quick Connect Fitting Service .
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the bottom filler pipe hose clamp (1) to 6 N.m (53 lb in).

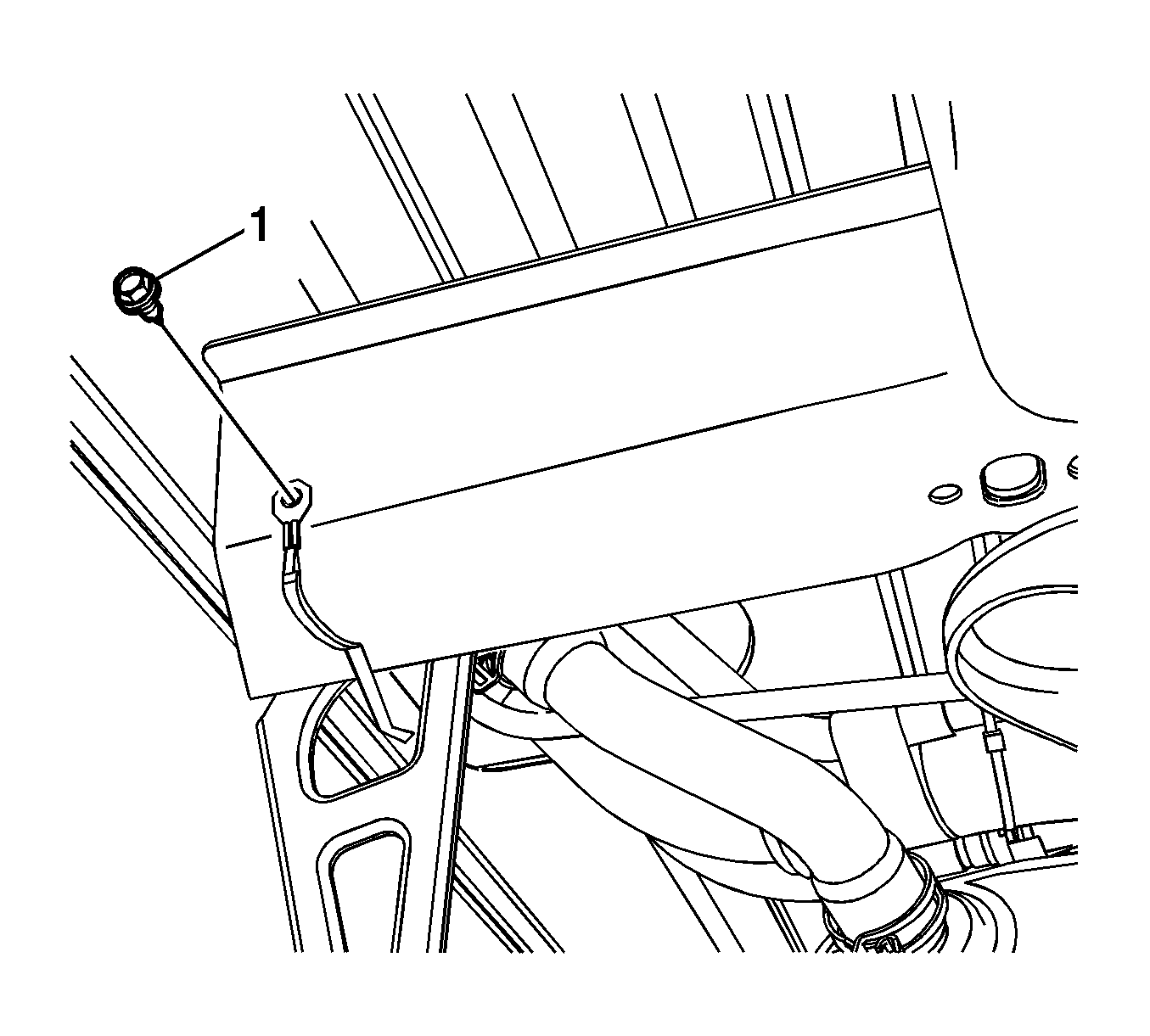

    4. Fig 2: Filler Hose Ground Fastener
    GM2369164Courtesy of GENERAL MOTORS CORP.
  4. Tighten the filler hose ground fastener (1) to 10 N.m (89 lb in).

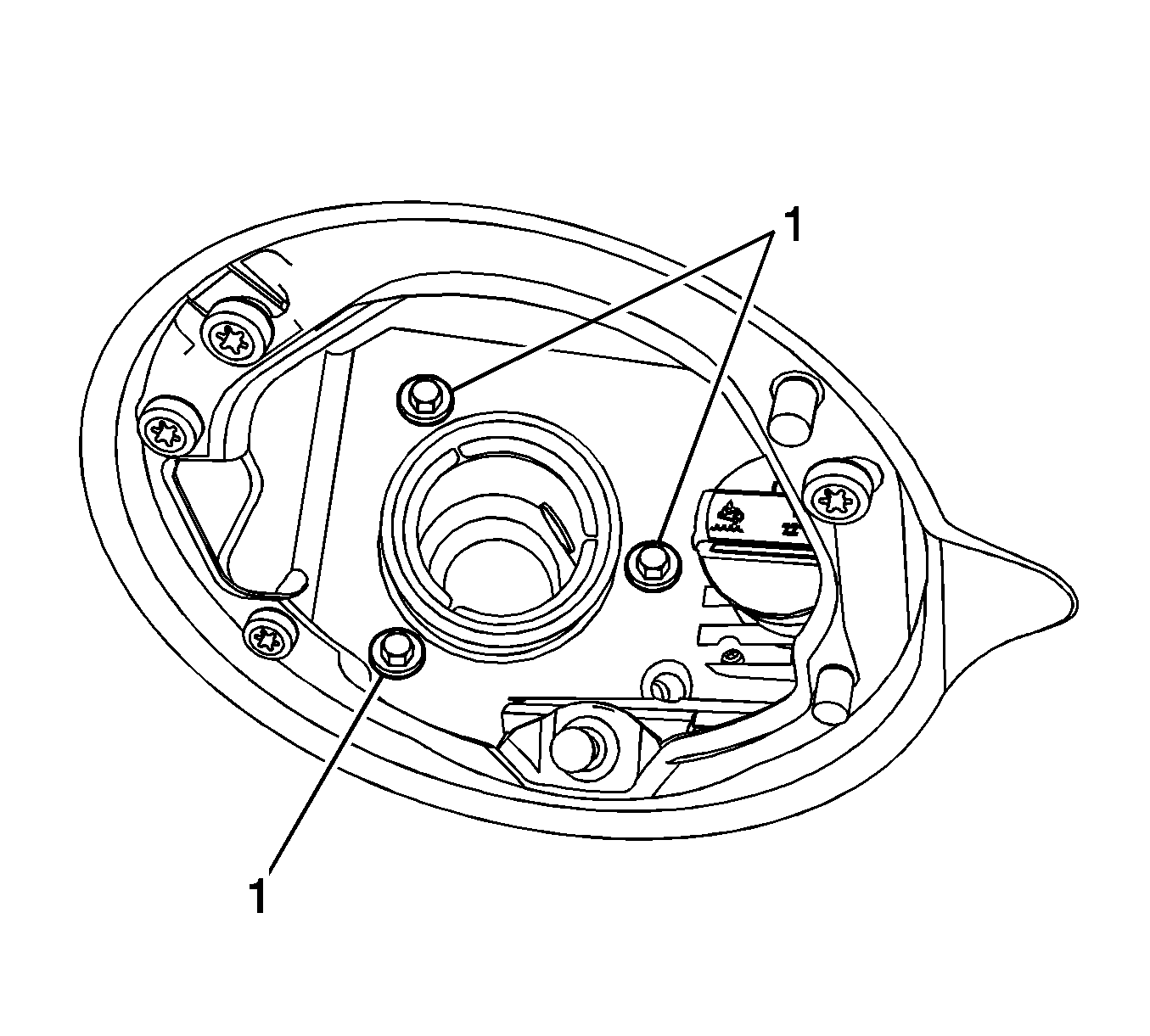

    5. Fig 3: Filler Housing Fasteners
    GM2369148Courtesy of GENERAL MOTORS CORP.
  5. Tighten the filler housing fasteners (1) to 10 N.m (89 lb in).
  6. Fill the fuel to the previous level.
