Fuel Pressure Relief Valve Replacement

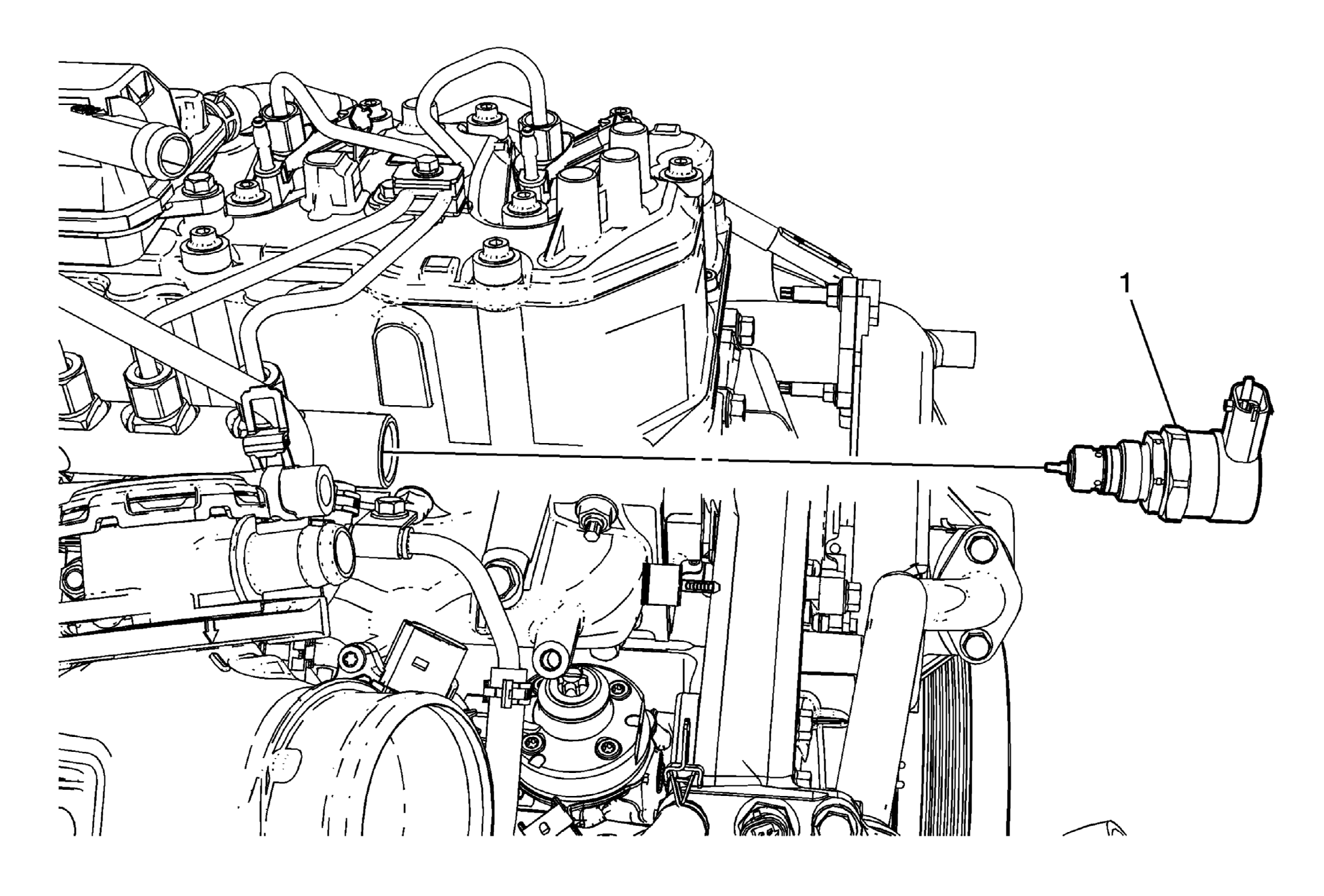

Fig 1: Fuel Pressure Relief Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement . Remove the positive crankcase ventilation tube regulator to separator. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Oil Separator to Oil Pan) , Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Regulator Valve to Separator) . Remove the fuel pipe bracket covering the relief valve.
1	Fuel Pressure Relief Valve CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. TIP: This component must be clocked correctly before being tightened. Tighten 100 N.m (74 lb ft)

Callout

Component Name

Preliminary Procedures

Fuel Pressure Relief Valve

CAUTION:

Procedure
Disconnect the electrical connector.
TIP: This component must be clocked correctly before being tightened.
Tighten
100 N.m (74 lb ft)
