Emission Reduction Fluid Tank Replacement
Emission Reduction Fluid Tank Replacement

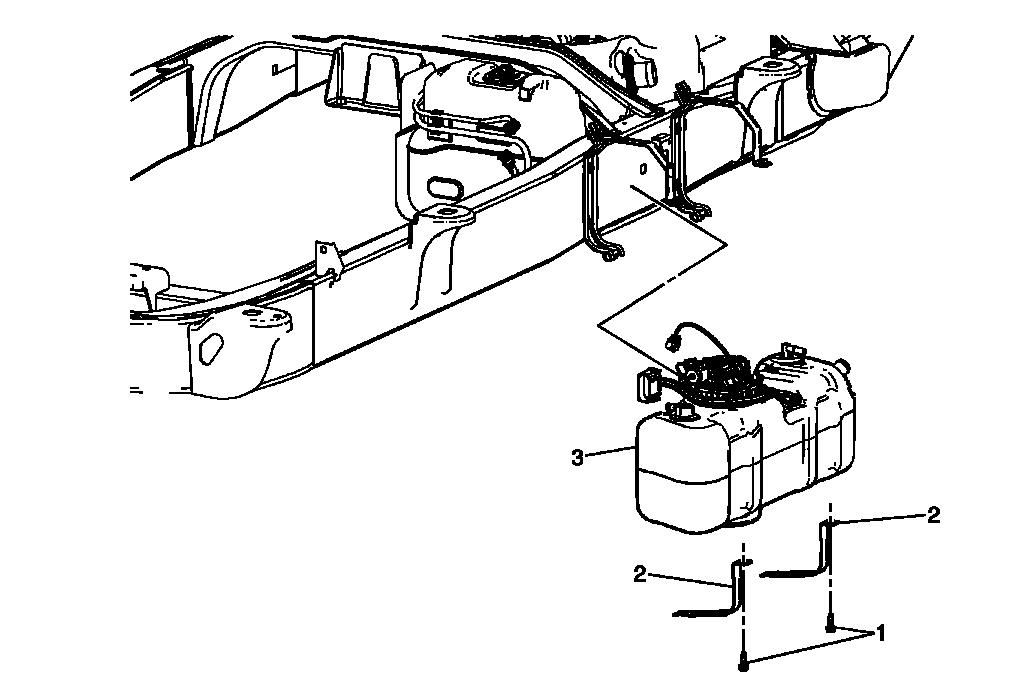

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the UREA fuel tank vent hose. Refer to Plastic Collar Quick Connect Fitting Service |
|
| 1 | Emission Reduction Fluid Tank Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 30 N.m (22 lb ft) |
| 2 | UREA Tank Straps |
| 3 | Emission Reduction Fluid Tank Procedure Disconnect the electrical connectors. |
