Charge Air Temperature Sensor Replacement (Outlet Pipe)

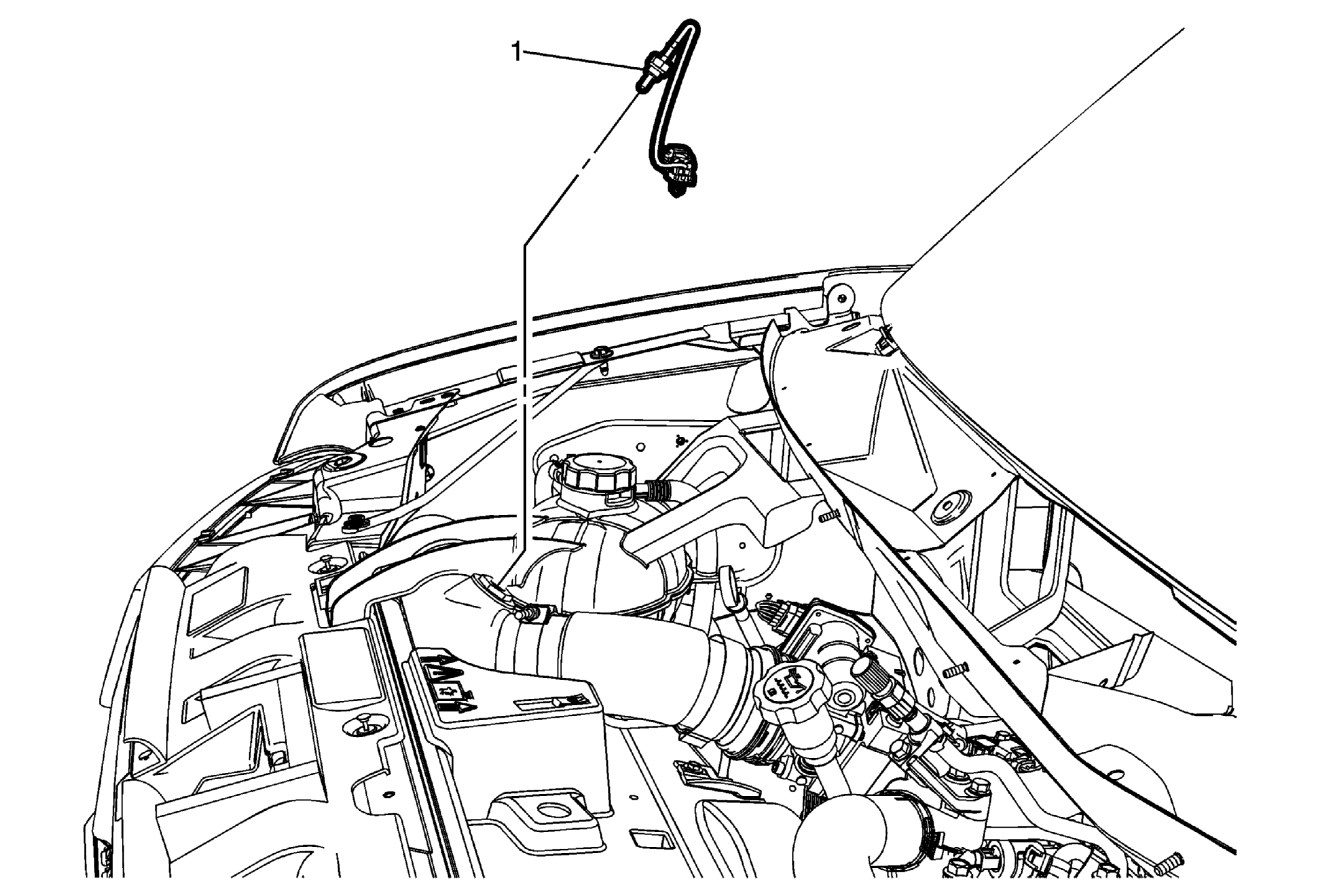

Fig 1: Charge Air Temperature Sensor (Outlet Pipe)
GM2442490Courtesy of GENERAL MOTORS CORP.
Charge Air Temperature Sensor Replacement (Outlet Pipe)

Callout Component Name
1 Charge Air Temperature Sensor
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
