Home >> Chevrolet >> 2011 >> Chevy Express G2500, Van Cargo Extended, 6.6 L >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Secondary And Configurable Customer Control System >> Wiring Schematics >> Steering Wheel Secondary/Configurable Control Wiring Schematics >> Steering Wheel Secondary/Configurable Controls

Steering Wheel Secondary/Configurable Controls

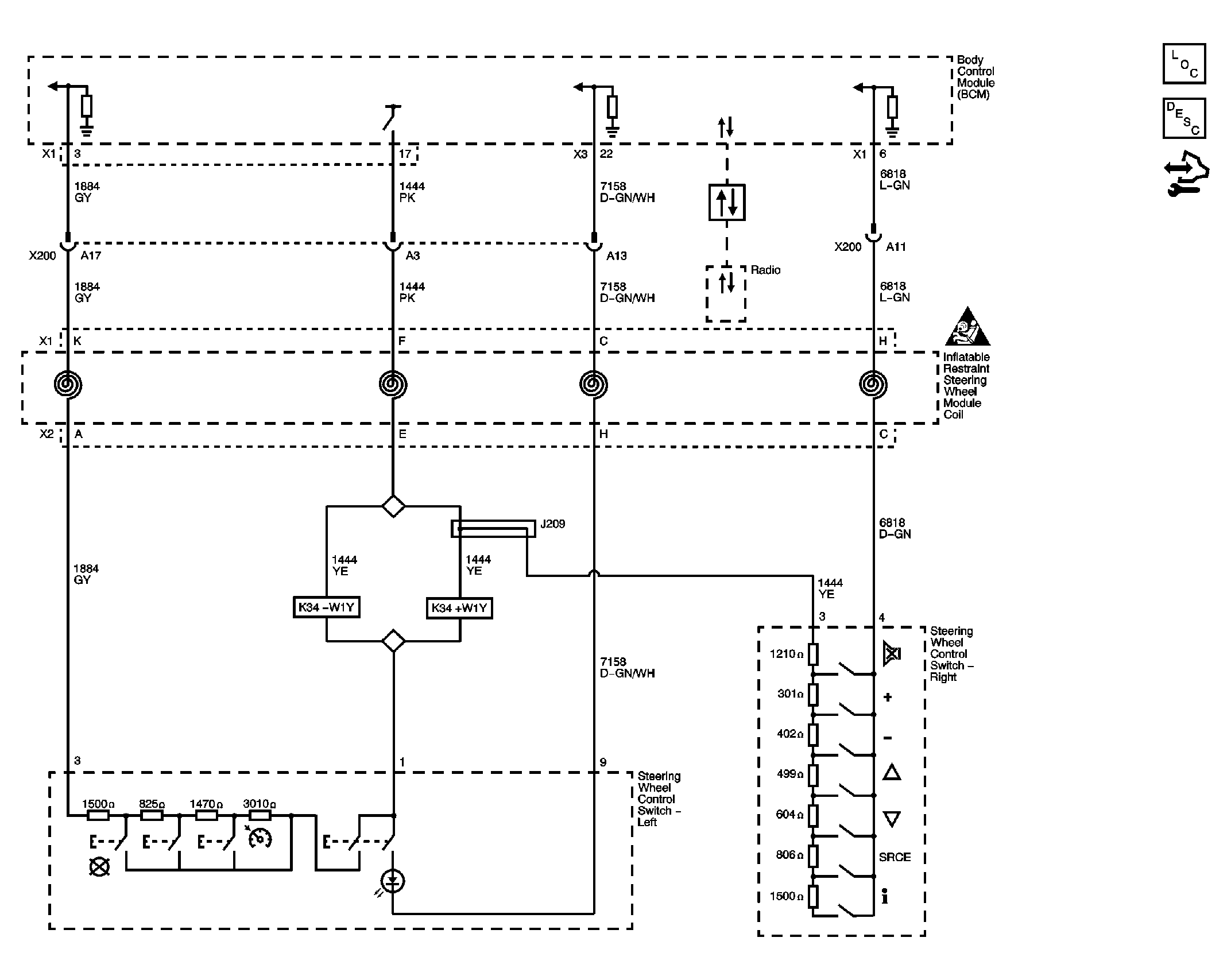

Fig 1: Steering Wheel Secondary/Configurable Controls Wiring Schematic

GM2475881

Courtesy of GENERAL MOTORS CORP.
