Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

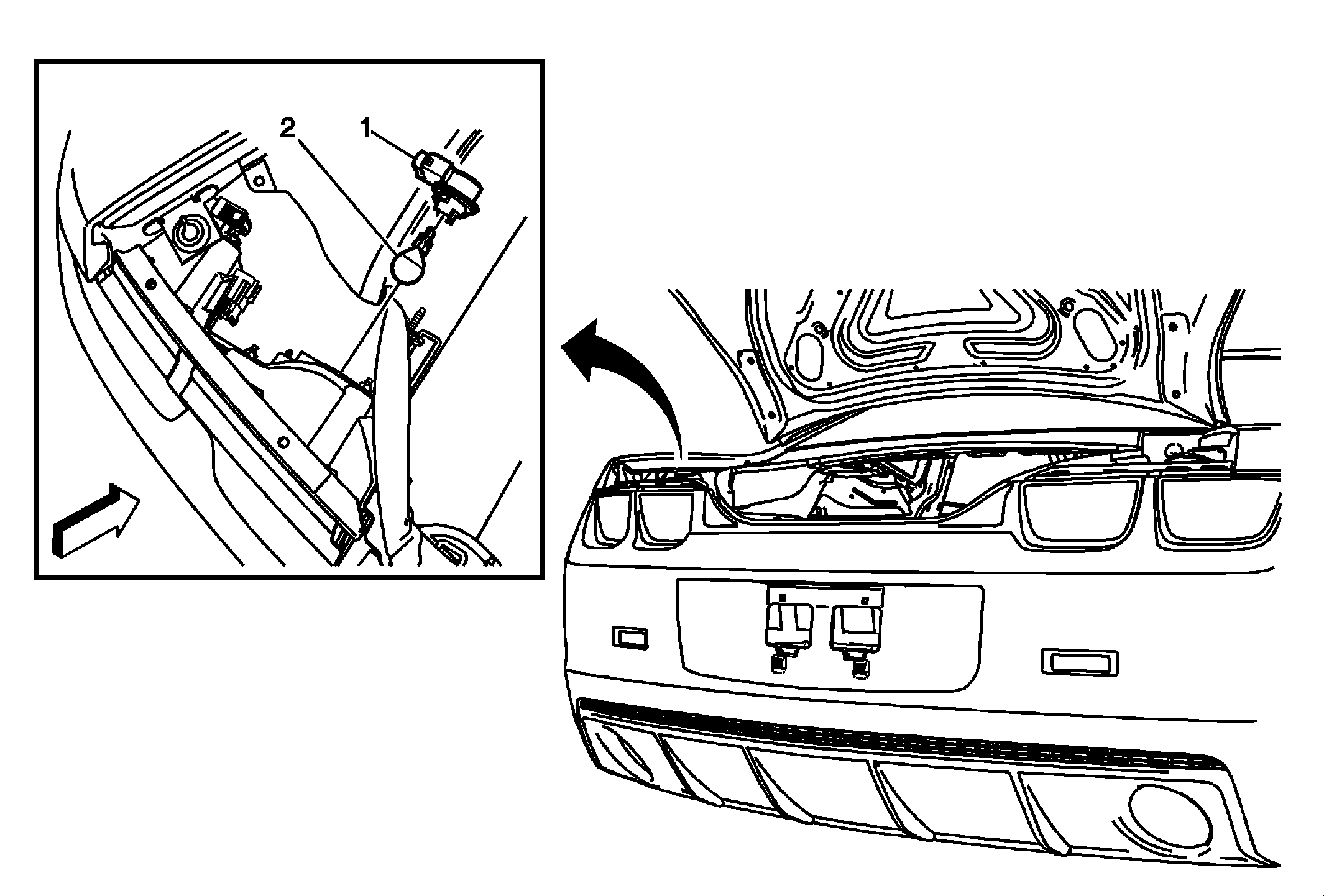

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the tail lamp closeout filler panel. Refer to Tail Lamp Closeout Filler Replacement .
1	Tail Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector from the bulb socket prior to removing the socket. Rotate the bulb socket counter-clockwise and remove from the tail lamp assembly.
2	Tail Lamp Bulb Tip: Pull the tail lamp bulb out of the tail lamp bulb electrical socket.

Callout

Component Name

Preliminary Procedure:
Remove the tail lamp closeout filler panel. Refer to Tail Lamp Closeout Filler Replacement .

Tail Lamp Bulb Socket

WARNING: Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector from the bulb socket prior to removing the socket.
Rotate the bulb socket counter-clockwise and remove from the tail lamp assembly.

Tail Lamp Bulb
Tip: Pull the tail lamp bulb out of the tail lamp bulb electrical socket.
